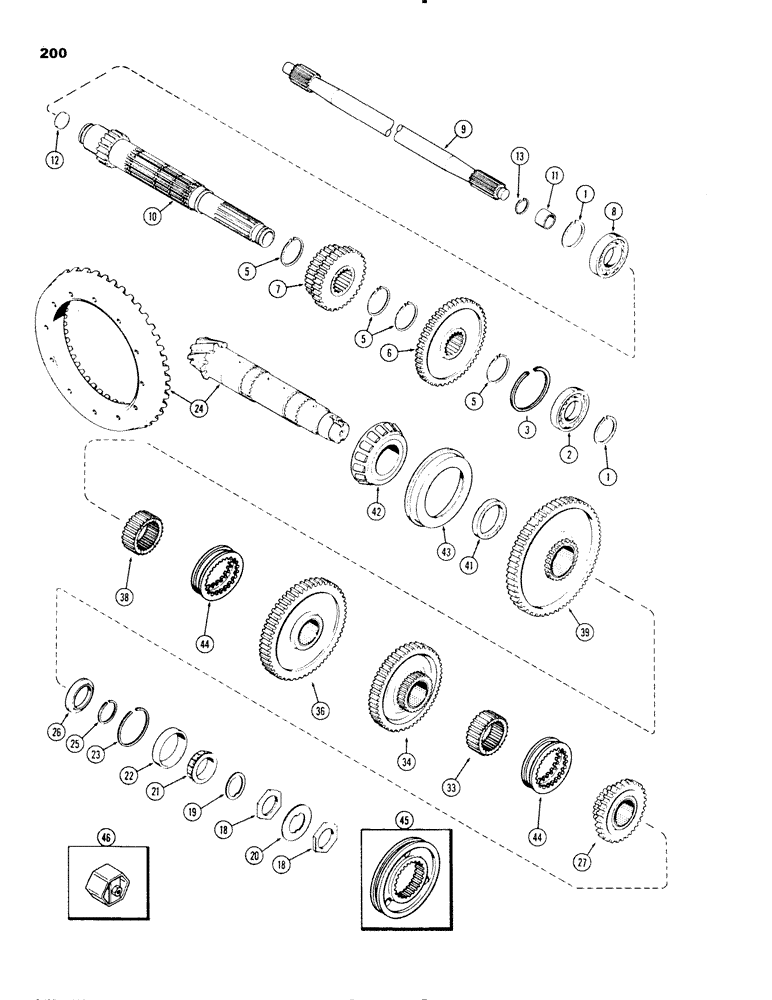

Запчасти Case IH 1270 (200) - PLANETARY OUTPUT SHAFT (06) - POWER TRAIN

1

39326

SNAP RING,#215, Ext

Ring, Snap, , bearing #215, Ext

2шт.

2

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, output shaft

1шт.

3

REF

INSTRUCTION

RING - retaining, See Figure: 194

1шт.

5

A63115

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A63114

GEAR

- driver, 4th (49T)

1шт.

7

A63113

GEAR

- driver, 2nd & 3rd (26T & 34T)

1шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, planetary shaft

1шт.

9

REF

INSTRUCTION

SHAFT - input, power & PTO, See Figures: 192, 194

1шт.

10

REF

INSTRUCTION

SHAFT ASSEMBLY - planetary output, See Figures: 192, 194

1шт.

12

41-1024

PLUG,Cup, 1 1/2"

- Mercury (1-1/2" dia.) (Used w/o P.T.O.)

1шт.

13

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , plug (used w/o P.T.O.) 1.50", Int, #150

1шт.

18

A63156

LOCK NUT

- lock, spiral bevel pinion, countershaft

2шт.

19

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - thrust, bearing, countershaft

1шт.

20

A63155

LOCK WASHER

- lock, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, counter shaft, front (2-11/64" OD)

1шт.

22

A61446

BEARING CUP

CUP - countershaft, front (3-35/64" OD)

1шт.

23

A31253

RING, SNAP

RING - snap, internal, countershaft

1шт.

24

A67082

GEAR

SET - pinion & spiral bevel (matched set) (1st used trans. ser. no. 2476547) (Used w/A67079 washer), countershaft

1шт.

24

A66888

GEAR-SET

GEAR SET - pinion & spiral bevel (matched set) (Used prior to trans. ser. no. 2476547) (Used w/A63125 washer), countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

RING - collar retaining, countershaft

1шт.

26

A63154

COLLAR

- pinion locating, countershaft

1шт.

27

A64423

GEAR

ASSEMBLY - driven (4th) (34T) (Incl. bushing), countershaft

1шт.

33

A64422

SHAFT

HUB - shaft, splined pinion (3rd & 4th), countershaft

1шт.

34

A64420

GEAR

ASSEMBLY - driven (3rd) (50T) (Incl. bushing), countershaft

1шт.

36

A150504

GEAR

ASSEMBLY - driven (2nd) (58T) (Incl. bushing) (Replaces A64418), countershaft

1шт.

38

A64416

HUB

- shaft, splined pinion, (1st & 2nd), countershaft

1шт.

39

A64414

GEAR

ASSEMBLY - (1st) (17T) (Incl. bushing), countershaft

1шт.

41

A67079

WASHER, THRUST

WASHER - thrust (1/4" thick) (1st used trans. ser. no. 2476547) (used w/A67082 gear set), countershaft

1шт.

41

A63125

WASHER

- thrust (1/2" thick) (Used prior to trans. ser. no. 2476547) (Used w/A66888 gear set), countershaft

1шт.

42

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - countershaft rear bearing (3" OD)

1шт.

43

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP - countershaft rear bearing (7-1/16" OD)

1шт.

44

A138190

COLLAR

- sliding (1st used trans. ser. no. 10028201), countershaft

2шт.

45

A66107

COLLAR

- sliding (Used prior trans. ser. no. 10028201), countershaft

2шт.
