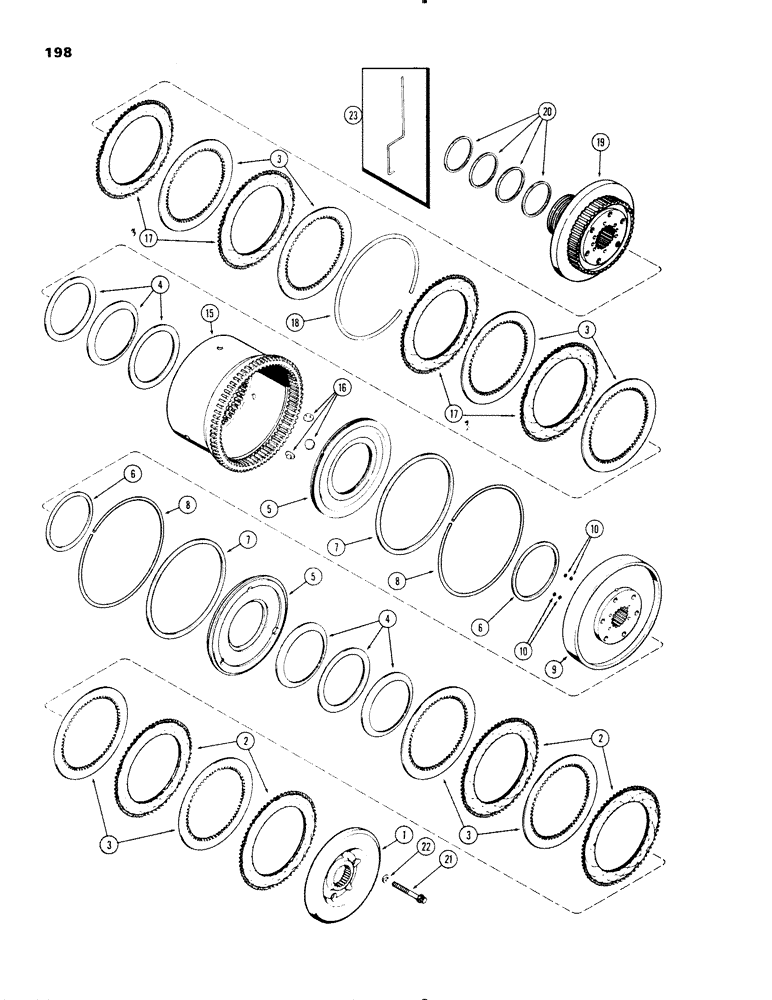

Запчасти Case IH 1270 (198) - (C2) AND (C3) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A63098

HUB

- (C2) clutch

1шт.

2

A61981

PLATE

- friction, (C2) and (C3) clutches

8шт.

3

A151029

PLATE

- steel, (C2) and (C3) clutches (Replaces 58099)

8шт.

4

A58094

SPRING

- return, (C2) and (C3) clutches

6шт.

5

A66359

PISTON

- (C2) and (C3) clutches (Order A146670 piston, A146682 seal A146683 seal, A150753 o-ring and A150754 o-ring)

2шт.

6

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston

2шт.

Part of Seal Kit P/N A42886

1шт.

7

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston

2шт.

Part of Seal Kit P/N A42886

1шт.

8

A62642

ELECTRICAL WIRE

WIRE - external seal

2шт.

Part of Seal Kit P/N A42886

1шт.

9

A148688

CARRIER

- piston (Replaces A64487)

1шт.

10

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - carrier oil seal (19/64 x 7/16 x 1/16")

4шт.

Part of Seal Kit P/N A42886

1шт.

15

A63101

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snpa, ring gear

1шт.

19

A63100

HUB

- (C3) clutch

1шт.

20

A58384

RING

- oil distributor

4шт.

21

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - hub (3/8 x 3" N.C. ferry hd.)

6шт.

22

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hub screw (7/16 x 3/4 x 1/32")

6шт.

A42886

SEAL KIT

- seal, Includes: Ref. 6 - 8 and 10, and 10 and 18-20 in Figure 188 and 28 and 30-32 in Figure 190

1шт.
