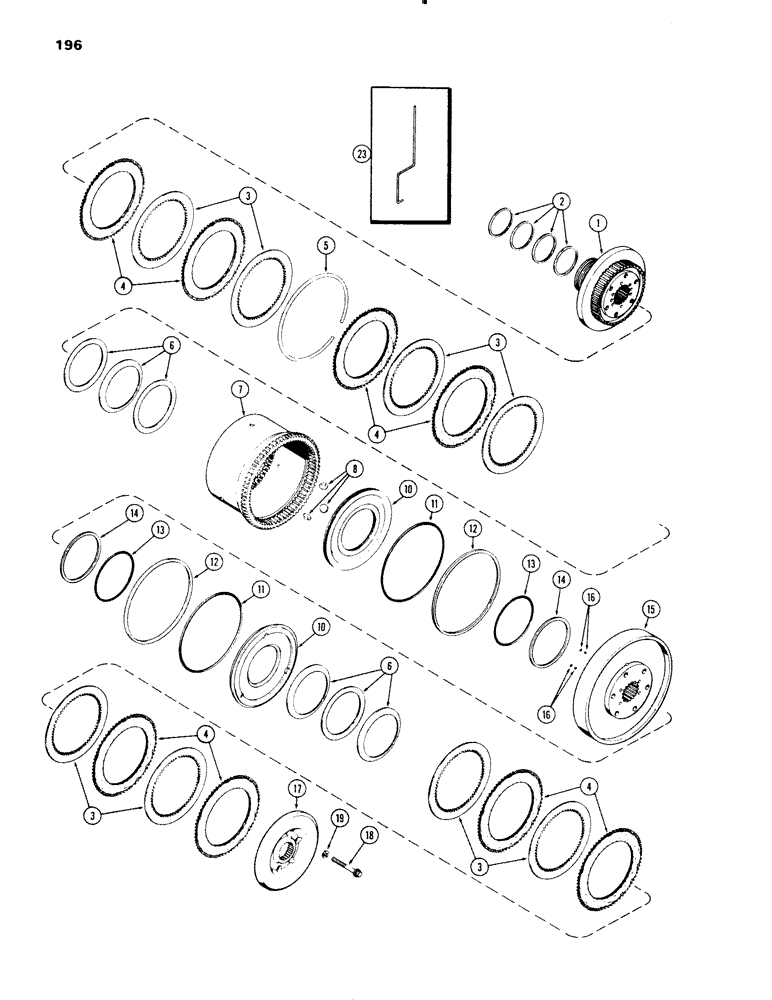

Запчасти Case IH 1270 (196) - (C2) AND (C3) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A63100

HUB

ASSEMBLY - (C3) clutch

1шт.

2

A58384

RING

- oil distributor

4шт.

3

A151029

PLATE

- steel, (C2) and (C3) clutches (Replaces 58089)

8шт.

4

A61981

PLATE

- friction, (C2) and (C3) clutches

8шт.

5

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, ring gear

1шт.

6

A58094

SPRING

- return, (C2) and (C3) clutches

6шт.

7

A63101

GEAR

- ring

1шт.

8

A58413

BUTTON

BEARING - button, ring gear

3шт.

10

A146670

PISTON

- (C2) and (C3) clutches

2шт.

11

A150753

O-RING,7.84" ID x 0.107"

- external seal, piston (7-27/32" O.D.)

2шт.

Part of Seal Kit P/N A46286

1шт.

12

A146682

RING

SEAL - external, piston (4-23/32" O.D.)

2шт.

Part of Seal Kit P/N A46286

1шт.

13

A150754

O-RING,4.718" ID x 0.107"

- internal seal, piston

2шт.

Part of Seal Kit P/N A46286

1шт.

14

A146683

RING

SEAL - internal, piston

2шт.

Part of Seal Kit P/N A46286

1шт.

15

A148688

CARRIER

- piston

1шт.

16

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - carrier oil seal (19/64 x 7/16 x 1/16")

4шт.

Part of Seal Kit P/N A46286

1шт.

17

A63098

HUB

- (C2) clutch

1шт.

18

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - (C2) hub to (C3) hub (3/8 x 3" N.C. ferry hd.)

6шт.

19

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 3/4 x 1/32")

6шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 11 - 14 and 16 and 8, 9, 17-20, 27, 28 and 31-34 in Figure 186

1шт.
