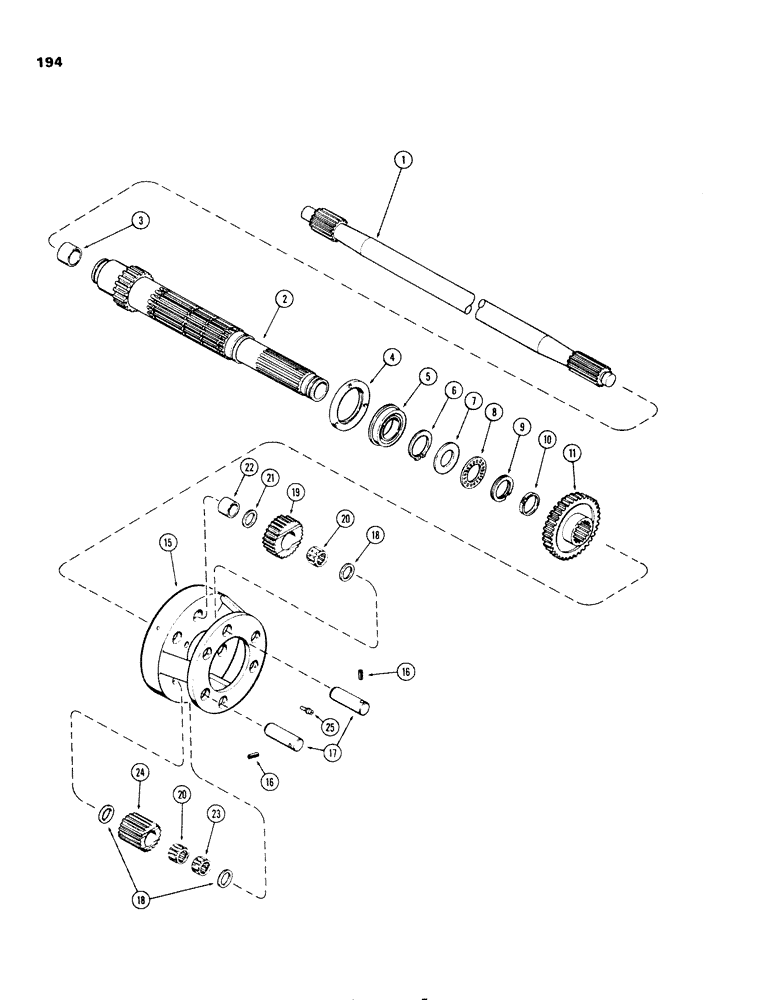

Запчасти Case IH 1270 (194) - CLUTCH PLANETARY, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10032007 (06) - POWER TRAIN

1

A66477

SHAFT

- input, power & P.T.O.

1шт.

2

A66630

SHAFT

ASSEMBLY - planetary output, Includes Ref: 3

1шт.

3

A63112

BUSHING

- P.T.O. support

1шт.

4

A64444

COLLAR

RETAINER - carrier (With three #10-24 holes) (Order 1-A146603, 1-A148692 and 3-62-410)

1шт.

5

A63109

BEARING, BALL

BEARING - ball, planetary carrier (with snap ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, , shaft locating #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 MM)

1шт.

8

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle thrust

1шт.

9

A66487

SNAP RING,#185, 1.981", Int, Spiral

RING - retaining (internal type)

1шт.

10

A58989

RING

- sealing, Serial Range: shaft-gear

1шт.

11

A66409

GEAR

- planetary input (Order A148691)

1шт.

15

A64497

CARRIER

- planetary (Order A148692 carrier, A146603 retainer and 3-62-410 screws from Figure 192)

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A63107

PIN

- planet gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gear (1 x 1-3/4 x 1/32")

9шт.

19

A63105

GEAR

- planet, short

3шт.

20

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gear (1 x 1-5/16 x 1-1/4" wide)

6шт.

21

A150410

SPACER

RACE - thrust, rear, short planet (1 x 1-3/4 x 3/32")

3шт.

22

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- planet gear, short (Replaces A63106)

3шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planet gear (1 x 1-5/16 x 1" wide)

3шт.

24

A63108

GEAR

- planet, long

3шт.

25

165-156

HEX SOC SCREW,Prev Torque, #10 - 24 x 5/8"

SCREW - cap (#10-24 x 5/8" socket hd.) (w/Jaylock) (Order 3-62-410 screws, A148692 carrier and A146603 retainer from Figure 192)

3шт.
