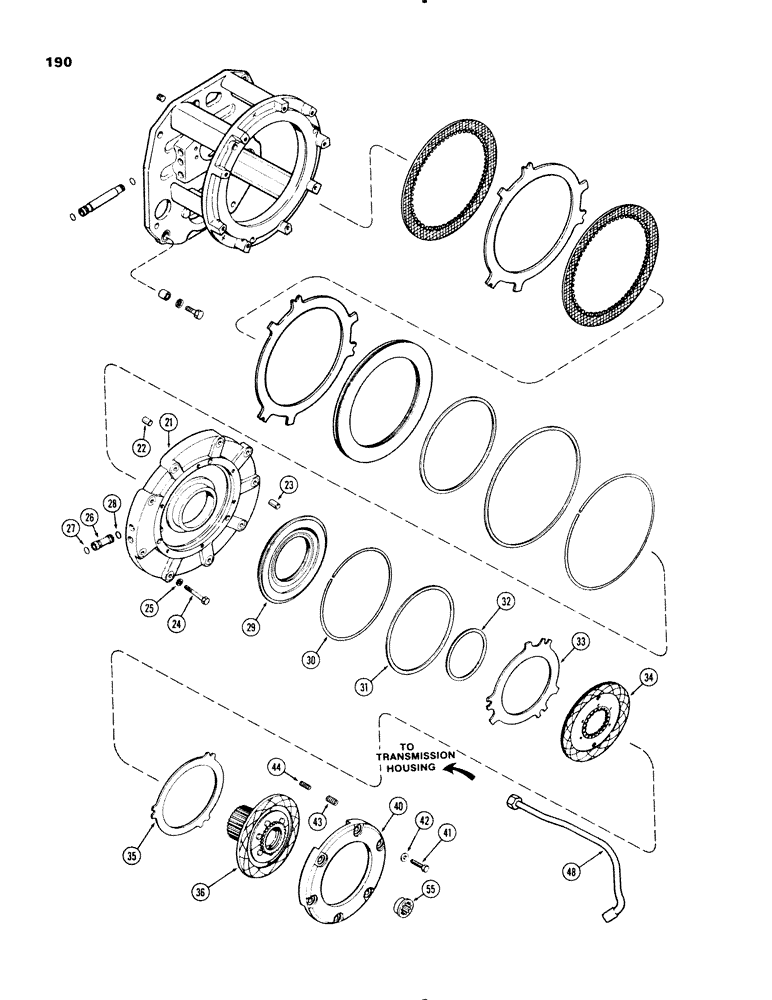

Запчасти Case IH 1270 (190) - (C1) AND (C4) CLUTCHES, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

21

A67081

CARRIER

ASSEMBLY - piston (1st used trans. ser. no. 10031544), Includes Ref: 22, 23

1шт.

21

A65563

CARRIER

ASSEMBLY - piston (Used prior to trans. ser. no.10031544), Includes Ref: 22, 23

1шт.

22

A65555

PIN

- clutch reaction plate (C4) (1-37/64" long)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

- clutch reaction plate (C1) (1-5/64" long)

3шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- (Grade 5 ) - (3/8 x 2-1/4" N.C. hex.)

9шт.

24a

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- (Grade 8)

1шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- piston carrier bolt (7/16 x 3/4 x 1/32")

9шт.

26

A63096

TUBE

- oil, (C1) & (C4) clutch (Order A152371)

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

- oil tube (9/16 x 11/16 x 1/16")

2шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tube (1/2 x 5/8 x 1/16")

2шт.

Part of Seal Kit P/N A42886

1шт.

29

A66392

PISTON

- (C1) (Order A146670,A146682,A146683,A150753 and A150754)

1шт.

30

A62642

ELECTRICAL WIRE

WIRE - (C1) piston sealing ring

1шт.

Part of Seal Kit P/N A42886

1шт.

31

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, external, (C1) piston (8-5/16" O.D.)

1шт.

Part of Seal Kit P/N A42886

1шт.

32

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, (C1) piston, internal (4-15/32" O.D.)

1шт.

Part of Seal Kit P/N A42886

1шт.

33

A65524

PLATE

- (C1) clutch with tab

1шт.

34

A142536

PLATE

- (C1) clutch (Replaces A77131)

1шт.

35

A65525

PLATE

- (C1) clutch without tab

1шт.

36

A150111

GEAR

ASSEMBLY - sun (C1) clutch (1st used trans. ser. no. 10032007)

1шт.

36

A144156

GEAR

ASSEMBLY - sun (C1) clutch (Used prior to trans. ser. no. 10032007) (Order A150109 & A150111)

1шт.

40

A150109

PLATE

- (C1) reaction (1st used trans. ser. no. 10032007)

1шт.

40

A150128

PLATE

- (C1) reaction (Used prior to trans. ser. no. 10032007) (Replaces A62605)

1шт.

41

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- (3/8 x 1-5/8" N.C. hex.)

5шт.

41

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

- (3/8 x 2" N.C. hex.)

1шт.

42

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- reaction plate bolt (7/16 x 3/4 x 1/32")

6шт.

43

A62606

SPRING

- return, (C1) (9/16" dia., 1-3/32" free length)

3шт.

44

A62607

SPRING

- return, (C1) (23/64" dia., 1-3/32" free length)

3шт.

48

REF

INSTRUCTION

TUBE ASSEMBLY - lube line to (C1) clutch

1шт.

55

A76482

BUSHING,20T

- front, P.T.O. shaft

1шт.

A42886

SEAL KIT

- seal, Includes: Ref. 28 and 30 - 32 and 10 and 18-20 in Figure 188 and 6-8 and 10 in Figure 198

1шт.
