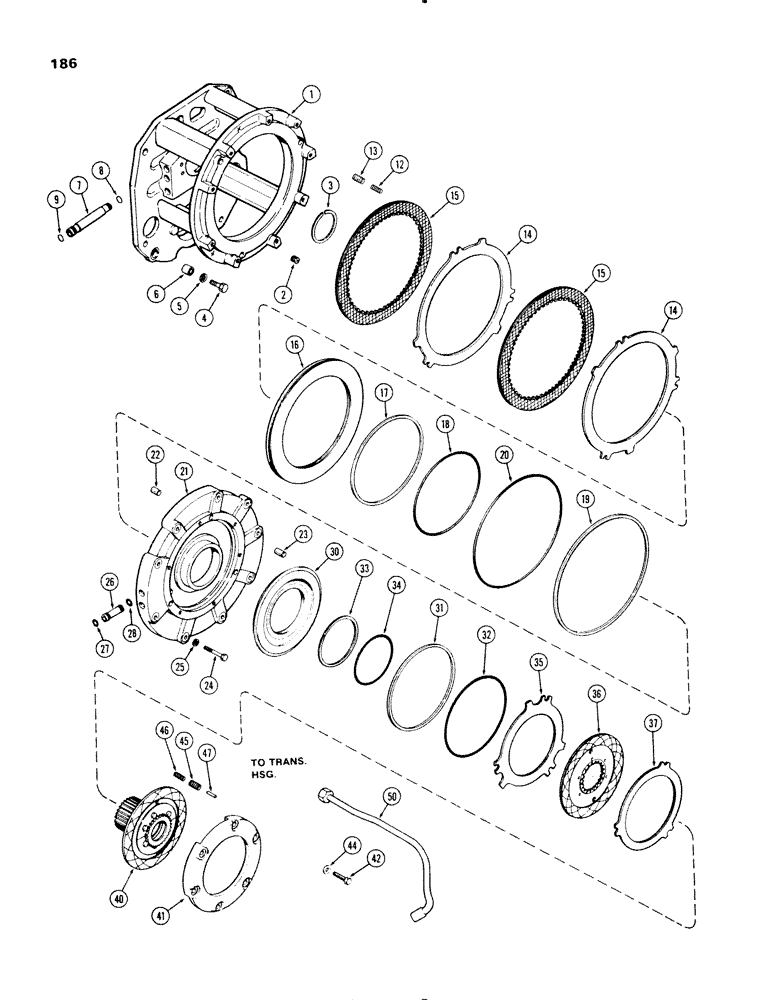

Запчасти Case IH 1270 (186) - (C1) AND (C4) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10057473 (06) - POWER TRAIN

1

A151274

CARRIER

ASSEMBLY - power shift (Replaces A67262), Includes Ref: 2

1шт.

1

A67262

CARRIER

ASSEMBLY - power shift (Replaces A67084) (Order A151274, 1-113-421 and 1-113-422), Includes Ref: 2

1шт.

2

221-841

PLUG

- pipe, 1/4" hex. socket

2шт.

3

A140045

RING

- retaining (Used with A67084 and A67262)

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Used with A67262 carrier) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

4

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used with A151274 carrier) Hex, 1/2"-13 x 2", G5

1шт.

4

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex (2 used with A67262, 3 used with A151274)

1шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

A50011

SLEEVE

- dowel

2шт.

7

A152370

TUBE

- oil (Replaces A63118)

3шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, oil tube (1/2 x 5/8 x 1/16")

3шт.

Part of Seal Kit P/N A46286

1шт.

9

D65918

BRACKET

O-RING - outer, oil tube (9/16 x 11/16 x 1/16")

3шт.

Part of Seal Kit P/N A46286

1шт.

12

A62607

SPRING

- return, clutch plate (23/64" dia. x 13/32" free length)

3шт.

13

A62606

SPRING

- return, clutch plate (9/16" dia. x 13/32" free length)

3шт.

14

A58056

PLATE

- steel, (C4) clutch

2шт.

15

A67128

PLATE

- friction, (C4) clutch

2шт.

16

A146671

PISTON

- (C4) clutch

1шт.

17

A146681

SEAL

SEAL - internal, (C4) piston (9" I.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

18

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, (C4) piston (9" I.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

19

A146680

RING

SEAL - external, (C4) piston (12-1/2" O.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

- external seal, (C4) piston (12" O.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

21

A67081

CARRIER

ASSEMBLY - piston, Includes Ref: 22, 23

1шт.

22

A65555

PIN

- (C4) plate (1-37/64" long)

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

- (C1) plate (1-5/64" long)

3шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

9шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 3/4 x 1/32")

9шт.

26

A152371

TUBE

- oil (Replaces A63096)

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

- outer, oil tube (9/16 x 11/16 x 1/16")

2шт.

Part of Seal Kit P/N A46286

1шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, oil tube (1/2 x 5/8 x 1/16")

2шт.

Part of Seal Kit P/N A46286

1шт.

30

A146670

PISTON

- (C1) clutch

1шт.

31

A146682

RING

SEAL - external, (C1) piston (8-5/16" O.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

32

A150753

O-RING,7.84" ID x 0.107"

- external seal, (C1) piston (7-13/16" O.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

33

A146683

RING

SEAL - internal, (C1) piston (4-15/32" I.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

34

A150754

O-RING,4.718" ID x 0.107"

- internal seal, (C1) piston (4-21/32" I.D.)

1шт.

Part of Seal Kit P/N A46286

1шт.

35

A65524

PLATE

- steel w/tab, (C1) clutch

1шт.

36

A142536

PLATE

- friction, (C1) clutch

1шт.

37

A65525

PLATE

- steel w/o tab, (C1) clutch

1шт.

40

A150111

GEAR

ASSEMBLY - sun

1шт.

41

A150128

PLATE

- reaction, (C1) clutch

1шт.

42

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" N.C. hex

5шт.

42

26-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

- 3/8 x 1" N.C. hex

1шт.

44

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 3/4 x 1/32")

6шт.

45

A62606

SPRING

- return, clutch plate (9/16" dia. x 1-3/32" free length)

3шт.

46

A62607

SPRING

- return, clutch plate (23/64" dia. x 13/32" free length)

3шт.

47

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

50

REF

INSTRUCTION

TUBE ASSEMBLY - clutch lube, See Figure: 168

1шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 8, 9, 17 - 20, 27, 28 and 31 - 34 and 11-14 and 16 in Figure 196

1шт.
