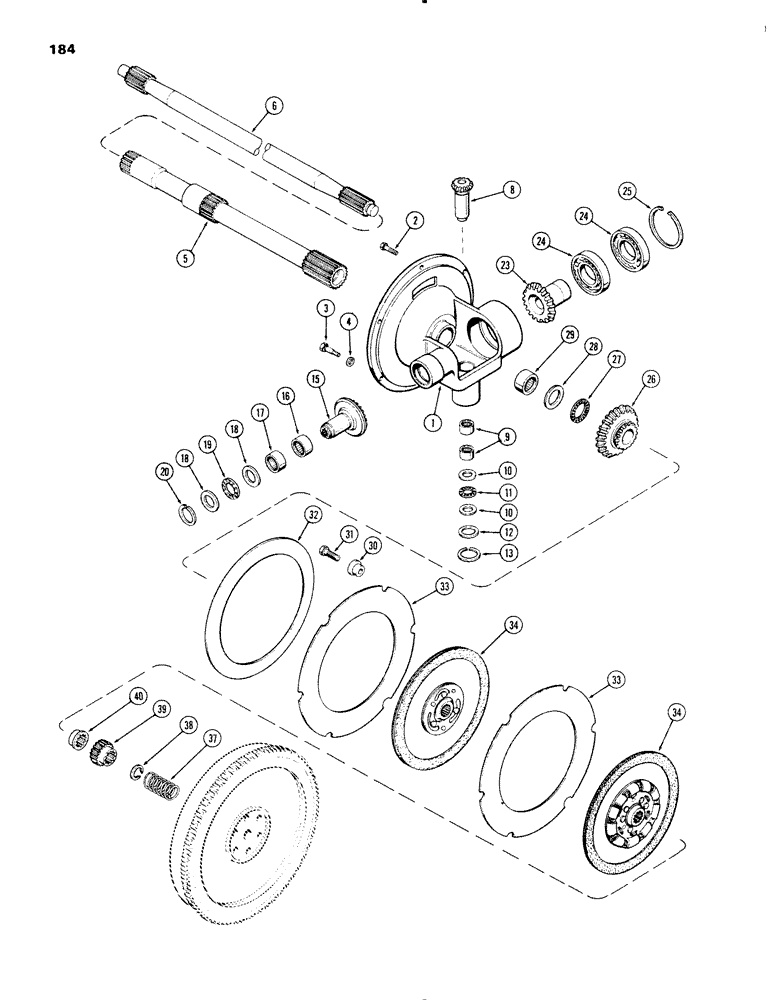

Запчасти Case IH 1270 (184) - TORQUE LIMITER AND PUMP DRIVE (06) - POWER TRAIN

1

A66422

HOUSING

- pump drive

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

5шт.

3

A63062

BOLT

- dowel (3/8" N.C.)

1шт.

4

92-7

LOCK WASHER,7/16"

1шт.

5

A150144

SHAFT

- front, P.T.O. (1st used trans. ser. no. 10056403)

1шт.

5

A66408

SHAFT

- front, P.T.O. (Used prior to trans. ser. no. 10056403)

1шт.

6

REF

INSTRUCTION

SHAFT - rear, P.T.O., See Figures: 192, 194

1шт.

8

A63074

GEAR

- bevel, charging pump (22T)

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING - roller (1-1/8 x 1-3/8 x 3/4")

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE - thrust bearing (7/8 x 1-15/32 x 1/16")

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust

1шт.

12

A63076

WASHER

RACE - thrust bearing (1-1/8 x 1-3/4 x 1/16")

1шт.

13

A64081

RING

- snap, internal (.094")

1шт.

13

A64082

RING

- snap, internal (.084")

1шт.

13

A64083

RING

- snap, internal (.074")

1шт.

15

A142862

GEAR

- bevel, dual pump (13T) (Replaces A63069)

1шт.

16

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - roller (1-2/8 x 1-3/4 x 1")

1шт.

17

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - roller (1-3/8 x 1-3/4 x 3/4")

1шт.

18

A63070

BEARING WASHER,1.262" ID x 1.917" OD x 0.126"

RACE - thrust bearing (1-1/4 x 1-15/16 x 1/8")

2шт.

19

F51467

THRUST BEARING

BEARING, Needle, Thrust

1шт.

20

A64078

RING, SNAP

RING - snap, internal (.094")

1шт.

20

A64079

RING, SNAP

RING - snap, internal (.084")

1шт.

20

A64080

RING, SNAP

RING - snap, internal (.074")

1шт.

23

A64039

GEAR

- bevel, optional pump (47T)

1шт.

24

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, optional pump gear

2шт.

25

A63081

SNAP RING,#393, 4.234", Int

RING - snap, internal (.109")

1шт.

25

A63082

RING, SNAP

RING - snap, internal (.099")

1шт.

25

A63083

RING, SNAP

RING - snap, internal (.089")

1шт.

26

A142863

GEAR

- pump drive (33T) (Replaces A66480)

1шт.

27

A66478

THRUST BEARING,2.007" ID x 2.74" OD x 0.0781"

BEARING - needle thrust (2" I.D. x 2-3/4" O.D.)

1шт.

28

A66479

RING

RACE - thrust bearing (2" x 2-3/4 x 3/32")

1шт.

29

A66476

NEEDLE BEARING,2" ID x 2.375" OD x 1" L

BEARING - needle (2 x 2-3/8 x 1")

1шт.

30

A153849

RETAINER

- clutch spring (1-3/64" long) (Replaces A76467)

6шт.

31

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" N.C. hex

6шт.

32

A64370

SPRING

- Belleville (Yellow coded) (.177" thick)

1шт.

33

A58036

PLATE

- pressure

2шт.

34

A155490

PLATE

LIMITER - torque (12") (Replaces A65422, A153079 and A155236)

2шт.

37

A65416

SPRING

- P.T.O. and hydraulic pump shaft

1шт.

38

A76480

RING

- snap, spring retaining

1шт.

39

A66610

SLEEVE

- drive shaft

1шт.

40

A76482

BUSHING,20T

- drive shaft

1шт.
