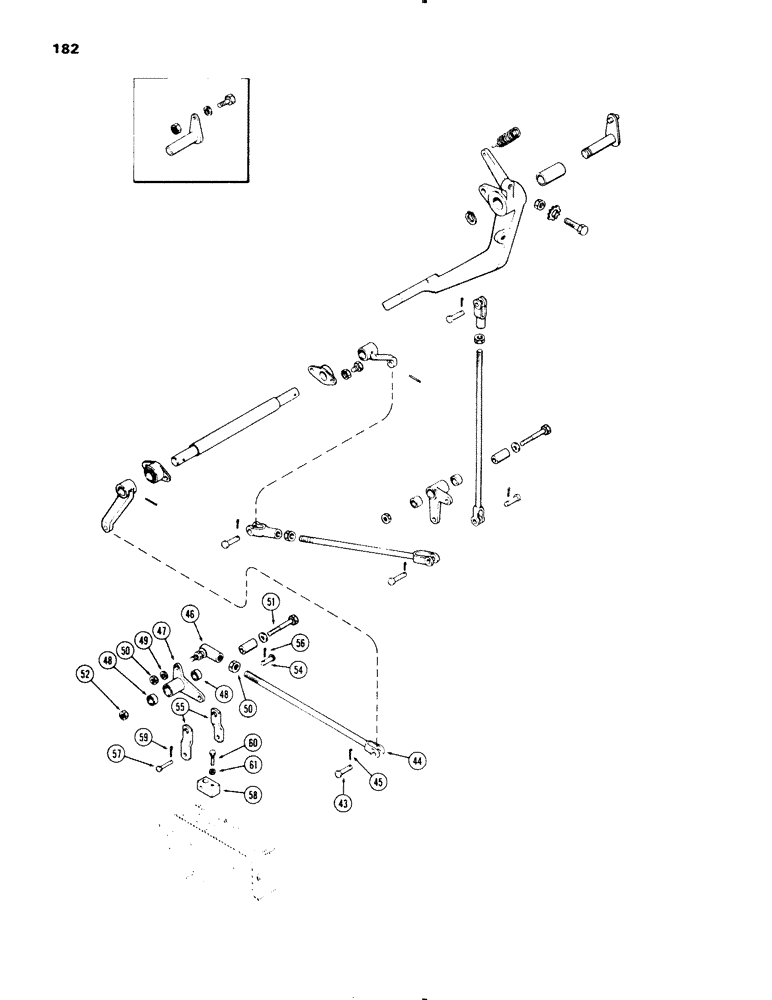

Запчасти Case IH 1270 (182) - FOOT CLUTCH LINKAGE (06) - POWER TRAIN

43

141-54

CLEVIS PIN,3/8" x 1 1/16"

(Continued from Figure 180) 3/8" x 1 1/16"

1шт.

44

A63020

ROD

- lever to rear bellcrank

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

46

A60307

JOINT

- ball (3/8")

1шт.

47

A63362

DIPPER

BELLCRANK ASSEMBLY - clutch spool, Includes Ref: 48

1шт.

48

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- clutch spool bellcrank

2шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" NF hex)

2шт.

51

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- clutch spool bellcrank (bellcrank to range shift mounting bracket) (3/8 x 2-1/2" NC hex)

1шт.

52

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC hex. Esna

1шт.

54

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

55

A63367

LINK

- clutch spool bellcrank

2шт.

56

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

57

A8824

PIN

- clevis (return lever and, Serial Range: link-spool)

1шт.

58

A63368

LEVER

- clutch spool return

1шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

60

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

61

25-114

NUT,1/4"-28, G5

- hex (1/4" NF)

1шт.
