Запчасти Case IH 1270 (178) - RANGE SHIFT MECHANISM, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN

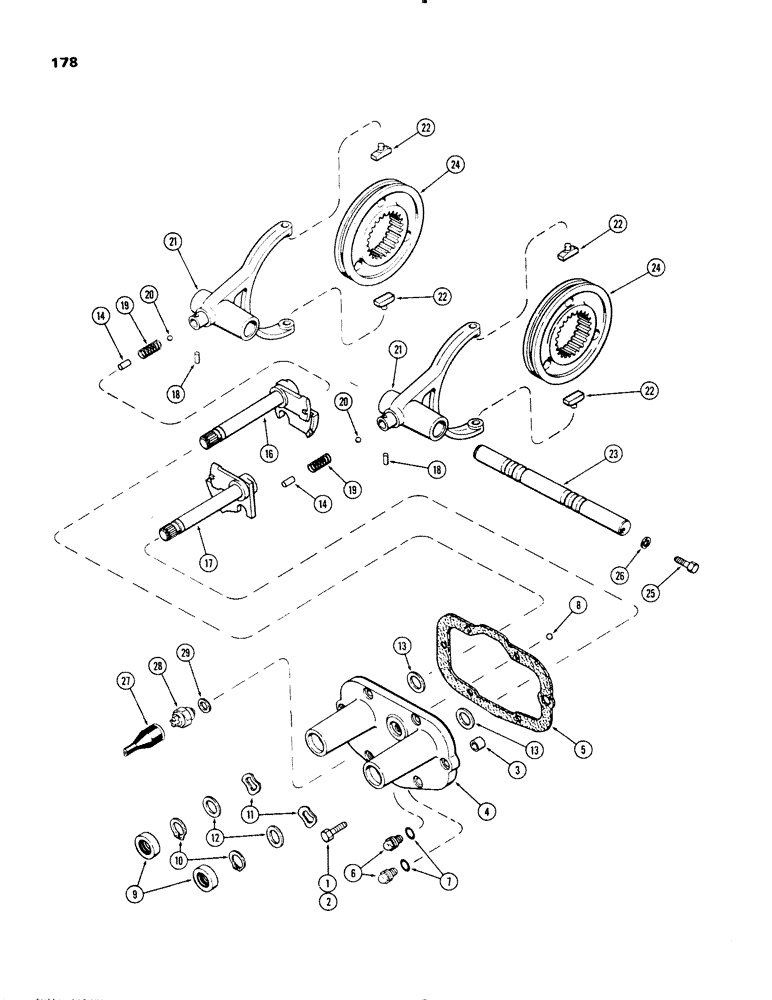

Схема запчастей Case IH 1270 - (178) - RANGE SHIFT MECHANISM, USED PRIOR TO TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN
9
22
14
11
26
10
22
4
8
18
12
3
14
24
22
19
28
16
18
27
6
1
5
7
23
22
20
24
20
13
17
13
29
19
21
25
21
2

Артикул

Название

Примечание

Количество

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.) (shifter hsg.)

5шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Shifter housing dowel sleeve) Hex, 3/8"-16 x 1 3/4", G5

1шт.

3

A63167

SLEEVE

- dowel (shifter hsg. to trans. case)

1шт.

4

A64066

HOUSING

- shifter

1шт.

5

A64067

GASKET

- shifter housing

1шт.

6

A58420

GAUGE

- oil sight

2шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- oil gauge (5/8 x 13/16 x 3/32")

2шт.

8

211-13

BALL,1/2" Dia

(Neutral start) 1/2" Dia

1шт.

9

75008

OIL SEAL

- shift shaft

2шт.

10

B18208

SNAP RING,#100, Ext

shifter shaft #100, Ext

2шт.

11

A63169

SPRING

- wave washer

2шт.

12

G46081

BEARING WASHER

WASHER - shifter shaft (0.031")

2шт.

13

A65121

SHIM,.005" Thk

Shifter shaft, 1" x 2" .005" Thk

1шт.

14

A66106

PIN

- detent spring

2шт.

16

A64062

LEVER

- (1st & 2nd)

1шт.

17

A64064

LEVER

- (3rd & 4th)

1шт.

18

135-140

GROOVED PIN,1/4" x 7/8", Type A, Hardened

Pin, Grooved, , drive-loc, shearproof 1/4" x 7/8", Type A, Hardened

2шт.

19

A26530

SPRING

- detent

2шт.

20

211-12

BALL,7/16 Dia

- (7/16" dia.) shifter fork

2шт.

21

A66104

LEVER

FORK - gear shifter

2шт.

22

A65101

FINGER

- gear shifter fork

4шт.

23

A66753

RAIL

- shifter (Replaces A66105)

1шт.

24

A66107

COLLAR

- sliding (7.635 O.D.)

2шт.

25

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.) rail to power shift carrier

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

A20991

BOOT

- neutral start switch

1шт.

28

A20990

SWITCH

- safety, neutral start

1шт.

29

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

Выбрано товаров: 28
