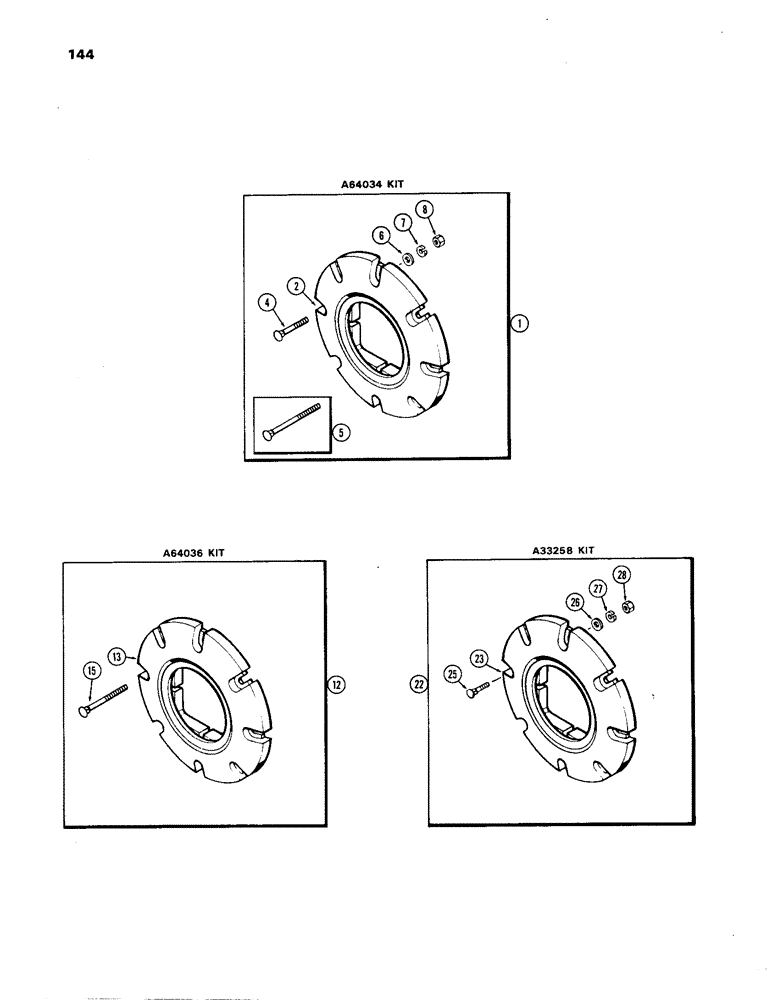

Запчасти Case IH 1270 (144) - REAR WHEELS WEIGHTS (06) - POWER TRAIN

1

A64034

KIT - starter (for 38"-42" cast wheel) (Mach. Item), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A64034)

2шт.

4

11-1092

BOLT - (5/8 x 5-3/4" N.C. rd. hd., square neck) (used with wheels & weights dished out)

8шт.

5

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT - (5/8 x 7" N.C. rd. hd., square neck) (used with wheels & weights dished in)

8шт.

6

95-10

WASHER,5/8"

- ( plain) 5/8"

8шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

25-1010

NUT,5/8"-11, G5

8шт.

12

A64036

KIT - starter (for 32" & 34" cast wheel) (Mach. Item), Includes: Ref. 13 and 15

1шт.

13

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A64036)

2шт.

15

433-1096

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5

BOLT - (5/8 x 6" N.C. rd. hd., square neck) (use on A63806 & A57686)

8шт.

22

A33258

BOLT

KIT - additional (for all cast wheels) (Mach. Item), Includes: Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - 140 lbs. (Order A33258)

2шт.

25

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - (5/8 x 4" N.C. rd. hd., square neck)

8шт.

26

95-10

WASHER,5/8"

- ( plain) 5/8"

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

28

25-1010

NUT,5/8"-11, G5

8шт.
