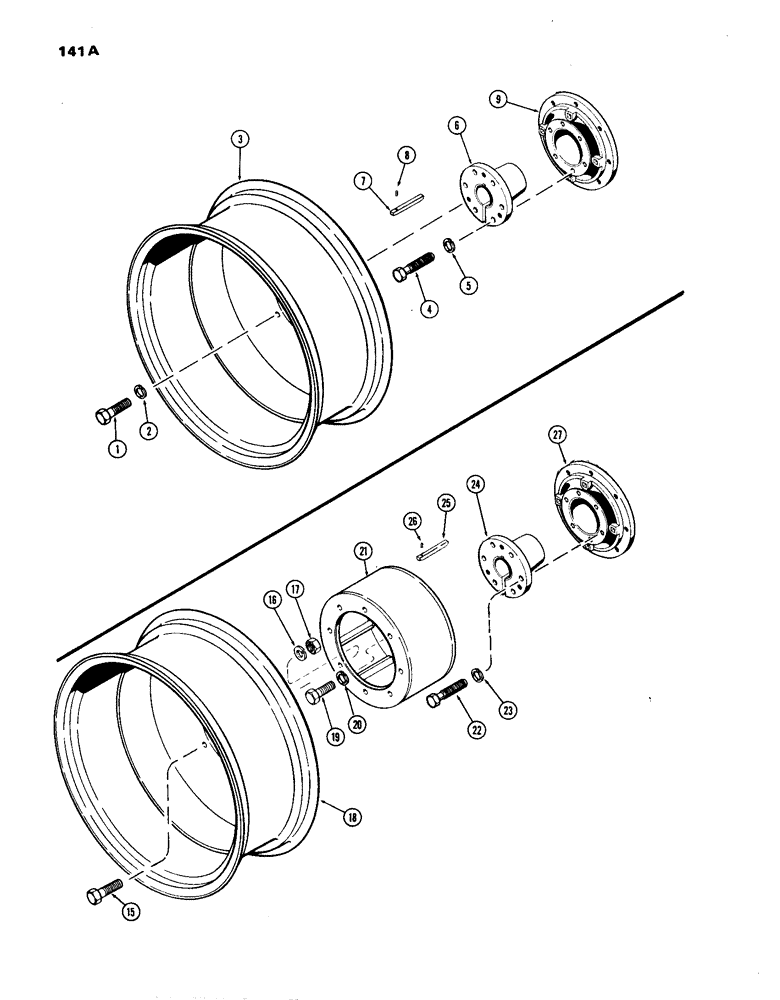

Запчасти Case IH 1270 (141A) - OUTER DUAL STEEL REAR WHEELS, USED W/ 3-1/2 INCH OR 3-7/8 INCH DIAMETER AXLE SHAFT AND 38 INCH RIMS (06) - POWER TRAIN

1

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

A64838

WHEEL - steel (use w/16 x 38 rim) (Order A65473)

2шт.

3

A64841

WHEEL - steel (use w/18 x 38 rim) (Order A65474)

2шт.

3

A65473

WHEEL

- steel (use w/16 x 38 rim)

2шт.

3

A65474

WHEEL

- steel (use w/18 x 38 rim)

2шт.

4

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.)

12шт.

5

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

12шт.

6

A59792

HUB

BUSHING - (used w/3-1/2" dia. axle shaft)

2шт.

6

A63805

BUSHING

- (used w/3-7/8" dia. axle shaft)

2шт.

7

A34890

BUCKET TOOTH KEY

KEY - (used w/3-1/2" dia. axle shaft)

2шт.

7

A63219

KEY

- (used w/3-7/8" dia. axle shaft)

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub 1/4" x 1/2", Slotted

2шт.

9

A59791

HUB

- tapered (used w/3-1/2" dia. axle shaft)

2шт.

9

A63804

HUB

- (used w/3-7/8" dia. axle shaft)

2шт.

15

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to spacer, outer dual steel rear, (used w/3-7/8" dia. axle shaft) Hex, 5/8"-11 x 2 1/4", G5

16шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft) 5/8"

16шт.

17

25-1010

NUT,5/8"-11, G5

Outer dual steel rear wheel spacer (used w/3-7/8" dia. axle shaft) 5/8"-11, G5

16шт.

18

A64838

WHEEL - steel (used w/16 x 38 rim) (Order A65473), outer dual, rear, spacer, (used w/3-7/8" dia. axle shaft)

2шт.

18

A64841

WHEEL - steel (used w/18 x 38 rim) (Order A65474), outer dual, rear, spacer, (used w/3-7/8" dia. axle shaft)

2шт.

18

A65473

WHEEL

- steel (used w/16 x 38 rim), outer dual, rear, spacer, (used w/3-7/8" dia. axle shaft)

2шт.

18

A65474

WHEEL

- steel (use w/18 x 38 rim), outer dual, rear, spacer, (used w/3-7/8" dia. axle shaft)

2шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft) Hex, 5/8"-11 x 2", G5

16шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft) 5/8"

16шт.

21

A65475

SPACER

- dual wheel (Replaces A64842), outer, steel, rear, (used w/3-7/8" dia. axle shaft)

2шт.

22

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex. (3/4 x 4-1/2" N.C.), outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft)

12шт.

23

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft)

12шт.

24

A59792

HUB

BUSHING - (used w/3-1/2" dia. axle shaft), outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft)

2шт.

24

A63805

BUSHING

- (used w/3-7/8" dia. axle shaft), outer dual steel rear wheel spacer

2шт.

25

A34890

BUCKET TOOTH KEY

KEY - (used w/3-1/2" dia. axle shaft), outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft)

2шт.

25

A63219

KEY

- (used w/3-7/8" dia. axle shaft), outer dual steel rear wheel spacer

2шт.

26

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to hub, outer dual steel rear wheel spacer, used w/3-7/8" dia. axle shaft 1/4" x 1/2", Slotted

2шт.

27

A59791

HUB

- tapered (used w/3-1/2" dia. axle shaft), outer dual steel rear wheel spacer, (used w/3-7/8" dia. axle shaft)

2шт.

27

A63804

HUB

- (used w/3-7/8" dia. axle shaft), outer dual steel rear wheel spacer

2шт.
