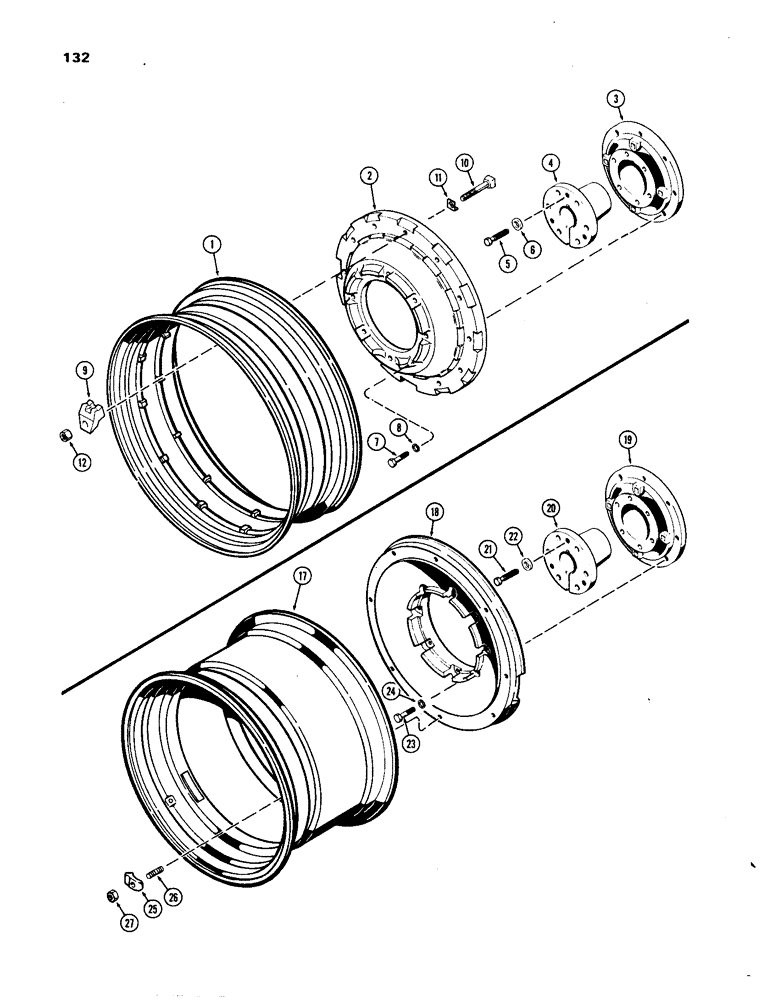

Запчасти Case IH 1270 (132) - REAR WHEELS WITH 34 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A63810
RIM
- rear wheel (use w/20.8-34 tire)
2шт.
2
A63809
WHEEL
- rear (use w/20.8-34 tire)
2шт.
3
A59791
HUB
- universal (3-1/2" tapered bushing), used w/20.8 x 34 tire
2шт.
4
A59792
HUB
BUSHING - (3-1/2" taper) rear wheel hub, used w/20.8 x 34 tire
2шт.
5
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - hex. (3/4 x 4-1/2" N.C.), used w/20.8 x 34 tire
12шт.
6
D31328
WASHER
- (49/64 x 1-5/8 x 1/4"), used w/20.8 x 34 tire
12шт.
7
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- hex. (5/8 x 2-3/4" N.C.), wheel to hub, used w/20.8 x 34 tire
16шт.
9
A57654
CLAMP
- double ramp (rim to wheel), used w/20.8 x 34 tire
24шт.
10
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- (3/4 x 3-1/2" N.C. square head), used w/20.8 x 34 tire
24шт.
11
A34799
LOCK WASHER
- lock, clamp bolt, used w/20.8 x 34 tire
24шт.
12
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- hex. (3/4" N.C.), used w/20.8 x 34 tire
24шт.
17
A33460
RIM
- rear wheel (use w/23.1-34 tire)
2шт.
18
A57686
WHEEL
- rear (use w/23.1-34 tire)
2шт.
19
A59791
HUB
- universal (3-1/2" tapered bushing), used w/23.1 x 34 tire
2шт.
20
A59792
HUB
BUSHING - (3-1/2" taper), used w/23.1 x 34 tire
2шт.
21
A27744
ADAPTER,7/8" - 18 x 1/2" NPT
- (7/8" - 18 male to 1/2" P.T. female), used w/23.1 x 34 tire
1шт.
21
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - hex., bushing to hub, used w/23.1 x 34 tire
12шт.
22
D31328
WASHER
- (49/64 x 1-5/8 x 1/4"), used w/23.1 x 34 tire
12шт.
23
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- hex. (5/8 x 2-3/4" N.C.), wheel to hub, used w/23.1 x 34 tire
16шт.
25
F62001
CLAMP
- rear wheel rim, used w/23.1 x 34 tire
16шт.
26
A60047
STUD
- rear wheel rim, used w/23.1 x 34 tire
16шт.
27
A27183
NUT
- stud, rear wheel rim, used w/23.1 x 34 tire
16шт.
Выбрано товаров: 24
