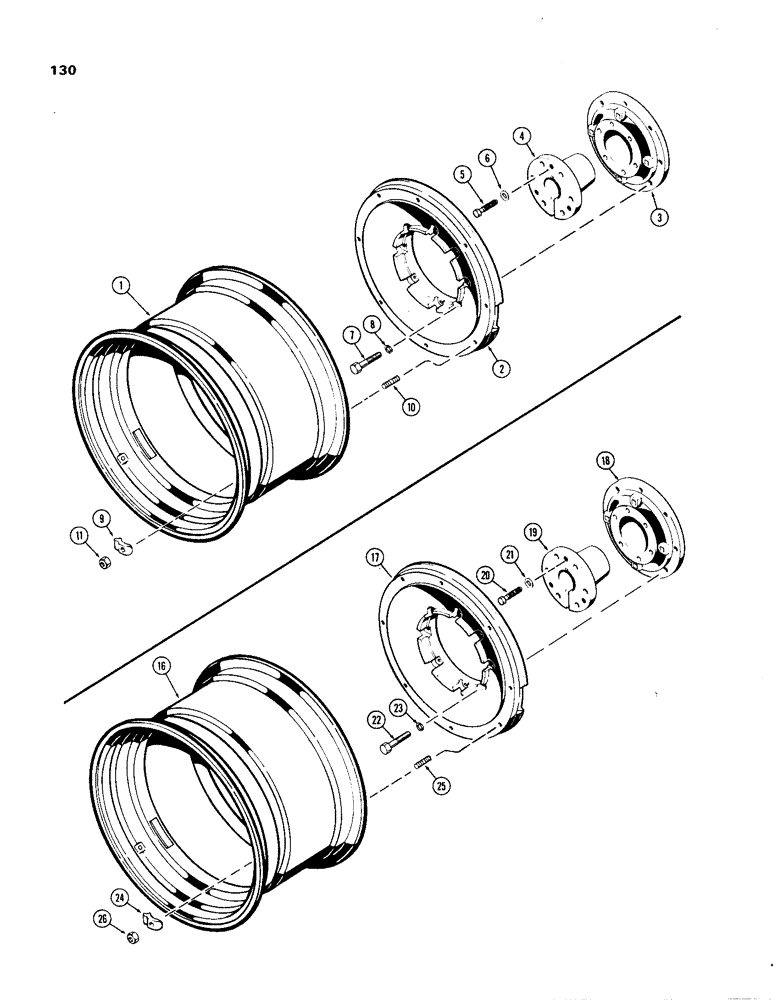

Запчасти Case IH 1270 (130) - REAR WHEELS WITH 32 INCH RIMS (06) - POWER TRAIN

1

A63807

RIM

- rear wheel (use w/24.5-32 tire), used w/ 3-1/2" dia. axle shaft

2шт.

2

A63806

WHEEL

- rear (use w/24.5-32 tire), used w/ 3-1/2" dia. axle shaft

2шт.

3

A59791

HUB

- universal (3-1/2" tapered bushing), used w/ 3-1/2" dia. axle shaft

2шт.

4

A59792

HUB

BUSHING - (3-1/2" tapered), used w/ 3-1/2" dia. axle shaft

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.), used w/ 3-1/2" dia. axle shaft

12шт.

6

D31328

WASHER

- (49/64 x 1-5/8 x 1/4"), used w/ 3-1/2" dia. axle shaft

12шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used w/ 3-1/2" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-1/2" dia. axle shaft 5/8"

16шт.

9

F62001

CLAMP

- rear wheel rim, used w/ 3-1/2" dia. axle shaft

16шт.

10

A60047

STUD

- rear wheel rim, used w/ 3-1/2" dia. axle shaft

16шт.

11

A27183

NUT

- stud, rear wheel rim, used w/ 3-1/2" dia. axle shaft

16шт.

16

A63807

RIM

- rear wheel (use w/24.5-32 tire), used w/ 3-7/8" dia. axle shaft

2шт.

17

A63806

WHEEL

- rear (use w/24.5-32 tire), used w/ 3-7/8" dia. axle shaft

2шт.

18

A63804

HUB

- universal, used w/ 3-7/8" dia. axle shaft

2шт.

19

A63805

BUSHING

- rear wheel hub, used w/ 3-7/8" dia. axle shaft

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - (3/4 x 4-1/2" N.C. hex.), used w/ 3-7/8" dia. axle shaft

12шт.

21

D31328

WASHER

- plain (3/4"), used w/ 3-7/8" dia. axle shaft

12шт.

22

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Used w/ 3-7/8" dia. axle shaft Hex, 5/8"-11 x 2 1/2", G5

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-7/8" dia. axle shaft 5/8"

16шт.

24

F62001

CLAMP

- rear wheel rim, used w/ 3-7/8" dia. axle shaft

16шт.

25

A60047

STUD

- rear wheel rim, used w/ 3-7/8" dia. axle shaft

16шт.

26

A27183

NUT

- stud, rear wheel rim, used w/ 3-7/8" dia. axle shaft

16шт.
