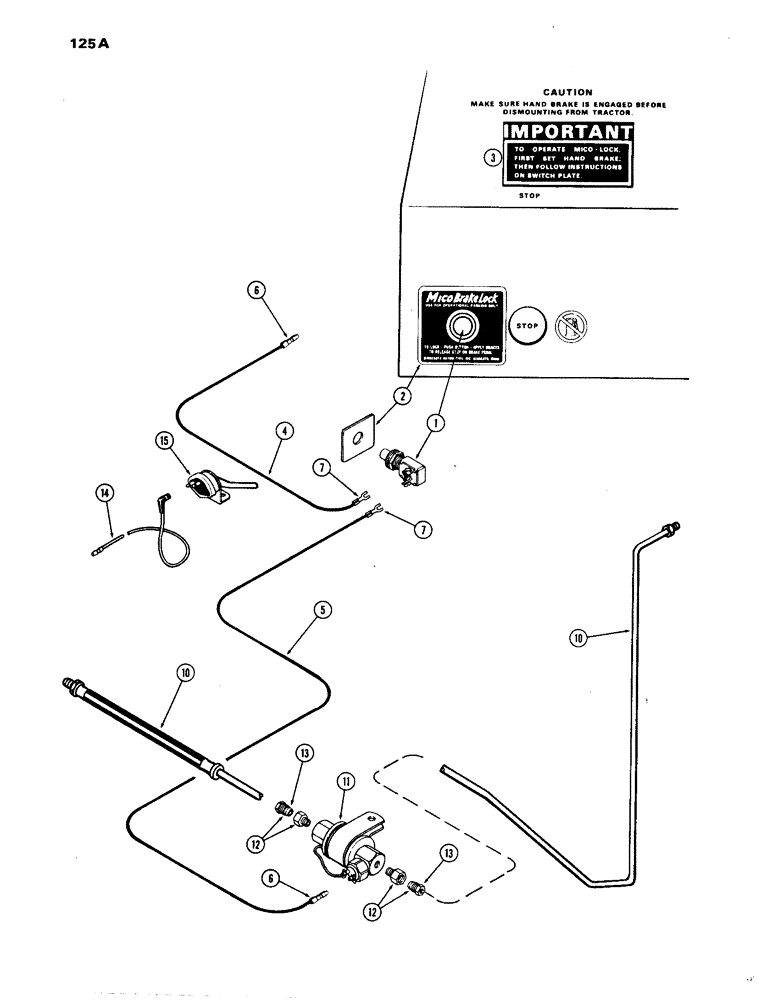

Запчасти Case IH 1270 (125A) - BRAKE LOCK KIT (06) - POWER TRAIN

A66623

KIT

- hydraulic brake lock

1шт.

1

A44998

SWITCH

- push button, brake lock

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - information

1шт.

3

321-2655

DECAL

- important instruction

1шт.

4

NSS

NOT SOLD SEPARAT

WIRE - switch to brake warning lamp (green 22")

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - switch to lock valve (green 120")

1шт.

6

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet, green wire

2шт.

7

223-73

SPADE TERMINAL,14 - 16

TERMINAL - spade, green wire

1шт.

10

REF

INSTRUCTION

TUBE - brake, R.H. (See Figure 147A)

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - hydraulic, brake lock (Order A66623)

1шт.

12

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

FITTING - valve to tube, 1/4" tube x 1/8" P.T.

2шт.

13

222-502

TUBE NUT,7/16"-24

NUT - 1/4" tube

1шт.

14

A66713

ELECTRICAL WIRE

WIRE - brake switch to inst. panel (87")

1шт.

15

A33977

SWITCH

- parking brake warning lamp (See Figure 058)

1шт.
