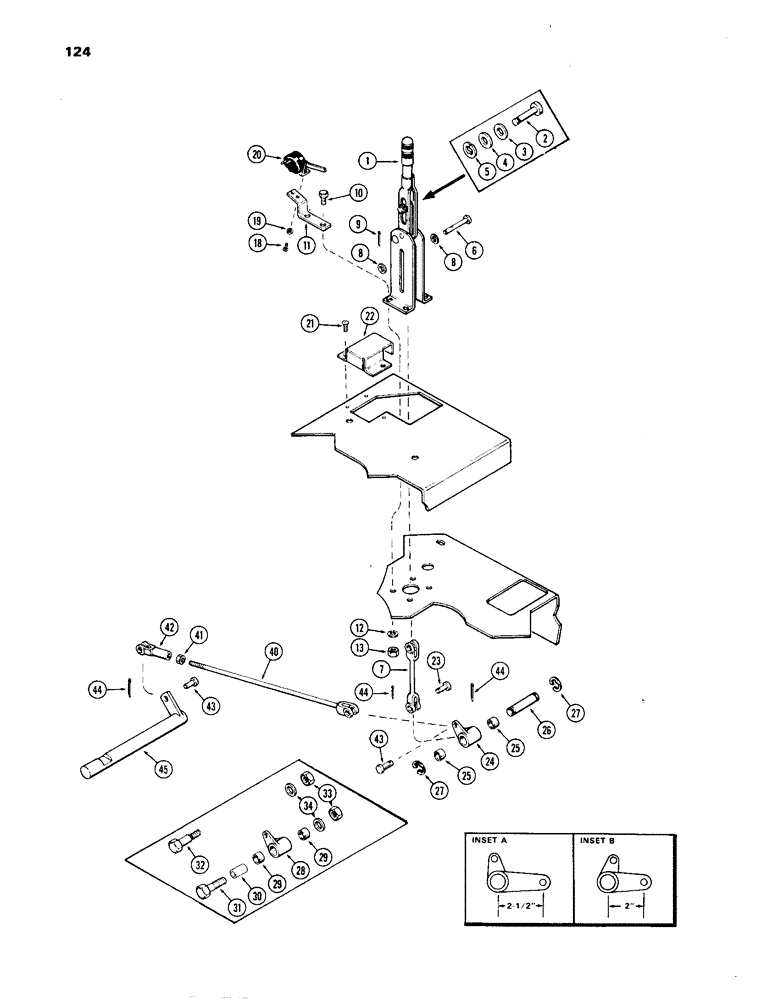

Запчасти Case IH 1270 (124) - DIFFERENTIAL, PARKING BRAKE (06) - POWER TRAIN

1

A59410

LEVER

ASSY. - hand, parking brake, Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

3

D47261

WASHER

- spring (21/64 x 39/64 x 1/100")

1шт.

4

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 16 gauge)

1шт.

5

C14652

RING

- pin retaining

1шт.

6

A76379

PIN

- clevis (connects link to brake hand lever)

1шт.

7

A63702

CLEVIS

LINK - hand, Serial Range: lever-bellcrank

1шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

113-293

BOLT

- (3/8 x 1" N.C. hex.), lever &, Serial Range: bracket-platform

4шт.

11

A63698

BRACKET

- parking brake light switch

1шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

4шт.

18

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- machine (#10 x 3/8" N.F. rd. hd.), brake light switch to bracket

2шт.

19

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

20

A33977

SWITCH

- brake light

1шт.

21

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - (#10 x 1/2" self tapping truss hd.), cover to seat support

3шт.

22

A63699

COVER

- parking brake light switch

1шт.

23

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, (Link to bellcrank) 5/16" x .940"

1шт.

24

A65836

DIPPER

BELLCRANK ASSY. - parking brake (1st used trac. ser. no. 8722704) (Has 2-1/2" long lever. See Inset A), Includes: Ref. 25

1шт.

25

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- parking brake bellcrank

2шт.

26

A65838

SHAFT

- bellcrank pivot (1st used trac. ser. no. 8722704)

1шт.

27

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, (1st used trac. ser. no. 8722704) #62, .480" Dia, E-Type

2шт.

28

A63700

ARM ASSY.

BELLCRANK ASSY. - parking brake (used prior to trac. ser. no. 8722704) (Has 2" long lever. See Inset B), Includes: Ref. 29

1шт.

29

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- bellcrank

2шт.

30

A65345

SHAFT

SLEEVE - pivot, bellcrank (used prior to trac. ser. no. 8722704)

1шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

1шт.

32

A63026

BOLT

- shoulder, bellcrank (Order A65345 & 11-640)

1шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

40

A59775

ROD

- connecting

1шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" N.F.)

1шт.

42

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable (connecting rod)

1шт.

43

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (Connecting rod) 3/8" x 1.060"

2шт.

44

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

44

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

45

A63238

SHAFT - brake (used prior to trac. ser. no. 8722704) (See Figure 120)

1шт.

45

A65834

SHAFT

- brake (1st used trac. ser. no. 8722704) (See Figure 120)

1шт.
