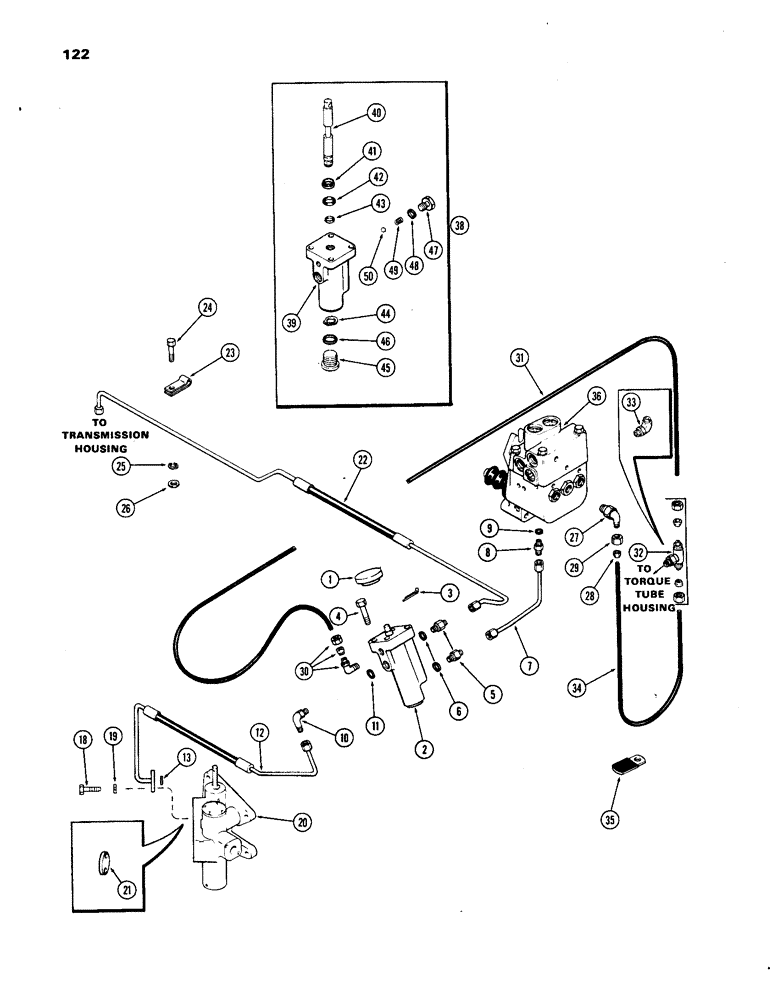

Запчасти Case IH 1270 (122) - DIFFERENTIAL, DIFFERENTIAL LOCK MECHANISM (06) - POWER TRAIN

1

A63661

PEDAL

- differential lock valve

1шт.

2

A63657

LOCK VALVE

VALVE ASSY. - differential lock (See Ref. 38)

1шт.

3

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Pedal to shaft 1/8" x 1 1/2"

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSY. - straight (1/4" tube O.D.)

2шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

7

A63664

PIPE

TUBE - brake valve to lock valve

1шт.

8

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSY. - straight (1/4" tube O.D.)

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 deg. adjustable (in differential lock valve)

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

12

A63665

HOSE

- regulator valve to differential lock valve

1шт.

13

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (.375 x .562 x .090")

1шт.

18

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

REF

INSTRUCTION

VALVE ASSY. - P.T.O. & clutch regulator (See Figure 158)

1шт.

21

A63672

CAP

- "2 bolt" flange (Used Without Differential Lock)

1шт.

22

A63668

HOSE

- differential lock, Serial Range: valve-trans.

1шт.

23

A63669

CLIP

-, Serial Range: hose-transmission

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

P.T.O. actuating tube clamp to trans. case top Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

27

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- brake valve, 3/8" tube x 1/4" P.T. 90 deg.

1шт.

28

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

29

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

30

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - lock valve, 3/8" tube x 1/8" P.T. - 90 deg. (Replaces straight coupling 218-5100 used in early production)

1шт.

31

A63997

TUBE

- (3/8" dia. nylon) (diff. lock, Serial Range: valve-sump)

1шт.

32

222-5190

TEE,7/16"-24 x 3/8" NPT Run

- (in torque tube)

1шт.

33

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW - 90 deg. male (in torque tube) (used without diff. lock)

1шт.

34

A64389

TUBE

- brake, Serial Range: valve-sump

1шт.

35

A37179

CLIP

CLAMP - tube (on bolt on "2 bolt" flange on L.H. side of torque tube)

1шт.

36

REF

INSTRUCTION

VALVE ASSY. - power assist brake (See Figure 148, 150, 152, and 154)

1шт.

38

A63657

LOCK VALVE

VALVE ASSY. - differential lock

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve, differential lock, assembly

1шт.

40

A63659

SPOOL

- valve, differential lock, assembly

1шт.

41

A63660

RING

- wiper, differential lock valve assembly

1шт.

42

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - (13/16 x 5/8 x 3/32"), differential lock valve assembly

1шт.

43

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - (7/16 x 5/8 x 3/32"), differential lock valve assembly

1шт.

44

G33052

SNAP RING,#62, Ext

Ring, Snap, , differential lock valve assembly #62, Ext

1шт.

45

9841223

PLUG,1-1/16" - 12 ORB

ASSY. - 3/4" tube O.D., differential lock valve

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8"), differential lock valve assembly

1шт.

47

9672438

PLUG,7/16" - 20 ORB

Assy (1/4" tube O.D.), Differential lock valve Hex Hd, 7/16"-20 ORB

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (23/64 x 1/4 x 5/64"), differential lock valve assembly

1шт.

49

B51407

SPRING

- compression, differential lock valve assembly

1шт.

50

211-11

BALL,3/8" Dia

- (.), differential lock valve assembly 3/8" Dia

1шт.

A43711

KIT

- seal (Includes Items 41,42,43,46 & 48), differential lock valve assembly

1шт.
