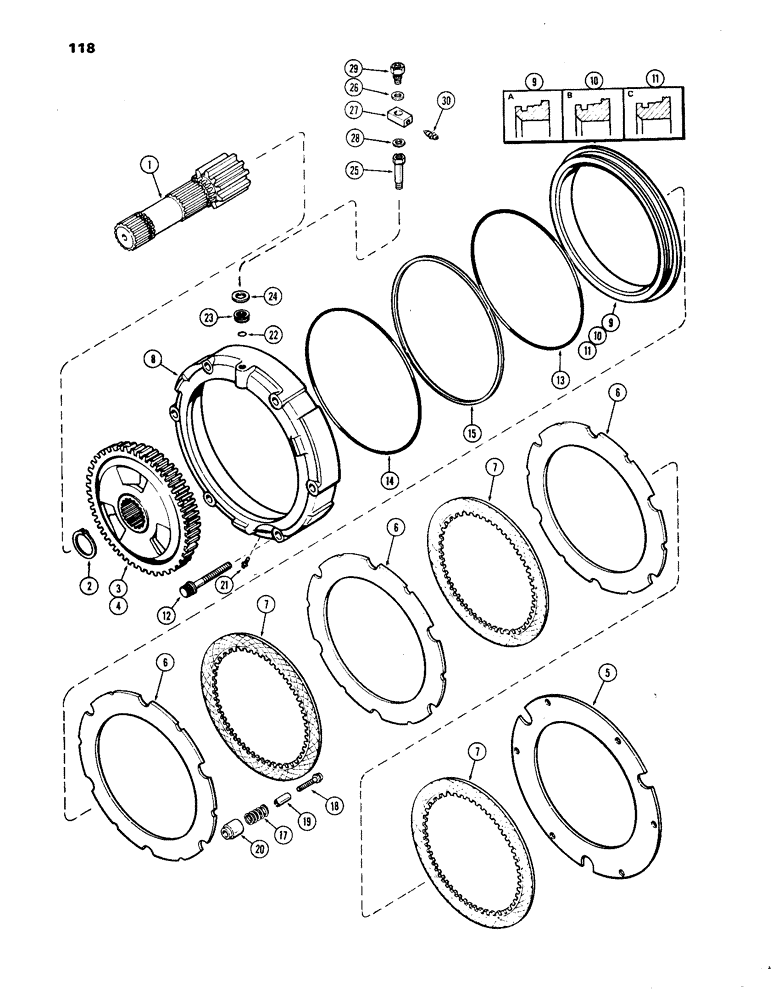

Запчасти Case IH 1270 (118) - DIFFERENTIAL, SHAFT AND BRAKE MECHANISM (06) - POWER TRAIN

1

A63194

SHAFT

- differential with sun gear

2шт.

2

F35283

SNAP RING,#231, Ext

Ring, Snap, , brake hub #231, Ext

2шт.

3

A63196

HUB

- brake (R.H.)

1шт.

4

A63197

HUB

- brake (L.H.)

1шт.

Casting number is 968713 per print

1шт.

5

A63198

DISC

- brake (Steel)

2шт.

6

A63199

DISC

- brake (Steel)

6шт.

7

A63200

DISC

- brake (with lining)

6шт.

8

A63204

CYLINDER

- brake support (use w/A63205 piston)

2шт.

8

A65735

COVER

CYLINDER - brake support (use w/A65540 piston)

2шт.

9

A63205

PISTON

- brake (cast iron w/o identification groove) (See Inset A) (Use w/A63204 cylinder)

2шт.

10

A65330

PISTON

- brake (cast iron w/identification groove) (See Inset B) (Use w/A63204 cylinder)

2шт.

11

A65540

PISTON

- brake (steel w/2 identification grooves) (See Inset C) (Use w/A65735 cylinder)

2шт.

12

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - (1/2 x 4" N.C. Ferry Cap)

12шт.

A44338

KIT

- piston "O" ring (Replaces A44193), Includes: Ref. 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

"O" RING - brake piston (11-31/32 x 12-13/33 x 7/32")

1шт.

14

NSS

NOT SOLD SEPARAT

"O" RING - brake piston (11-15/32 x 12 x 7/32")

1шт.

15

NSS

NOT SOLD SEPARAT

RING - back-up (11-1/32 x 11-7/32 x 3/32") (Not used w/A63204 cylinder)

1шт.

17

A63203

SPRING

- brake return

6шт.

18

166-1004

12 PT SCREW,Lock, Flg, 1/4" - 20 x 1 3/4", Gr 8

SCREW - (1/4 x 1-3/4" Ferry Cap), brake pin

6шт.

19

138-187

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, , brake pin 7/16" x 1 1/4", Slotted

6шт.

20

A63202

PIN

- brake disc

6шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleed (in cylinder)

2шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - hydraulic brake connector

2шт.

23

A64071

GROMMET

- brake fitting

2шт.

24

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- (11/16 x 1-1/4 x 1/16")

2шт.

25

A64070

FITTING

- hydraulic brake (in cylinder)

2шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - copper (1/2" I.D. x 13/16" O.D.)

2шт.

27

A64072

FITTING

BANJO - brake bleeder

2шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- copper (19/32 I.D. x 13/16" O.D.)

2шт.

29

A64073

HOLLOW SCREW

- connector

2шт.

30

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake bleeder (in Banjo)

2шт.
