(112) - CLUTCH, (C-2) AND (C-3) CLUTCHES

Запчасти Case IH 1270 (112) - CLUTCH, (C-2) AND (C-3) CLUTCHES (06) - POWER TRAIN

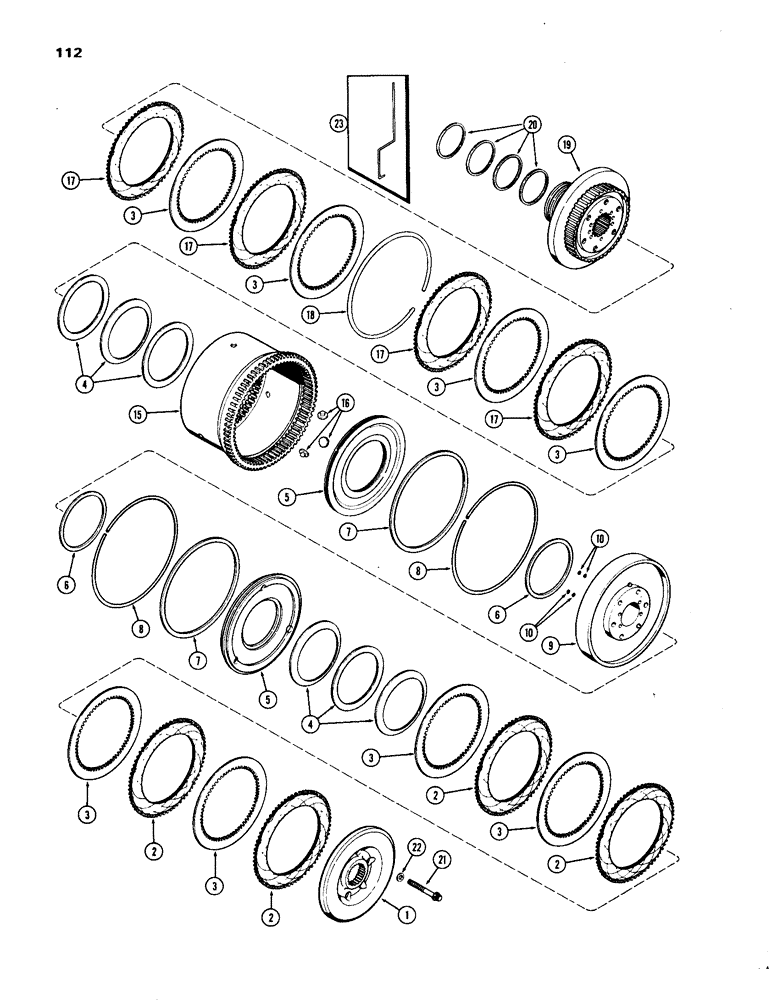

Схема запчастей Case IH 1270 - (112) - CLUTCH, (C-2) AND (C-3) CLUTCHES (06) - POWER TRAIN
4
17
4
8
2
15
5
18
1
2
9
22
2
7
10
17
21
19
17
2
23
3
7
17
3
5
20
3
3
3
16
3
3
6
8
6
3
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63098

HUB

- (C-2) clutch, (4 plates)

1шт.

2

A61981

PLATE

- clutch, sintered

4шт.

3

A58089

PLATE

- steel, clutch

8шт.

4

A58094

SPRING

- clutch return

6шт.

5

A66359

PISTON

- (C-2) & (C-3) (Replaces A63094)

2шт.

6

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, piston, internal (C-2) & (C-3) piston

2шт.

7

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, piston, external (C-2) & (C-3) piston

2шт.

8

A62642

ELECTRICAL WIRE

WIRE - sealing ring

2шт.

9

A64487

CARRIER

- (C-2) & (C-3) piston

1шт.

10

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - oil sealing (19/64 x 7/16 x 1/16")

4шт.

15

A63101

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

17

A61981

PLATE

- clutch, sintered

4шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A63100

HUB

- (C-3) clutch, (4 plates)

1шт.

20

A58384

RING

- oil distributor piston

4шт.

21

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - (3/8 x 3" N.C. Ferry Cap)

6шт.

22

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 3/4 x 1/32")

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service Tool)

3шт.

A42886

SEAL KIT

SEAL

1шт.
