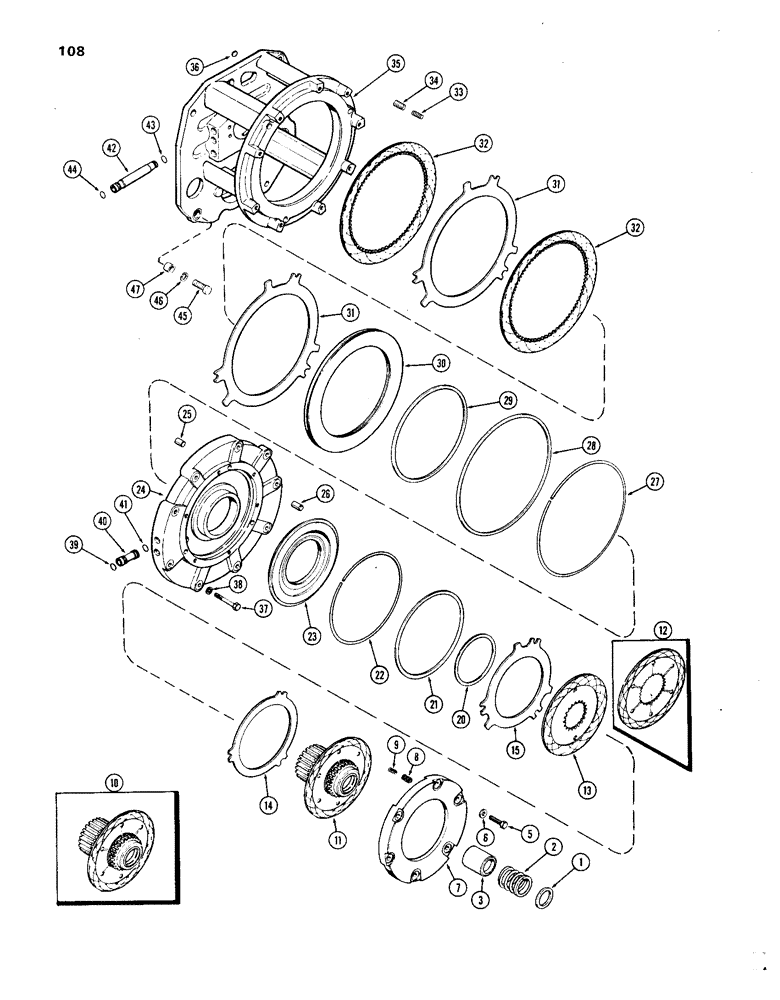

Запчасти Case IH 1270 (108) - CLUTCH, (C-1) AND (C-4) CLUTCHES (06) - POWER TRAIN

1

A63067

SPACER

RETAINER - spring

1шт.

2

A63068

SPRING

- planetary input gear

1шт.

3

A64074

SLEEVE

- (C-1) support

1шт.

5

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- (3/8 x 1-5/8" N.C. hex.) (reaction plate to piston carrier)

6шт.

6

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- reaction plate bolt

6шт.

7

A62605

PLATE

- (C-1) reaction

1шт.

8

A62606

SPRING

- return, (C-1) clutch, (9/16" dia.) (1-3/32" free length)

3шт.

9

A62607

SPRING

- return, (C-1) clutch, (23/64" dia.) (1-3/32" free length)

3шт.

10

A64075

PLATE

GEAR ASSY. - sun (incl. C1 clutch plate) (Order A65432)

1шт.

11

A65432

GEAR

ASSY. - sun (incl. C1 clutch plate)

1шт.

12

A62613

CLUTCH PLATE

PLATE - (C-1) clutch, sintered (w/slots) (Order A75971)

1шт.

13

A75971

PLATE

- (C-1) clutch, sintered (w/o slots)

1шт.

14

A65525

PLATE

- (C-1) clutch without tab (Replaces A62610)

1шт.

15

A65524

PLATE

- (C-1) clutch with tab (Replaces A58392)

1шт.

20

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, (C-1) piston, internal

1шт.

21

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, external, (C-1) piston

1шт.

22

A62642

ELECTRICAL WIRE

WIRE - (C-1) piston sealing ring

1шт.

23

A58380

PISTON

- (C-1)

1шт.

24

A65563

CARRIER

ASSY. - piston (C-1) (C-4) (Replaces A63674), Includes: Ref. 25 and 26

1шт.

25

A65555

PIN

- reaction plate, C4 clutch (1-37/64" long)

3шт.

26

A62609

PIN,12.45mm OD x 27.43mm L

- reaction plate, C1 clutch (1-5/64" long)

6шт.

27

A62643

ELECTRICAL WIRE

WIRE - (C-4) piston sealing ring

1шт.

28

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing, (C-4) piston, external

1шт.

29

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing, (C-4) piston, internal

1шт.

30

A58395

PISTON

- (C-4) clutch

1шт.

31

A58056

PLATE

- steel, (C-4) clutch

2шт.

32

A62563

PLATE

- friction, (C-4) clutch

2шт.

33

A62607

SPRING

- return, (C-4) clutch, (23/64" dia.) (1-3/32" free length)

3шт.

34

A62606

SPRING

- return, (C-4) clutch, (9/16" dia.) (1-3/32" free length)

3шт.

35

A66979

CARRIER

ASSY. - power shift (Replaces A63952), Includes: Ref. 36

1шт.

36

221-841

PLUG

- pipe, 1/4" hex. socket (Replaces A39321)

2шт.

37

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- (3/8 x 2-1/4" N.C. hex.) piston carrier to Power shift carrier

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- piston carrier bolt

9шт.

39

A65918

O-RING,0.551" ID x 0.691" OD

"O" RING - oil tube (9/16 x 11/16 x 1/16")

2шт.

40

A63096

TUBE

- oil, (C-1) & (C-4) clutch

2шт.

41

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - oil tube (1/2 x 5/8 x 1/16")

2шт.

42

A63118

TUBE

- oil

3шт.

43

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - (1/2 x 5/8 x 1/16")

3шт.

44

A65918

O-RING,0.551" ID x 0.691" OD

"O" RING - (9/16 x 11/16 x 1/16")

3шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

45

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

46

92-8

LOCK WASHER,1/2"

4шт.

47

A50011

SLEEVE

- dowel

2шт.
