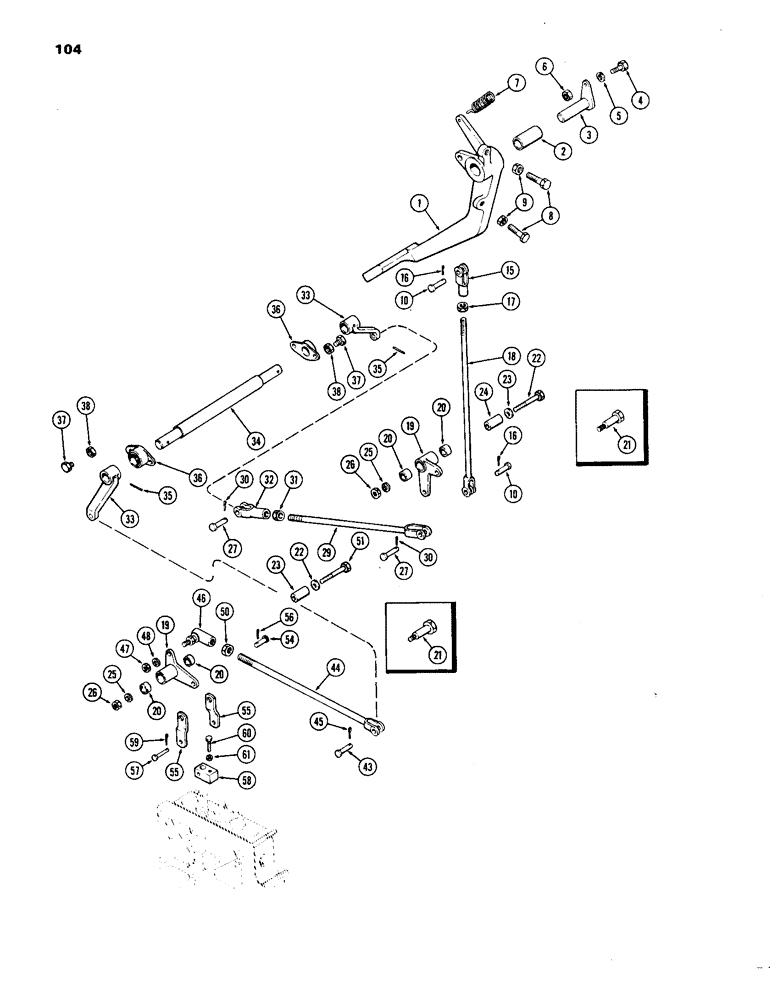

Запчасти Case IH 1270 (104) - FOOT CLUTCH LINKAGE (06) - POWER TRAIN

1

A63359

PEDAL

ASSY. - foot clutch

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

A60305

SHAFT

- clutch pedal pivot

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Shaft keeper to pivot bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

7

A63361

SPRING

- clutch pedal return

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), clutch pedal stop bolt

2шт.

9

25-145

JAM NUT,Jam, 5/16"-18, G5

- (5/16" N.C. hex., jam)

2шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - (3/8" adjustable)

1шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.

18

A63020

ROD

-, Serial Range: pedal-bellcrank

1шт.

19

A63362

DIPPER

BELLCRANK ASSY. - clutch, intermediate & clutch spool

2шт.

20

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- clutch bellcrank

2шт.

21

A63026

BOLT

- bellcrank (Order 13-640 bolt, A64345 sleeve and 95-5 washer)

2шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- bellcrank, (3/8 x 2-1/2" N.C. hex.)

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

2шт.

24

A65345

SHAFT

SLEEVE - bellcrank bolt (1st used trac. ser. no. 8716071)

2шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

29

A63020

ROD

- bellcrank to cross shaft

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.

32

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - (3/8" adjustable)

1шт.

33

A64388

LEVER

- clutch operating

2шт.

34

A64387

SHAFT

- cross, clutch operating

1шт.

35

135-260

ROLL PIN

PIN - half groove (1/4 x 1-1/4"), Serial Range: lever-shaft

2шт.

36

A63366

SPHERICAL BEARING,19mm ID

BEARING - clutch cross shaft

2шт.

37

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Bearing to platform Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

38

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C.hex.)

4шт.

43

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

44

A63020

ROD

- lever to rear bellcrank

1шт.

45

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

46

A60307

JOINT

- ball (3/8")

1шт.

47

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

48

92-6

LOCK WASHER,3/8"

1шт.

54

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

55

A63367

LINK

- clutch spool bellcrank

2шт.

56

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

57

A8824

PIN

- clevis (return lever &, Serial Range: link-spool)

1шт.

58

A63368

LEVER

- clutch spool return

1шт.

59

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

60

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd

1шт.

61

25-114

NUT,1/4"-28, G5

- hex. (1/4" N.F.)

1шт.
