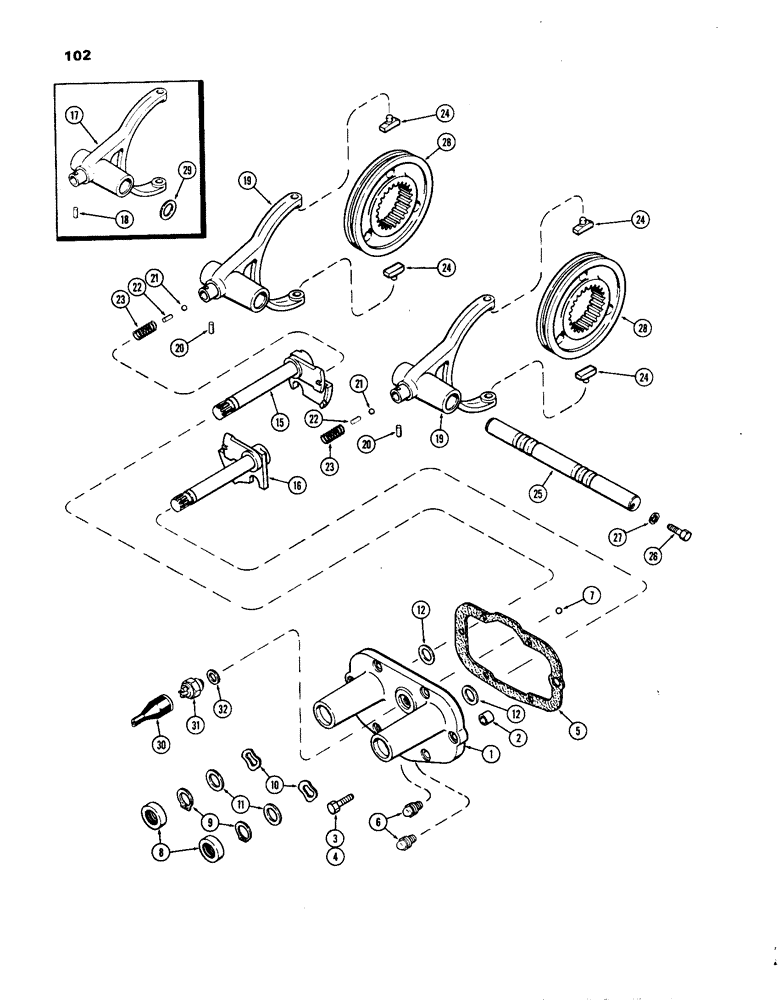

Запчасти Case IH 1270 (102) - RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A64066

HOUSING

- shifter

1шт.

2

A63167

SLEEVE

- dowel (shifter hsg. to trans. case)

1шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Shifter housing dowel sleeve) Hex, 3/8"-16 x 1 3/4", G5

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.) (shift hsg.)

5шт.

5

A64067

GASKET

- shifter housing

1шт.

6

A58420

GAUGE

- oil sight

2шт.

7

211-13

BALL,1/2" Dia

(neutral start) 1/2" Dia

1шт.

8

75008

OIL SEAL

- shifter shaft

2шт.

9

B18208

SNAP RING,#100, Ext

shifter shaft #100, Ext

2шт.

10

A63169

SPRING

- wave washer

2шт.

11

G46081

BEARING WASHER

WASHER - shifter shaft (1 x 1-1/2 x 1/32")

2шт.

12

A65121

SHIM,.005" Thk

Shift lever to housing (1" x 2") .005" Thk

1шт.

15

A64062

LEVER

- (1st & 2nd)

1шт.

16

A64064

LEVER

- (3rd & 4th)

1шт.

17

A63158

FORK

- gear shifter (Order A66104 fork, A66106 pin and 135-140 roll pin)

2шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Used prior to trans. S/N 2416014 1/8" x 3/4", Slotted

2шт.

19

A66104

LEVER

FORK - shifter (1st used trans. ser. no. 2416014)

2шт.

20

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN - groove, 1/4 x 7/8" (1st used trans. ser. no. 2416014)

2шт.

21

211-12

BALL,7/16 Dia

- 7/16" dia.) shifter fork

2шт.

22

A66106

PIN

- detent spring (1st used trans. ser. no. 2416014)

2шт.

23

A26530

SPRING

- detent

2шт.

24

A65101

FINGER

- gear shifter fork (Replaces A35928)

4шт.

25

A65079

RAIL - shifter (Used prior to trans. ser. no. 2416014)

1шт.

25

A66105

RAIL

- shifter (1st used trans. ser. no. 2416014)

1шт.

26

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.) rail to power shift carrier

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

A65305

COLLAR

- sliding (Used prior to trans. ser. no. 2416014)

2шт.

28

A66107

COLLAR

- sliding (1st used trans. ser. no. 2416014)

2шт.

29

A38660

GASKET

- shim, nylon (Used prior to trans. ser. no. 2416014)

1шт.

30

A20991

BOOT

- neutral start switch

1шт.

31

A20990

SWITCH

- safety, neutral start

1шт.

32

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.
