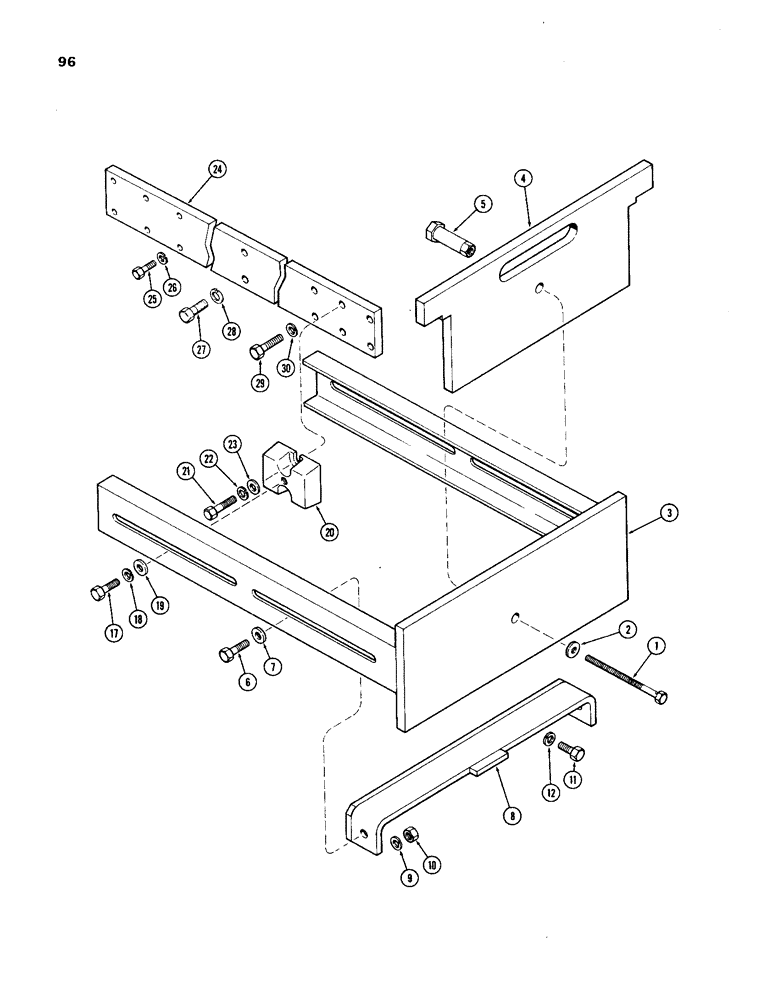

Запчасти Case IH 1270 (096) - FRONT END WEIGHTS (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A63820
BOLT
- front weight clamps (9") (Use with 5 thru 10 weights)
1шт.
1
A63821
BOLT
- front weight clamp (14") (Use with 11 thru 15 weights)
1шт.
2
A61341
WASHER
- front weight clamp
1шт.
3
A63817
HARNESS
SUPPORT - front end weight
1шт.
4
A61345
WEIGHT - front (75 lbs. each) (add on type) (Mach. Item)
1шт.
5
A61338
NUT
- tube, front weight clamp
1шт.
6
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
Front weight support to front cross brace Hex, 3/4"-10 x 2 1/4", G5
2шт.
7
A63819
WASHER
- channel to front cross brace
2шт.
8
A63812
BRACKET
BRACE - front weight
1шт.
9
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
10
25-1012
NUT,3/4"-10, G5
2шт.
11
13-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
Front cross brace to front end casting Hex, 3/4"-10 x 1 3/4", G5
2шт.
12
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
17
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
Front weight support to block Hex, 3/4"-10 x 2 1/4", G5
2шт.
18
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
19
A63819
WASHER
-, Serial Range: channel-block
2шт.
20
A63816
BLOCK
- front weight frame channel
2шт.
21
13-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
Block to side rail Hex, 3/4"-10 x 2 3/4", G5
4шт.
22
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
23
195-45
WASHER,3/4"
4шт.
24
A63796
HUB
RAIL - side
2шт.
25
113-782
BOLT - side rail, 5/8 x 2-1/2" N.C. hex. lock type (used w/cab)
12шт.
25
13-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
(Step and side rail) (used w/o cab) Hex, 5/8"-11 x 3", G5
4шт.
25
113-782
BOLT - side rail, 5/8 x 2-1/2" N.C. hex. lock type (used w/o cab)
8шт.
27
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
Rear support to side rail Hex, 3/4"-10 x 2 1/4", G5
4шт.
28
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
29
13-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
(Side rail to front end casting) Hex, 3/4"-10 x 2 3/4", G5
8шт.
30
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
Выбрано товаров: 29
