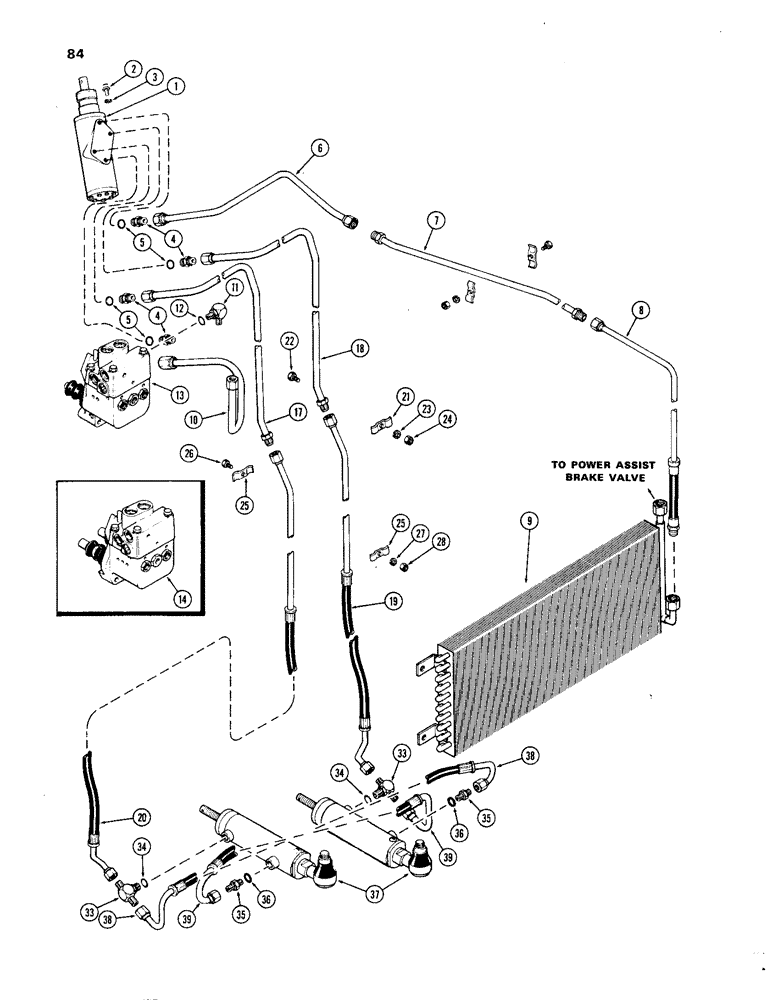

Запчасти Case IH 1270 (084) - HYDROSTATIC STEERING, STEERING MECHANISM (05) - STEERING

1

A66390

PUMP

ASSY. - hydrostatic steering (Replaces A63549) (See Figure 086 For Repairs)

1шт.

2

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - (5/16 x 3/4" Ferry Cap), control pump to steering column

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - male, straight thread, Includes: Ref. 5

4шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

A63654

TUBE

- steering return (steering pump to center) oil cooler inlet tube)

1шт.

7

A63655

TUBE

- oil cooler inlet (center)

1шт.

8

A63652

TUBE

- trans. oil cooler inlet (front)

1шт.

9

A63651

COOLER

- oil, transmission (See Figure 012)

1шт.

10

A66431

TUBE

- steering valve inlet (Replaces A63321)

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy (in brake valve outlet port) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

13

REF

INSTRUCTION

VALVE ASSY. - power brake (used w/differential lock) (For Repairs See Figures 148 and 150)

1шт.

14

REF

INSTRUCTION

VALVE ASSY. - power brake (used w/o differential lock) (For Repairs See Figures 152 and 154)

1шт.

17

A63550

TUBE

- steering valve (Right Turn)

1шт.

18

A63551

TUBE

- steering valve (Left Turn)

1шт.

19

A63552

HOSE ASSY.

HOSE - L.H. steering cylinder

1шт.

20

A63553

HOSE

- R.H. steering cylinder

1шт.

21

A63323

CLAMP

- tube (steering, Serial Range: tube-firewall)

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), clamp to firewall

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

25

A63323

CLAMP

- hose (R.H. to L.H. steering hose)

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamps Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.

1шт.

33

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

- branch, Includes: Ref. 34

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - (15/32 x 25/32 x 5/32")

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR, HYD, , Assy 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - (15/32 x 25/32 x 5/32")

1шт.

37

A62067

CYLINDER

ASSY. - steering (See Figure 088)

2шт.

38

A63644

HOSE

- cylinder crossover, lower

1шт.

39

A63645

HOSE

- cylinder crossover, upper

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32"), Includes: Ref. 13

1шт.
