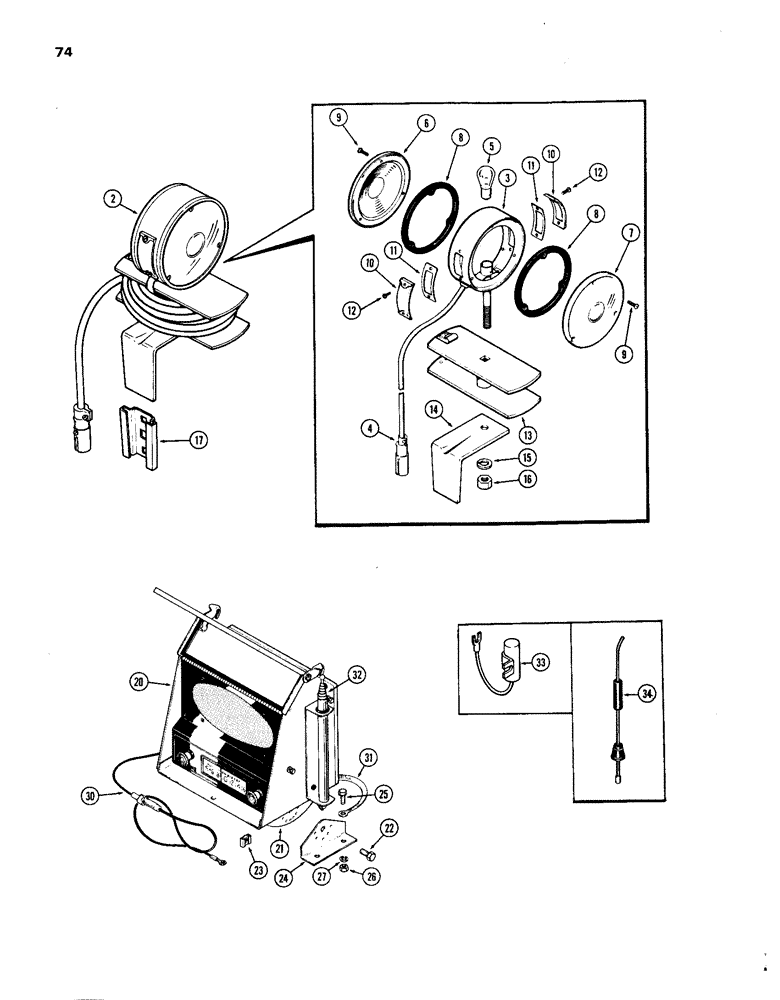

Запчасти Case IH 1270 (074) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

A11066M

LAMP ATTACHMENT - warning, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066M)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (order A11066M)

1шт.

4

B50259

PLUG

- (to auxiliary socket)

1шт.

5

33686

BULB

- lamp (21 C.P.)

1шт.

6

B50337

LENS

- lamp (amber)

1шт.

7

B53962

LENS

- lamp (red)

1шт.

8

B50317

GASKET - lens

2шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6 x 1/2" N.C. rd. hd.

6шт.

10

B50328

LENS - lamp, side (clear)

2шт.

11

B50329

GASKET - side lens

2шт.

12

182-43

SCREW - #6 x 5/16" N.C. rd. hd.

4шт.

13

B50330

SPOOL - lamp cord reel

1шт.

14

B50331

BRACKET - lamp mounting

1шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

17

A8179

SOCKET

- lamp positioning

1шт.

A135620

RADIO

ASSY. - fender mounted

1шт.

20

NSS

NOT SOLD SEPARAT

RADIO, fender mounted

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - mounting, fender

1шт.

22

113-161

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

Fender mounted Hex, 5/16"-18 x 3/4", G2

2шт.

23

131-613

NUT - cage, 5/16" N.C., fender mounted

2шт.

24

NSS

NOT SOLD SEPARAT

BRACKET -, Serial Range: mounting-fender

2шт.

25

113-162

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- 5/16 x 1" N.C. hex., fender mounted

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

Fender mounted 5/16"-18, G5

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Fender mounted 5/16"

4шт.

30

NSS

NOT SOLD SEPARAT

WIRE ASSY. - lead (includes fuse), fender mounted

1шт.

223-36

FUSE,2 Amp, Type 3AG

- 5 amp. 1-1/4" long, fender mounted

1шт.

31

NSS

NOT SOLD SEPARAT

STRAP - ground, fender mounted

1шт.

32

NSS

NOT SOLD SEPARAT

ANTENNA, fender mounted

1шт.

33

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator, fender mounted

1шт.

34

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (Gas Only), fender mounted

1шт.
