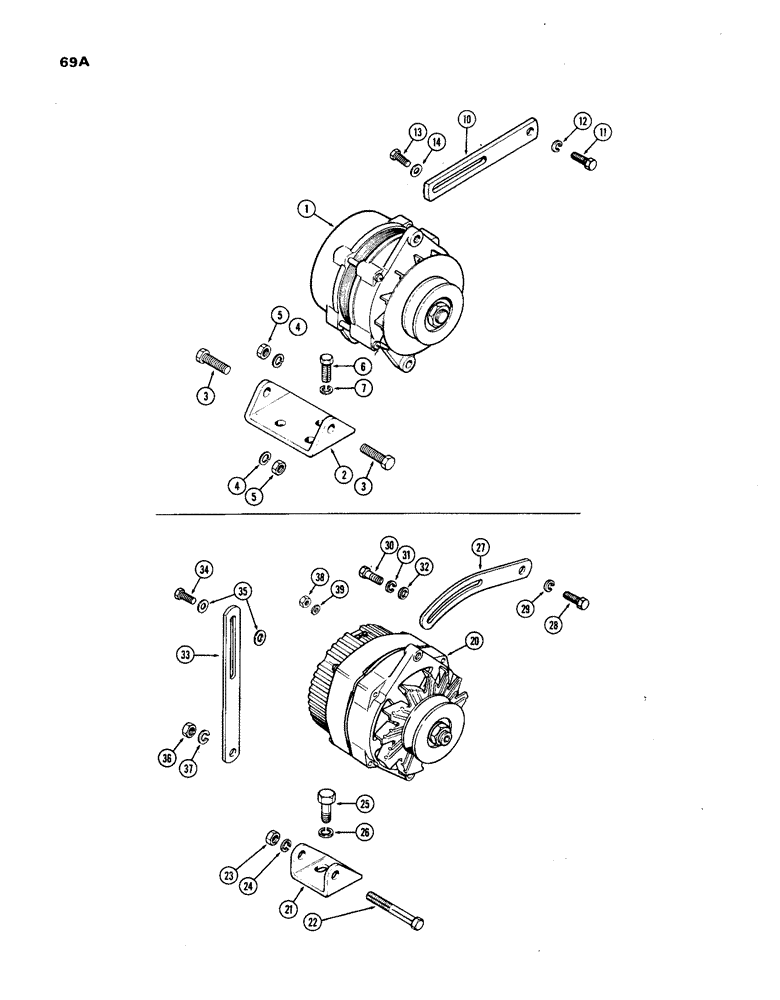

Запчасти Case IH 1270 (069A) - ALTERNATOR MOUNTING, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A61062

SPARE PART ALTERNATOR - (Eltra #ALH-5307S) (See Figure 070)

1шт.

2

A61063

BRACKET

BRACKET - alternator mounting

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

8

A59167

STRAP

STRAP - alternator adjusting

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

12

195-521

WASHER,5/16", SAE

WASHER - 11/32 x 11/16 x 1/16"

1шт.

15

A135715

ALTERNATOR

ALTERNATOR - 55 amp. (Delco #1102867) (Prod. Only) (Order A45202) (See Figure 071A)

1шт.

15

A45202

ALTERNATOR

ALTERNATOR - 61 amp. (Delco #1100585) (For Service) (See Figure 071A)

1шт.

15

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

15

103801A1C

CORE-ALTERNATOR

Return Number, 2 Volt, 61 Amp Alternator

1шт.

16

A61063

BRACKET

BRACKET - alternator mounting

1шт.

17

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Mounting bracket to timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

22

A59167

STRAP

STRAP - alternator adjusting

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

25

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

26

195-521

WASHER,5/16", SAE

WASHER - 11/32 x 11/16 x 1/16"

2шт.

27

129-18

NUT,#12-24

NUT - hex. (alt. terminal) #12-24

1шт.

28

192-17

LOCK WASHER,#12

Washer, Lock, , Alternator terminal #12

1шт.
