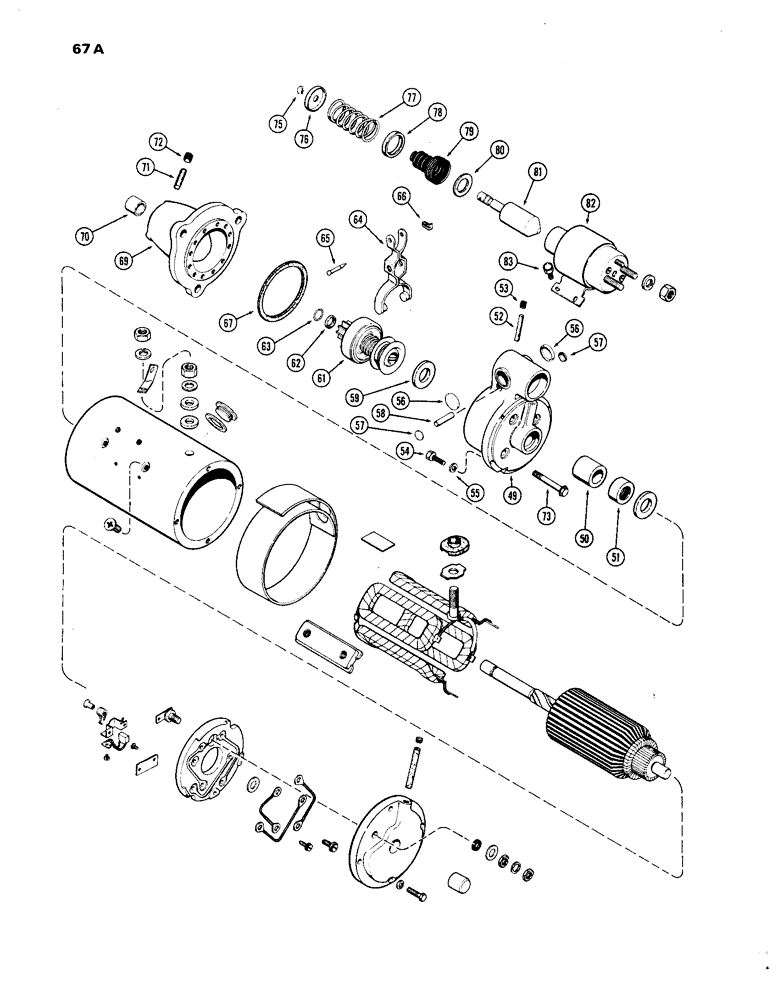

Запчасти Case IH 1270 (067A) - A59217 STARTER, 451BDT, DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8696753 (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY., Includes: Ref. 49 - 83 and 2 - 40 on Fig. 66

1шт.

49

A42325

HOUSING ASSY. - shift lever

1шт.

50

A40944

BUSHING

- lever housing

1шт.

51

A25407

OIL SEAL

OIL SEAL

1шт.

52

A41417

WICK

- oil

1шт.

53

221-1849

PLUG

- oil hole

1шт.

54

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

55

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

56

A42013

PLUG

- expansion (1-3/16" dia.)

2шт.

57

A42064

PLUG

- expansion (5/8" dia.)

2шт.

58

A25402

STUD

SHAFT - shift lever

1шт.

59

R15043

WASHER

- brake (25/32 x 2 x 3/32")

1шт.

61

A42331

DRIVE

ASSY. - starter

1шт.

62

R15049

COLLAR

- pinion stop

1шт.

63

R15048

RING

- pinion stop retainer

1шт.

64

A25398

LEVER

- shift, drive assy.

1шт.

65

A25400

PIN

- shift, Serial Range: lever-plunger

1шт.

66

A25406

OIL SEAL

RETAINER - pin, shift lever

1шт.

67

A41508

GASKET

- lever housing to drive housing

1шт.

69

A25347

HOUSING ASSY. - drive end

1шт.

70

A40868

BUSHING

- armature

1шт.

71

R15023

WICK

- oil

1шт.

72

221-1041

PLUG

- oil hole

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW ASSY. - housing

4шт.

75

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger #37, Ext

1шт.

76

R21571

RETAINER

- spring (w/13/32" hole)

1шт.

77

A41242

SPRING

- plunger

1шт.

78

R21572

RETAINER

- spring (w/1-13/64" hole)

1шт.

79

A42308

BOOT

- solenoid

1шт.

80

A42008

WASHER

- retainer (31/32 x 1-7/16 x 1/32")

1шт.

81

A25394

PLUNGER

- solenoid

1шт.

82

A42326

SOLENOID

ASSY. - (See Figure 068)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting (1/4 x 23/64" N.C. hex.)

2шт.
