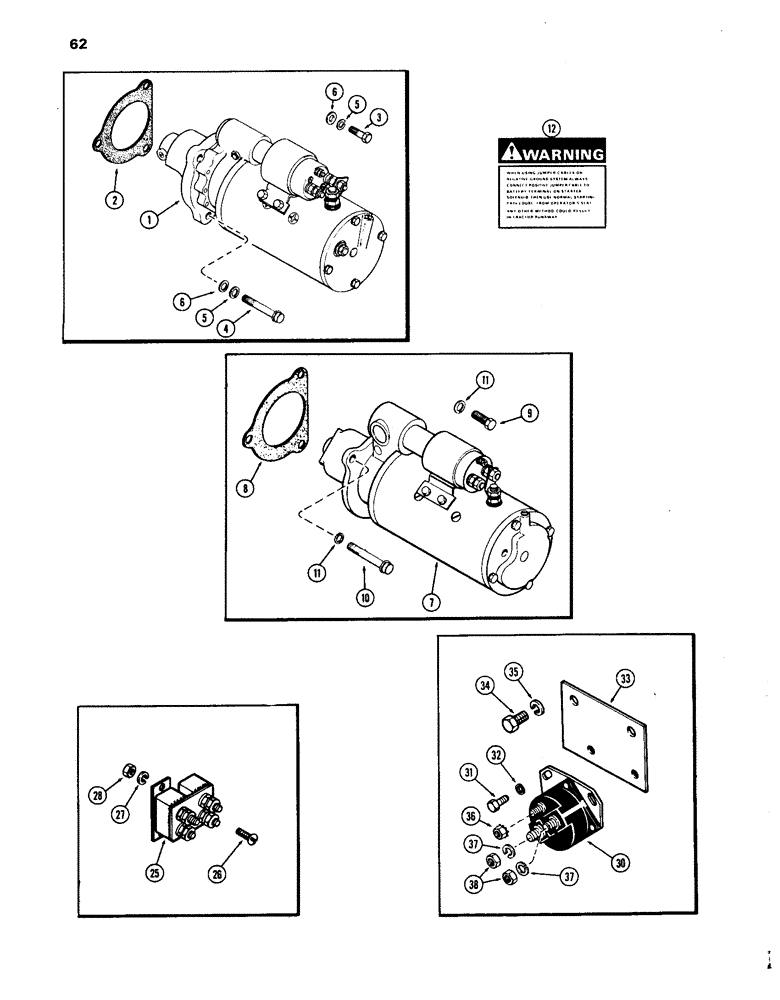

Запчасти Case IH 1270 (062) - ELECTRICAL EQUIPMENT MOUNTING, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A64907

ELECTRIC MOTOR

STARTER - (1st used trac. SN8696753) (See Figure 064 and 065A)

1шт.

1

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

A27933

GASKET

GASKET - starting motor

1шт.

3

113-2415

X

BOLT - 1/2 x 1-3/4" N.C. hex. (Jay-Lock)

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

6

L30674

WASHER

WASHER - 17/32 x 1 x 1/8"

3шт.

7

A59217

STARTER MOTOR

STARTER - (Used prior to trac. SN8696753) (Order A64907) (See Figure 067A)

1шт.

8

A27933

GASKET

GASKET - starting motor

1шт.

9

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - 1/2 x 1-1/2" N.C. hex. (Nylok)

2шт.

10

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. ferry cap

1шт.

11

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

12

321-2788

DECAL

DECAL - "Warning", jumper cable starting

1шт.

25

A59704

BREAKER

BREAKER - circuit

1шт.

26

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - #8 x 3/8" N.C. rd. hd.

2шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

28

129-16

NUT,#8-32

NUT, #8-32

2шт.

30

A39079

SOLENOID

SOLENOID - manifold heater

1шт.

31

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

A60880

SPARE PART PLATE - heater solenoid to engine block

1шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

36

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10 N.F. hex., keps

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.
