Запчасти Case IH 1270 (060) - BATTERY, CABLES, BATTERY BOX, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

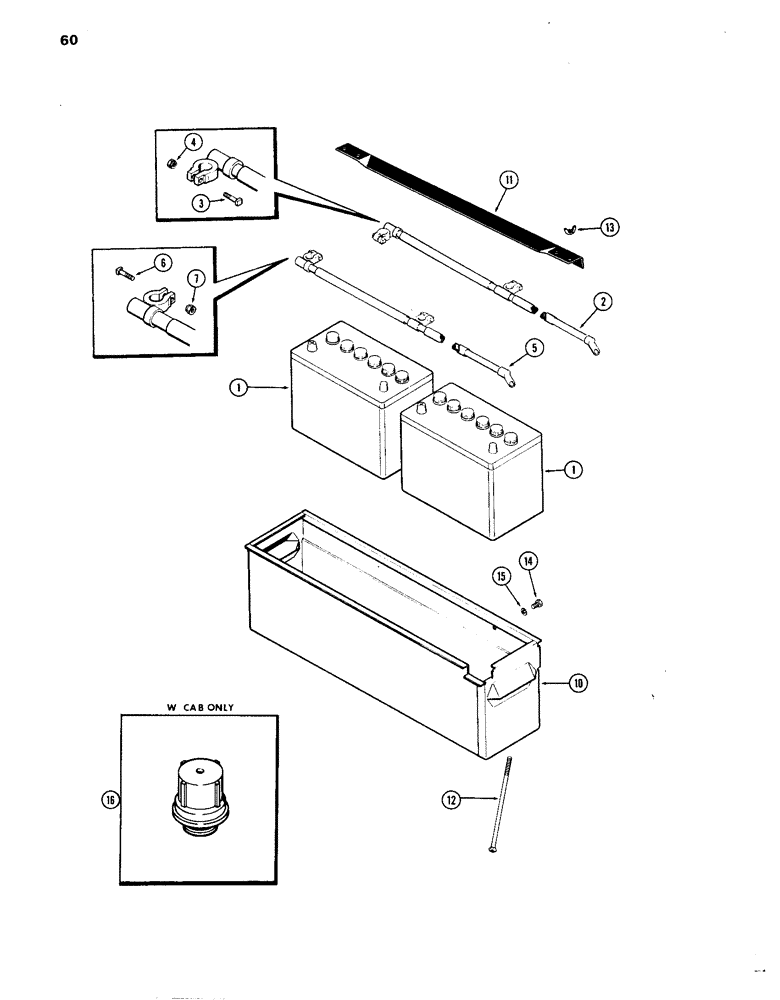

Схема запчастей Case IH 1270 - (060) - BATTERY, CABLES, BATTERY BOX, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
16
12
10
1
14
4
5
1
2
3
13
7
6
15
11

Артикул

Название

Примечание

Количество

1

A38411

DRY BATTERY

- 12 V., used w/o cab

2шт.

2

A60878

BATTERY

- 12 V., used w/cab (w/non-spill cap)

2шт.

2

A59728

CABLE

ASSY. - battery negative (ground), Includes: Ref. 3 and 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

4

129-516

NUT

- 5/16" N.C. hex.

2шт.

5

A65817

CABLE

ASSY. - battery positive (64") (Replaces A62141), Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

7

129-516

NUT

- 5/16" N.C. hex.

2шт.

10

A62137

BOX

ASSY. - battery

1шт.

11

A59173

CLAMP

- battery hold down

1шт.

12

11-5160

BOLT

- 5/16 x 10" N.C. carr.

2шт.

13

G49020

NUT

- 5/16" N.C. wing

2шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 x 7/8" N.C. hex.

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

A60553

CAP

- battery, non-spill vent

12шт.

Выбрано товаров: 15
