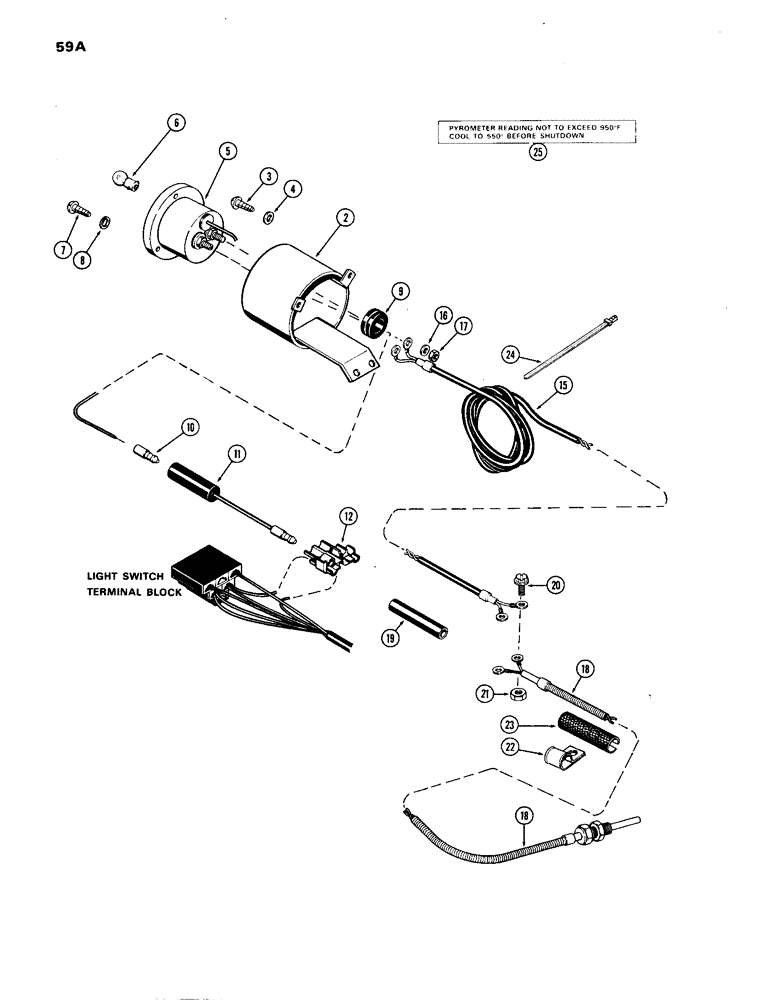

Запчасти Case IH 1270 (059A) - PYROMETER KIT, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A62554

ELECTRICAL GAUGE

PYROMETER ATTACHMENT, Includes: Ref. 2 - 25

1шт.

2

A62558

TUBE

- mounting, pyrometer

1шт.

3

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - #8-32 x 1/2" self-tapping

4шт.

4

195-510

WASHER,#8

- 3/16 x 7/16 x 1/16"

4шт.

5

A76278

ELECTRICAL GAUGE

PYROMETER - engine exhaust

1шт.

6

T29381

BULB

BULT - 12 volt (Mfrs. #1816)

1шт.

7

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - #6-32 x 3/4" self-tapping

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

A27338

GROMMET

wire harness

1шт.

10

L10051

TERMINAL CONNECTOR,Male

TERMINAL - light wire

1шт.

11

A62555

ELECTRICAL WIRE

WIRE - pyrometer light

1шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR - bullet, light wire

1шт.

15

T39218

HARNESS

- wire

1шт.

16

195-15

WASHER,#12

- 1/4 x 1/2 x 1/16"

2шт.

17

129-502

NUT,1/4"-28, Brass

2шт.

18

T29217

THERMOCOUPLE - pyrometer

1шт.

19

T39219

BOOT

- connector

1шт.

20

175-57

SCREW,Sl Truss Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" truss hd.

2шт.

21

86625057

NUT,#10-24, GB

NUT - #6-24 self-locking

2шт.

22

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- lead wire

2шт.

23

A12458

SLEEVE

- wire harness

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, wire harness

1шт.

25

321-1778

DECAL

- pyrometer temperature reading

1шт.
