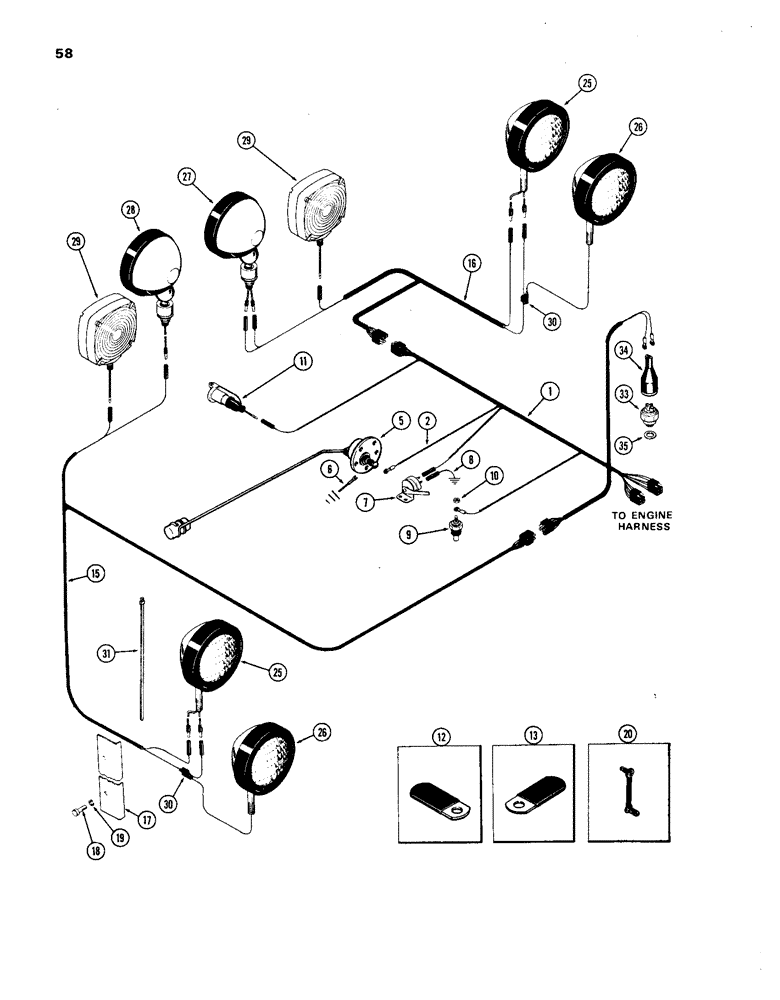

Запчасти Case IH 1270 (058) - ELECTRICAL EQUIPMENT AND WIRING, 451BDT, DIESEL ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A63738
WIRE HARNESS
HARNESS - transmission wire (Order A65812 & A65813)
1шт.
1
A65813
HARNESS
- trans. wire (less fuel gauge sender wire)
1шт.
2
A65812
ELECTRICAL WIRE
WIRE - harness to fuel gauge sender (32" lt. blue)
1шт.
5
A63704
TRANSMITTER
UNIT - fuel gauge sending
1шт.
6
A63739
ELECTRICAL WIRE
WIRE - fuel gauge sender ground
1шт.
7
A33977
SWITCH
- hand brake warning
1шт.
8
A59711
ELECTRICAL WIRE
WIRE - hand brake switch ground
1шт.
9
A21462
SENDER UNIT
SENSOR - transmission temperature
1шт.
10
129-661
NUT
- #10 N.F. hex., brass
1шт.
11
REF
INSTRUCTION
SOCKET - auxiliary outlet (See Figure 080)
1шт.
12
A37179
CLIP
- trans. sending wire
1шт.
13
A22880
CLIP
- trans. wire harness & fuel sending wire
1шт.
15
A63740
HARNESS
- fender wire, R.H.
1шт.
16
A63741
HARNESS
- fender wire, L.H.
1шт.
17
A63744
GUARD
SHIELD - fender wire harness (w/12" fender)
2шт.
17
A60893
GUARD
SHIELD - fender wire harness w/24" fender)
2шт.
18
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
4шт.
19
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
20
A62547
CLAMP
- fender, Serial Range: wires-fender
1шт.
25
A64498
LAMP
- front head driving (See Figure 076)
2шт.
26
A59724
HEADLAMP
LAMP - front cultivator (See Figure 078) (w/12" fender)
2шт.
26
A59723
LAMP
- front cultivator (See Figure 078) (w/24" fender)
2шт.
27
A59703
LAMP
- rear flood & tail (See Figure 080)
1шт.
28
A63822
HEADLIGHT
LAMP - rear flood (See Figure 080)
1шт.
29
REF
INSTRUCTION
LAMP - flasher (Order from Figure 072)
1шт.
30
A62556
CONNECTOR, ELEC
CONNECTOR - splice, cultivator lamp
2шт.
31
L11541
CABLE TIE,203.2mm L, Nylon
STRAP - harness, rear light wire
1шт.
33
A20990
SWITCH
- safety, neutral start
1шт.
34
G49402
SHIM,.010" Thk
Neutral start switch .010" Thk
1шт.
35
A20991
BOOT
- neutral start switch
1шт.
Выбрано товаров: 30
