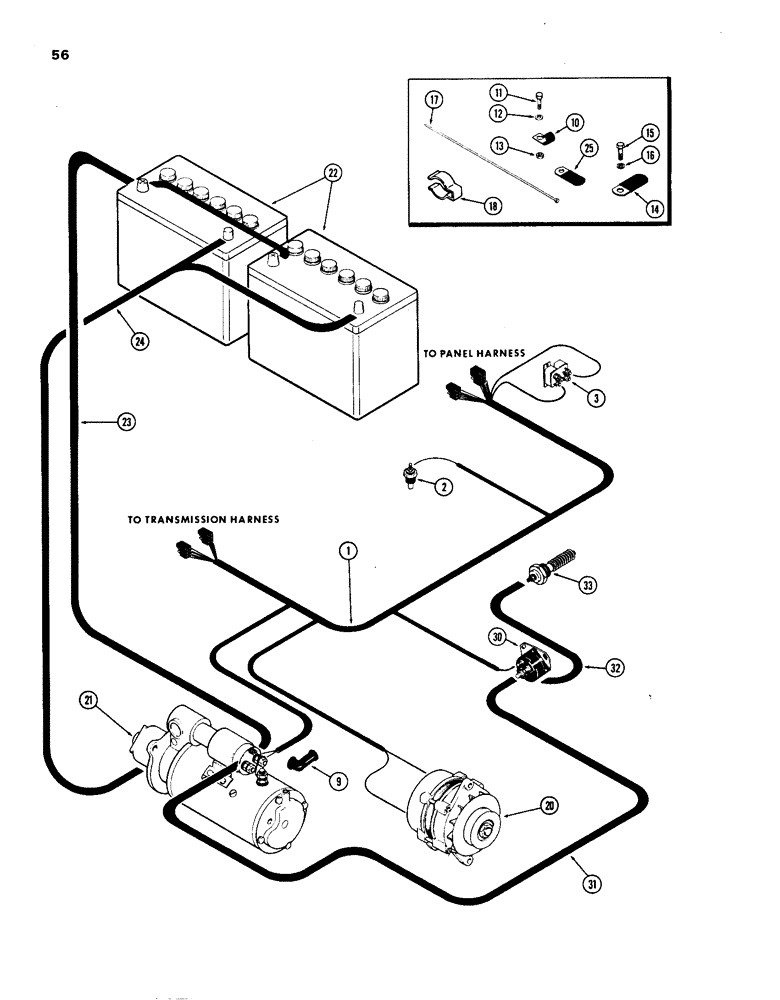

Запчасти Case IH 1270 (056) - ELECTRICAL EQUIPMENT AND WIRING, 451BDT, DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A65986

HARNESS

- engine wire (1st used eng. ser. no. 2529467)

1шт.

1

A63737

HARNESS

- engine wire (used prior to eng. ser. no. 2529467)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending

1шт.

3

A59704

BREAKER

- circuit (See Figure 062)

1шт.

9

A21753

CAP

- starter, positive terminal & heater solenoid, battery terminal, rubber

2шт.

10

A59718

CLAMP

CLIP - engine wire harness

1шт.

11

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - 5/16 x 5/8" std. pan hd. mach.

1шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

A37179

CLIP

- alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - engine wire harness

1шт.

18

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 069A)

1шт.

21

REF

INSTRUCTION

STARTER ASSY. - (See Figure 064)

1шт.

22

A38411

DRY BATTERY

- 12 V. (used w/o cab) (See Figure 060)

2шт.

22

A60878

BATTERY

- 12 V. (used w/cab) (w/non-spill caps) (See Figure 060)

2шт.

23

A62141

ELECTRIC CABLE

CABLE - battery, positive

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.

30

A39079

SOLENOID

- manifold heater, (Optional)

1шт.

31

A59713

ELECTRICAL WIRE

WIRE - heater solenoid to starter, manifold, (Optional)

1шт.

32

A59712

WIRE - manifold heater to solenoid, (Optional)

1шт.

33

A37775

HEATER

- solenoid (See note), manifold, (Optional)

1шт.
