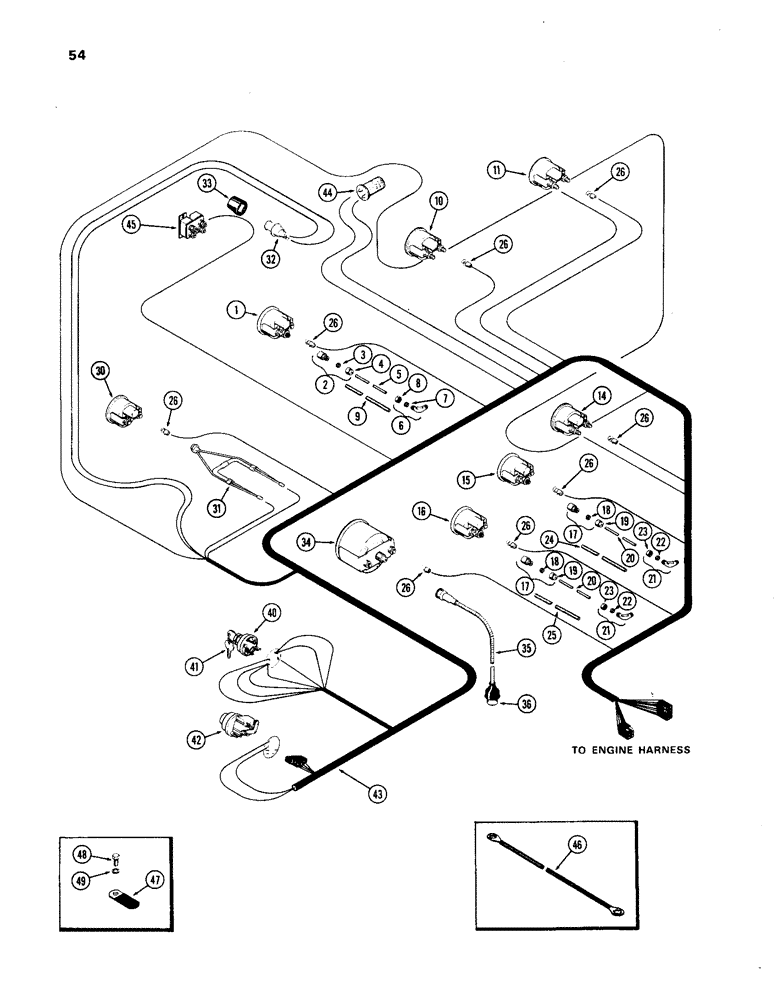

Запчасти Case IH 1270 (054) - INSTRUMENTS AND WIRING, 451BDT, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" O.D. x 1/8" P.T. (used prior to trac. SN 8731489), Includes: Ref. 3 and 4

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR - 3/16" O.D. x 1/8" P.T. (1st used trac. SN 8731489)

1шт.

3

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

5

A59679

TUBE

- oil pressure (1/8" O.D.) (Order A66386 222-11 & 222-41)

1шт.

5

A66386

TUBE

- oil pressure (3/16" O.D.) (1st used trac. SN 8731489)

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90deg., 1/8" O.D. x 1/8" P.T. (Use prior to trac. SN8731489), Includes: Ref. 7 and 8

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90deg., 3/16" O.D. x 1/8" P.T. (1st used trac. SN8731489), Includes: Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

61786

PRESERVATIVE

GAUGE - engine temperature

1шт.

11

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

14

A64491

ELECTRICAL GAUGE

GAUGE - transmission temperature

1шт.

15

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure (P.T.O.)

1шт.

16

A65062

GAUGE

- trans. oil filter pressure (Replaces A63732)

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T., Includes: Ref. 18 and 19

2шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- transmission pressure gauge

2шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90deg., 1/8" tube, 1/8" P.T., Includes: Ref. 22 and 23

2шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- transmission pressure gauge tube

1шт.

25

A63734

LOOM

- trans. filter pressure tube

1шт.

26

A14553

BULB

- gauges

8шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alternator warning lamp

1шт.

32

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12 V. flasher, red

1шт.

33

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

34

A63735

TACHOMETER

ASSY.

1шт.

35

A59691

CABLE

ASSY. - tachometer drive, Includes: Ref. 36

1шт.

36

A24523

KIT

- tachometer cable repair

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (Set of 2)

1шт.

42

A59694

SWITCH

ASSY. - lights (See Fig. 80)

1шт.

43

A63979

HARNESS - instrument panel wire

1шт.

44

A34867

FLASHER UNIT

- 12 V

1шт.

45

A59704

BREAKER

- circuit, 80 amp. (See Figure 062)

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.

47

A37179

CLIP

- instrument wire harness

1шт.

48

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

49

92-5

LOCK WASHER,5/16"

1шт.
