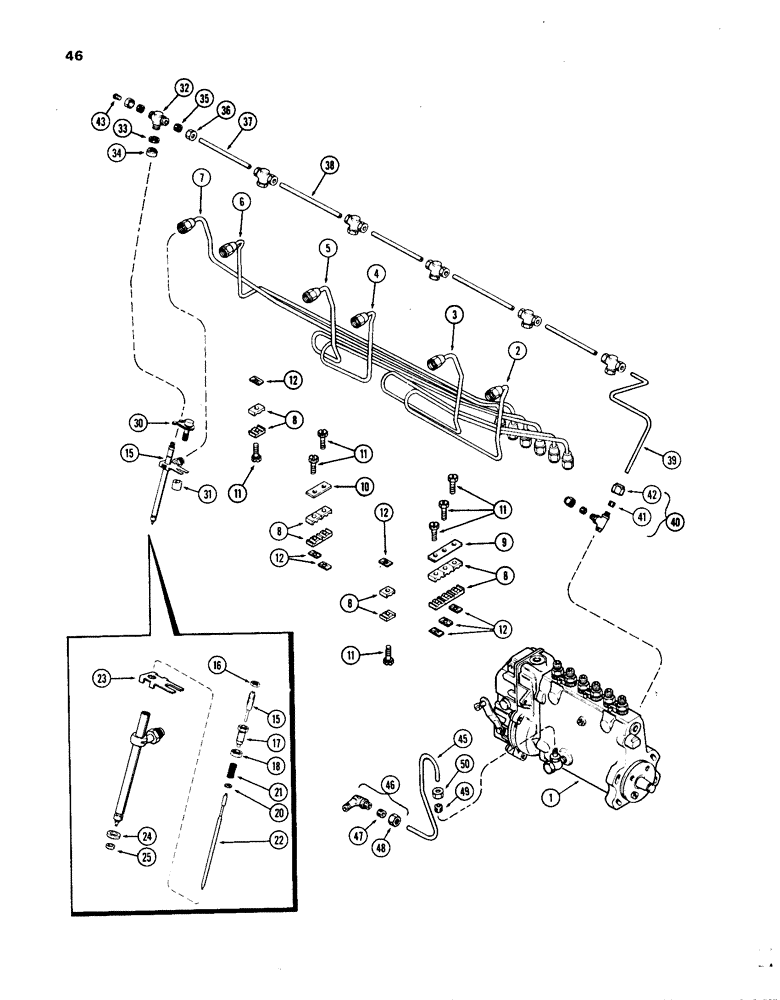

Запчасти Case IH 1270 (046) - FUEL INJECTION SYSTEM, 451BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A64104

PUMP ASSY. - fuel injection (See Figure 050)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY. - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY. - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. slotted hex. hd.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, Tinnerman

7шт.

14

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injection, (Supplier's No. 19745 stamped on body)

6шт.

Whenever nozzle is removed from head, the seal Ref. 25 and washer Ref. 25 must be replaced before nozzle is installed back in head

1шт.

A138322R

REMAN-INJECT NOZZLE

1270 (PRIOR TO S/N 8736001) (1/71-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

15

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

16

A43602

NUT

- lock, lift adjusting (#10-56 hex.)

1шт.

17

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

18

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex.)

1шт.

20

A44369

SEAT

- spring

1шт.

21

A43601

SPRING

- nozzle pressure adjusting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

Whenever nozzle is removed from head, the seal Ref. 25 and washer Ref. 25 must be replaced before nozzle is installed back in head

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Whenever nozzle is removed from head, the seal Ref. 25 and washer Ref. 25 must be replaced before nozzle is installed back in head

1шт.

30

A58695

CLAMP

ASSY. - nozzle

6шт.

31

A58696

SPACER

- nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

34

A58961

NUT

- cap

6шт.

35

222-102

SLEEVE,1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A59097

VALVE

- leak-off check (in injection pump)

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

43

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.

45

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
