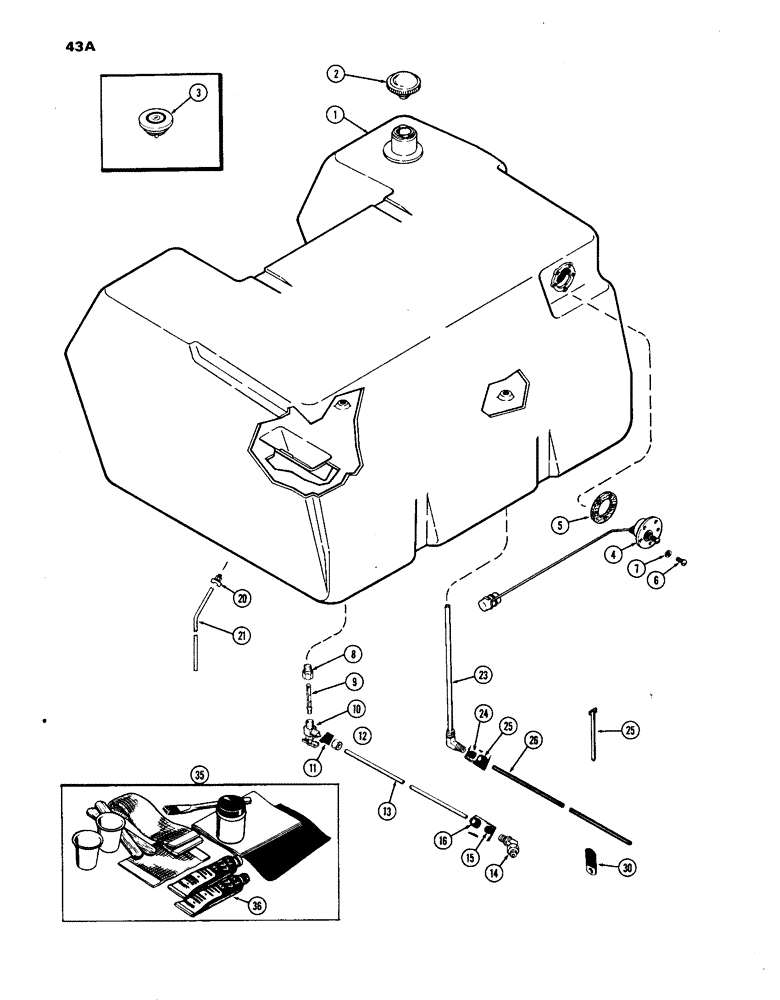

Запчасти Case IH 1270 (043A) - FUEL TANK AND LINES, 451 BDT, DIESEL ENGINE, NYLON MATERIAL, USED PRIOR TO TRACTOR S/N 8715153 (03) - FUEL SYSTEM

1

A63703

TANK

- fuel (Order A65889 tank & A65893 pipe Figure 042)

1шт.

2

A32119

CAP

- fuel tank filler (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

5

A11822

GASKET

- sensing unit

1шт.

6

185-523

SCREW - #10 - 32 x 7/8" rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- extension, 1/4 x 1/4"

1шт.

9

A64596

STRAINER ELEMENT

FILTER

1шт.

10

217-278

FITTING

VALVE ASSY. - fuel outlet & shut-off (Replaces A62354), Includes: Ref. 11 and 12

1шт.

11

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

12

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

13

A62320

TUBE

- tank outlet (1/4' I.D. x 105" nylon)

1шт.

14

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45deg., to hand primer pump, Includes: Ref. 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

20

A23656

COCK, DRAIN

VALVE - drain cock (1/4" P.T.)

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

1шт.

23

A62274

FITTING

PIPE ASSY. - fuel tank return port, Includes: Ref. 24 and 25

1шт.

24

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

25

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

26

A60722

TUBE

- injector to return port (3/16" I.D. x 102" nylon)

1шт.

27

A22883

CLIP

- tube

1шт.

35

A44265

KIT

- nylon fuel tank repair (also order A44266)

1шт.

36

A44266

KIT

ADHESIVE - tank repair, fuel, kit

1шт.
