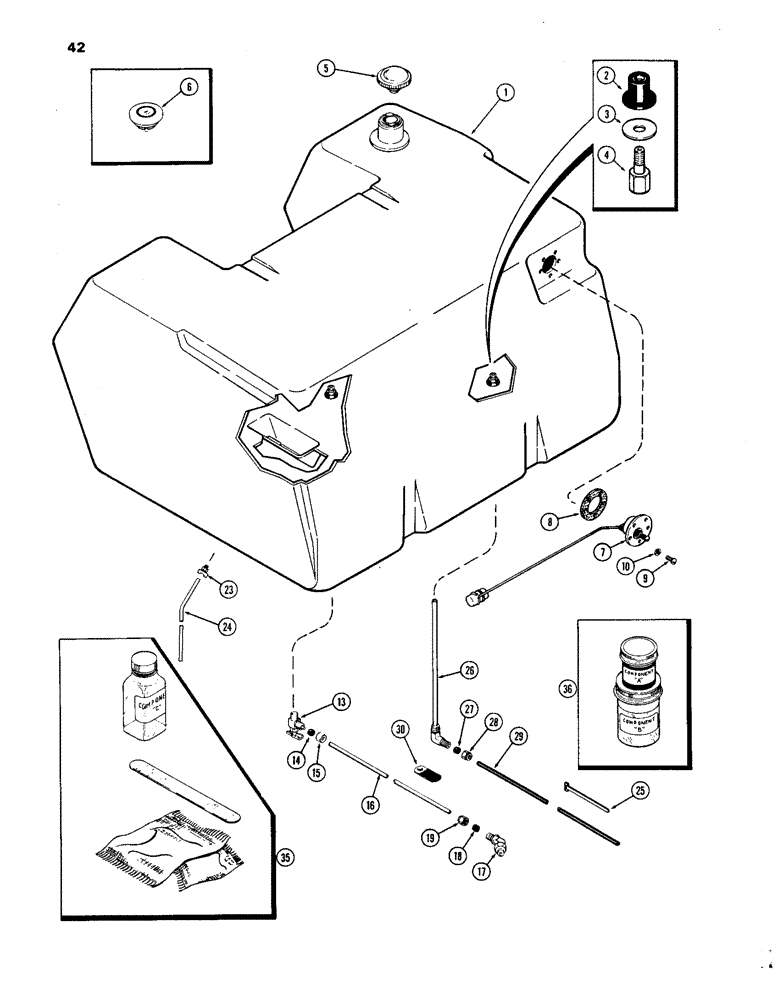

Запчасти Case IH 1270 (042) - FUEL TANK AND LINES, 451 BDT, DIESEL ENGINE, POLYETHYLENE MATERIAL, FIRST USED TRACTOR S/N 8715153 (03) - FUEL SYSTEM

1

A65889

TANK

ASSY. - fuel

1шт.

2

A65891

NO LONGER SERVICED

FASTENER - stud

3шт.

3

A65892

WASHER

- stud

3шт.

4

A65890

STUD,3/8" - 16 x 1/4" NPT

- fuel tank

3шт.

5

A32119

CAP

- fuel tank filler (See ref. 6)

1шт.

6

A32120

CAP

- fuel tank filler (w/lock)

1шт.

7

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

8

A11822

GASKET

- sending unit

1шт.

9

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- #10-32 x 3/4" rd. hd.

5шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

13

217-278

FITTING

VALVE ASSY. - outlet, 1/4" P.T. x 3/8" tube

1шт.

14

222-5186

SLEEVE,3/8" Tube

- plastic, 3/8" Tube

1шт.

15

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

16

A62320

TUBE

- tank outlet (1/4" I.D. x 105" lg.)

1шт.

17

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - tube to primer pump, 1/4" P.T. x 3/8" tube 45 deg.

1шт.

18

222-5186

SLEEVE,3/8" Tube

- plastic, 3/8" Tube

1шт.

19

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

23

A23656

COCK, DRAIN

VALVE - drain cock (1/4" P.T.)

1шт.

24

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, outlet tube

3шт.

26

A65893

PIPE

ASSY. - fuel tank return port

1шт.

27

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

28

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

29

A60722

TUBE

- injector return (3/16" I.D. x 102" lg. nylon)

1шт.

30

A22883

CLIP

-, Serial Range: tube-firewall

1шт.

35

A44635

KIT

- tank repair (also order A44636), fuel

1шт.

36

A44636

KIT

- sealant, fuel tank repair

1шт.
