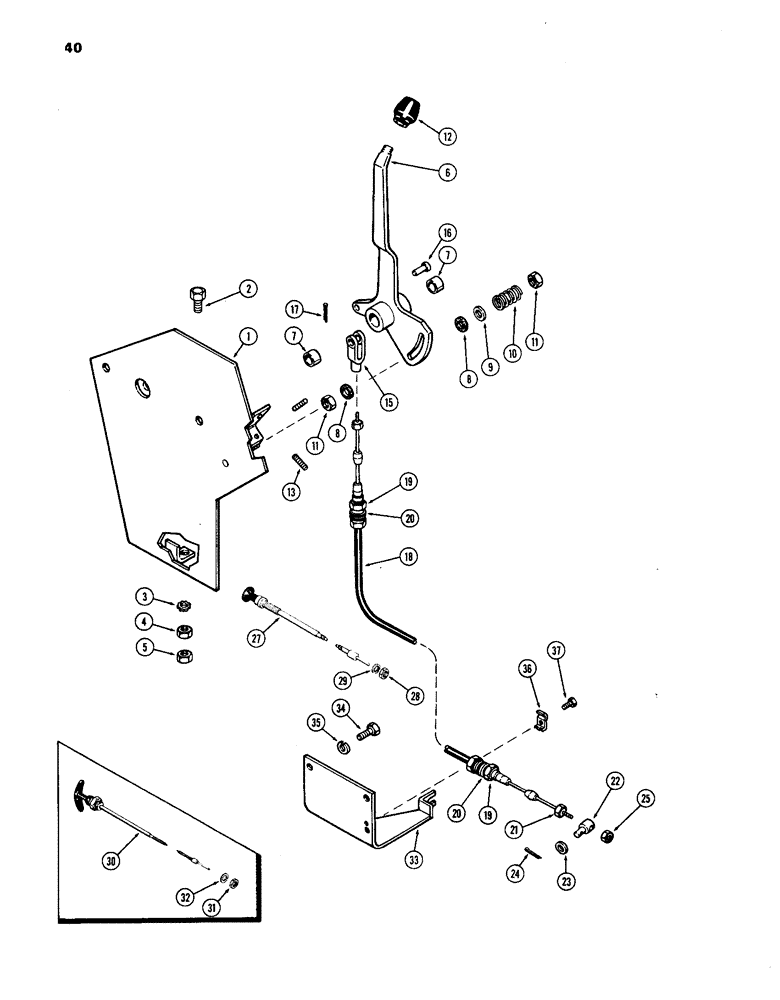

Запчасти Case IH 1270 (040) - THROTTLE CONTROLS, 451 BDT, DIESEL ENGINE (03) - FUEL SYSTEM

1

A65587

PLATE

ASSY. - console support (Replaces A63007)

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

3

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

5

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

1шт.

6

A63010

LEVER

ASSY. - throttle

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- 5/8 x 3/4 x 1/2" bronze

2шт.

8

A61069

DISC

- friction

2шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64"

1шт.

10

A65583

SPRING

- friction disc (black finish) (Replaces A26546)

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex., jam

2шт.

12

A65699

KNOB

- lever (Replaces A62078)

1шт.

13

A59433

SCREW,1/4" - 20 x 1 1/4"

- 1/4 x 1-1/4" N.C. sltd. set

2шт.

15

A63015

YOKE

- throttle cable

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

18

A63013

CABLE

- hand throttle

1шт.

19

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.F. hex., jam

4шт.

20

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof, 7/16" int.

4шт.

21

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex., jam

2шт.

22

A63014

PIVOT

- control cable

1шт.

23

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

24

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. keps

1шт.

27

A64850

LEVER

CONTROL - engine stop (Replaces A62403)

1шт.

28

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

30

A62403

CONTROL

- flexible stop (Order A64850)

1шт.

31

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

32

129-63

NUT - 3/8" N.C. hex., jam

1шт.

33

A63960

BRACKET

SUPPORT - stop cable mounting

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

B51765

CLIP

- stop cable

1шт.

37

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.C. rd. hd. mach.

1шт.
