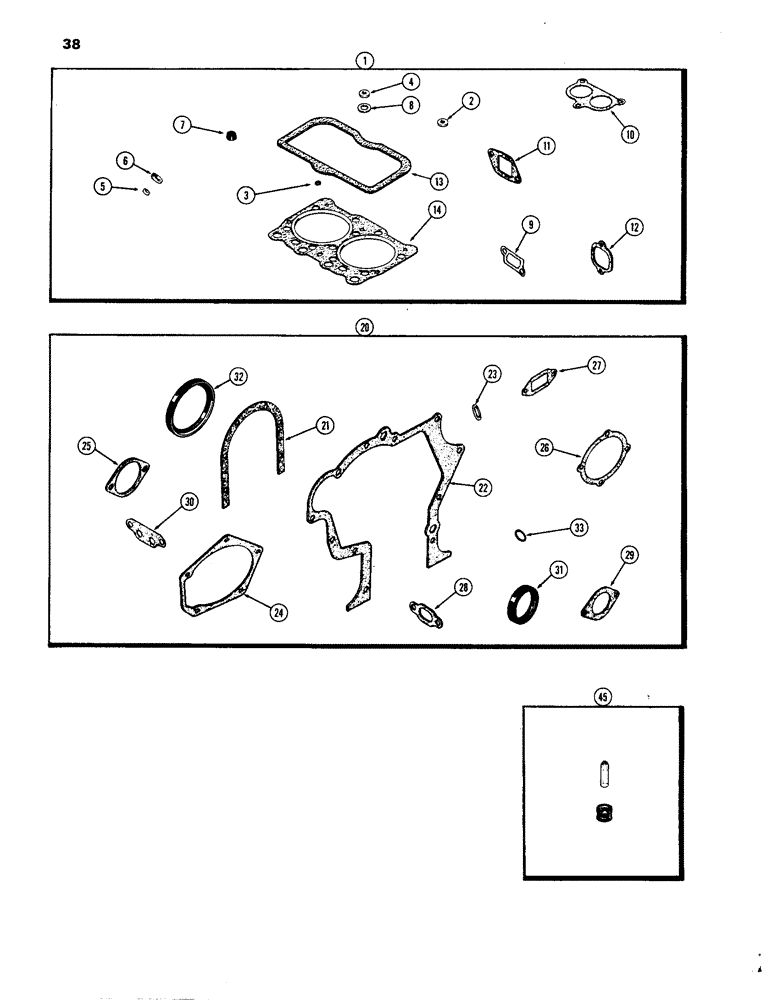

Запчасти Case IH 1270 (038) - ENGINE GASKET KITS, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A43077

KIT

GASKET KIT - valve grind

1шт.

For complete engine overhaul order 1-A43192, 1-A42096, 1-A43006, & 1-M20614

1шт.

2

A23684

GASKET

GASKET - valve cover stud

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

4

A34133

GASKET

- breather screw

3шт.

5

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon nozzle tip

6шт.

6

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold

6шт.

13

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

14

A64105

CYLINDER HEAD GASKET

- cylinder head, w/fire ring

3шт.

20

A42096

GASKET

KIT - cylinder block

1шт.

For complete engine overhaul order 1-A43192, 1-A42096, 1-A43006, & 1-M20614

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A58612

GASKET

- timing gear cover

1шт.

23

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

24

A58615

GASKET

- fuel pump cover

1шт.

25

A58617

GASKET

- aux. drive cover (Not Applicable)

1шт.

26

A58646

GASKET

- water pump body

1шт.

27

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

28

A58670

GASKET

- oil cooler water opening

1шт.

29

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump (Not Applicable)

1шт.

30

A58756

OIL PAN GASKET SET

- oil filter base (Not Applicable)

1шт.

31

A62049

OIL SEAL

- crankshaft front oil

1шт.

32

A62050

OIL SEAL

- crankshaft rear oil

1шт.

33

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base

3шт.

35

M20614

SEAL KIT

SET - valve seal tool

3шт.
