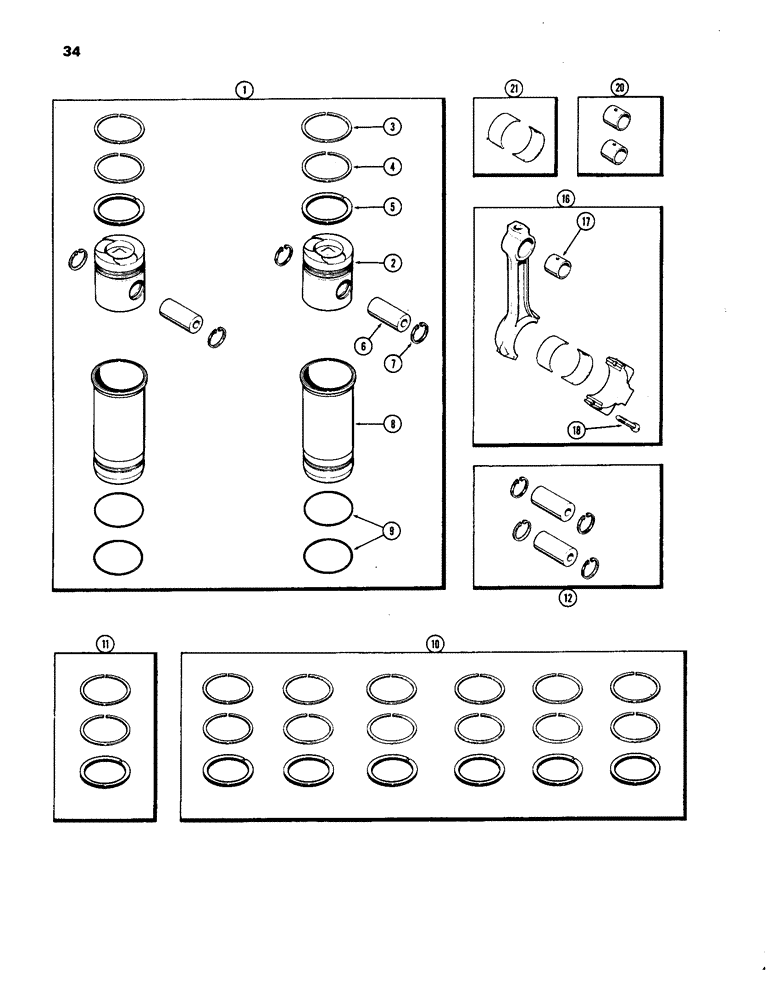

Запчасти Case IH 1270 (034) - PISTON ASSEMBLY AND CONNECTING RODS, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A43075

SLEEVE

PISTON & SLEEVE KIT - (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A65040

PISTON

PISTON - cylinder, 4-3/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st Groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd Groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom Groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A59093

SLEEVE

SLEEVE - piston (cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - piston sleeve

4шт.

10

A43074

RING, SET

RING KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A43073

RING

RING KIT - re-ring (Set of 1)

6шт.

12

A43095

PIN

PIN KIT - w/retaining rings (Set of 2) (Replaces A42471)

3шт.

16

A62954

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref. 17 and 18

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A66618

FLANGE BOLT

BOLT - 1/2 x 2-5/16" N.F. pt. hd. spec.

2шт.

20

A42491

BUSHING

BUSHING KIT - piston pin (Set of 2)

3шт.

21

A43173

BEARING LINER

INSERT ASSY. - connecting rod bearing (Std.)

6шт.

21

A43174

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002")

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY. - connecting rod bearing (-.010")

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY. - connecting rod bearing (-.020")

6шт.

21

A43177

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030")

6шт.
