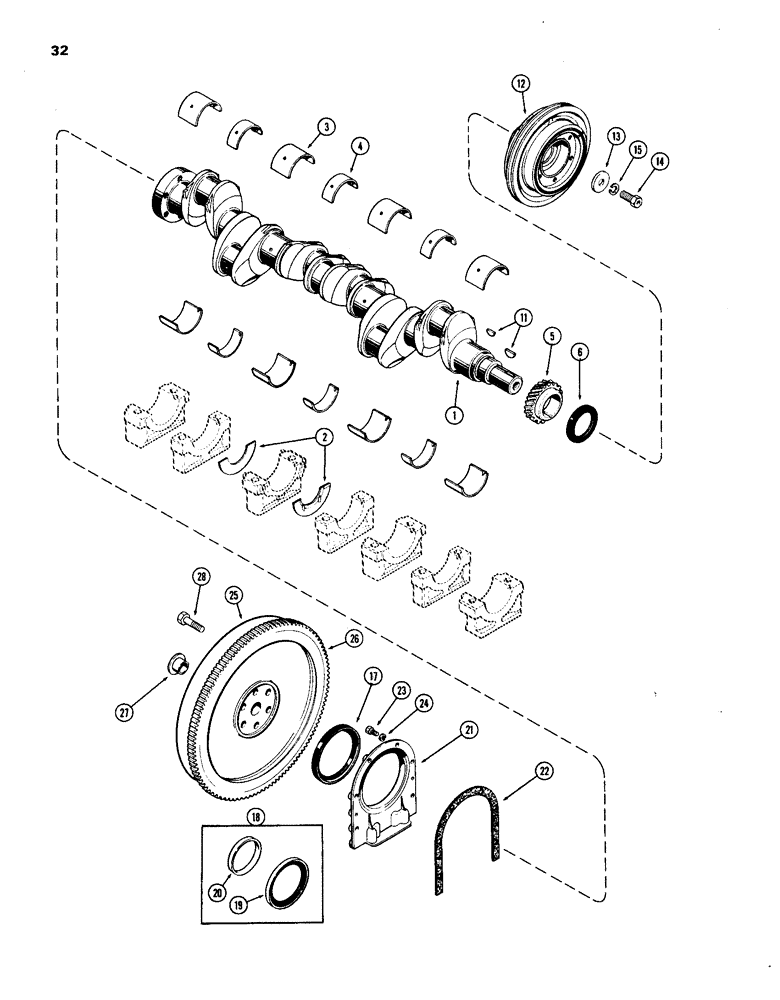

Запчасти Case IH 1270 (032) - CRANKSHAFT AND FLYWHEEL, 451 BDT, DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A64100
SHAFT
CRANKSHAFT - engine
1шт.
2
A62572
RING
WASHER - thrust, crankshaft (Std.) (Bronze)
2шт.
2
A42932
BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk
WASHER - thrust, crankshaft (.006" oversize) (bronze)
1шт.
3
A43163
BEARING LINER
LINER - main bearing, wide (Std.)
4шт.
3
A43164
BEARING LINER
LINER - main bearing, wide (-.002")
4шт.
3
A43165
BEARING LINER
LINER - main bearing, wide (-.010")
4шт.
3
A43166
BEARING LINER
LINER - main bearing, wide (-.020")
4шт.
3
A43167
BEARING LINER
LINER - main bearing, wide (-.030")
4шт.
4
A43158
BEARING LINER
LINER - main bearing, narrow (Std.)
3шт.
4
A43159
BEARING LINER
LINER - main bearing, narrow (-.002")
3шт.
4
A43160
BEARING LINER
LINER - main bearing, narrow (-.010")
3шт.
4
A43161
BEARING SET
LINER - main bearing, narrow (-.020")
3шт.
4
A43162
BEARING LINER
LINER - main bearing, narrow (-.030")
3шт.
5
A66404
GEAR
- crankshaft front (Replaces A58573)
1шт.
6
A62049
OIL SEAL
- crankshaft front, 2-5/8 x 3-5/8 x 15/32"
1шт.
11
126-129
WOODRUFF KEY,#C, 5/16" x 1 1/8", HT
2шт.
12
A64106
CRANKSHAFT
PULLEY - fan drive
1шт.
13
A27903
WASHER
- drive pulley
1шт.
14
88112
BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5
Drive pulley Hex, 5/8"-18 x 1 1/2", G5
1шт.
17
A62050
OIL SEAL
- crankshaft, rear (4-3/4 x 5-3/4 x 1/2") (See ref. 18)
1шт.
18
A43194
KIT
SEAL KIT - crankshaft wear
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL
1шт.
20
NSS
NOT SOLD SEPARAT
SLEEVE - wear
1шт.
21
A57457
RETAINER
- crankshaft rear oil seal
1шт.
22
A32830
GASKET
- retainer
1шт.
23
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
6шт.
24
92-6
LOCK WASHER,3/8"
6шт.
25
A63926
FLYWHEEL ASSY.
1шт.
26
A58778
GEAR
- ring, 139 teeth
1шт.
27
A63928
BUSHING
- P.T.O., Serial Range: shaft-flywheel
1шт.
28
28-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8
- 5/8 x 1-3/4" N.F. hex.
6шт.
Выбрано товаров: 32
