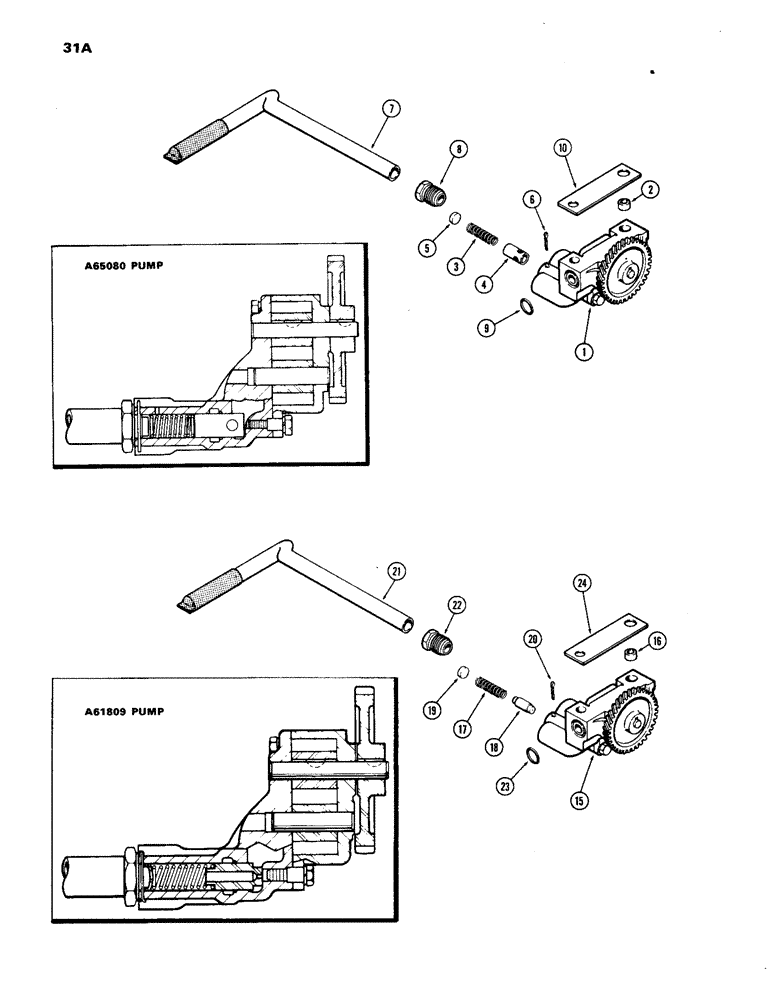

Запчасти Case IH 1270 (031A) - OIL PUMP, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A65080

PUMP

ASSY. - (Casting No. A65082) (Replaces A61809)

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve (35/74" dia. x 2-1/16" free length)

1шт.

4

A65083

VALVE

- relief (See Inset A)

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 45/64" cup, relief valve

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A66174

TUBE

ASSY. - oil suction, w/screen

1шт.

8

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare

1шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump port (59/64 x 1-1/32 x 7/64") (Repl. A58602)

1шт.

10

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

15

A61809

PUMP

ASSY. - (Casting No. A61807) (Order A65080)

1шт.

16

A58915

SLEEVE

- pump body

1шт.

17

A59111

SPRING

- relief valve (35/64" dia. x 2-1/16" free length)

1шт.

18

A34992

PISTON

VALVE - relief

1шт.

19

41-1011

PLUG,Cup, 11/16"

- 45/64 cup, relief valve

1шт.

20

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

21

A65483

SCREEN

TUBE ASSY. - oil suction, w/screen (Replaces A62911)

1шт.

22

222-510

TUBE NUT,1 1/4"-18

NUT - tube, 1" inverted flare

1шт.

23

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - port (59/64 x 1-1/32 x 7/64") (Replaces A58602)

1шт.

24

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
