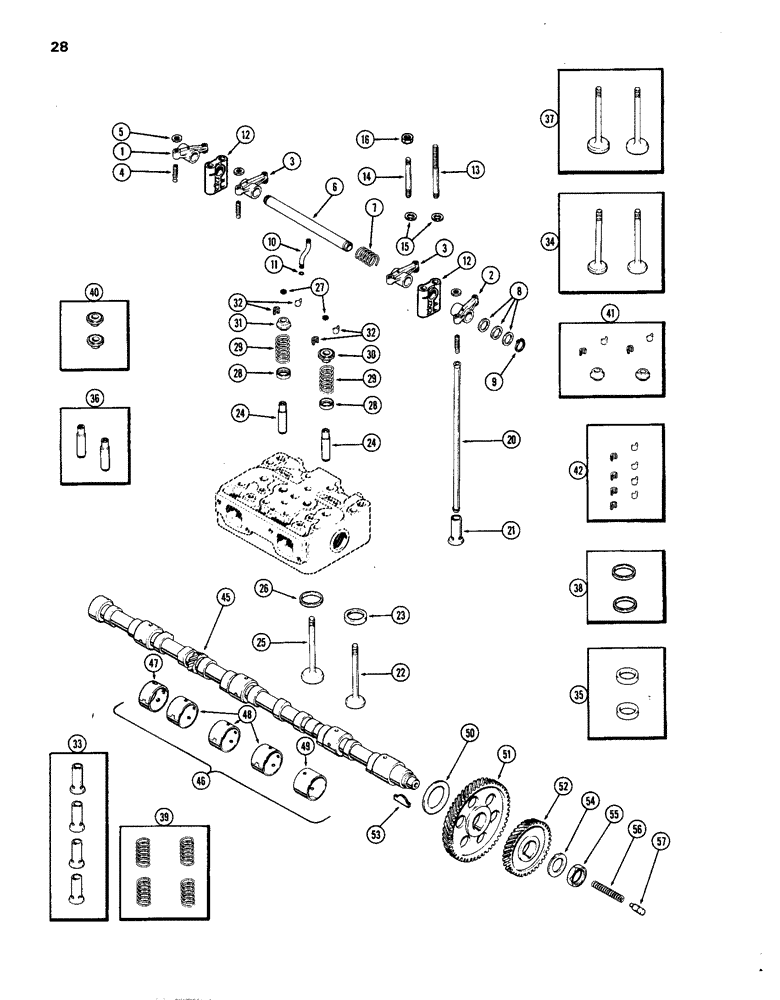

Запчасти Case IH 1270 (028) - VALVE MECHANISM AND CAMSHAFT, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve (1st, 3rd & 5th cylinders)

3шт.

2

A58656

ARM

- rocker, exhaust valve (2nd, 4th & 6th cylinders)

3шт.

3

A58634

ARM - rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

12шт.

6

A57532

SHAFT

ASSY. - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A60885

STUD

- 7/16" N.C. x 6-1/16"

6шт.

14

A58659

STUD

- 7/16" N.C. x 4-5/16"

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

12шт.

20

A58596

ROD

ASSY. - push

12шт.

21

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 33)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 34)

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 35)

6шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust valves (Order ref. 36)

2шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 37)

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 38)

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve springs (Replaces A58623)

12шт.

29

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valves (Order ref. 39)

12шт.

30

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 40)

6шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 41)

6шт.

32

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 42)

24шт.

33

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

3шт.

33

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

3шт.

34

A42130

VALVE

KIT - exhaust (Set of 2)

3шт.

35

A44010

INSERT

KIT - exhaust valve (Set of 2) (Replaces A57485)

3шт.

36

A41781

GUIDE

KIT - intake & exhaust (Set of 2)

6шт.

37

A42129

PACKAGE

VALVE KIT - intake (Set of 2)

3шт.

38

A427612

INSERT KIT - intake valve (Set of 2)

3шт.

39

A42895

SPRING

KIT - intake & exhaust valves (Set of 4)

3шт.

40

A44658

COIL

ROTO-CAP KIT - exhaust valve (Set of 2)

3шт.

41

A44645

KIT

RETAINER KIT - intake valve (2 ret. & 4 locks)

3шт.

42

A40352

LOCK

KIT - valve springs (Set of 8)

3шт.

45

A62734

CAMSHAFT

- engine

1шт.

46

A23544

BUSHING

KIT - camshaft (Set of 4), Includes: Ref. 47 - 49

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide0

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

49

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

50

A21017

WASHER

- camshaft thrust

1шт.

51

A58592

GEAR

- camshaft

1шт.

52

A58593

GEAR

- idler drive

1шт.

53

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" Hi-pro

1шт.

54

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

55

A58595

NUT

- camshaft

1шт.

56

A27853

SPRING

- plunger, camshaft thrust

1шт.

57

A27852

PLUNGER

- thrust, camshaft

1шт.
