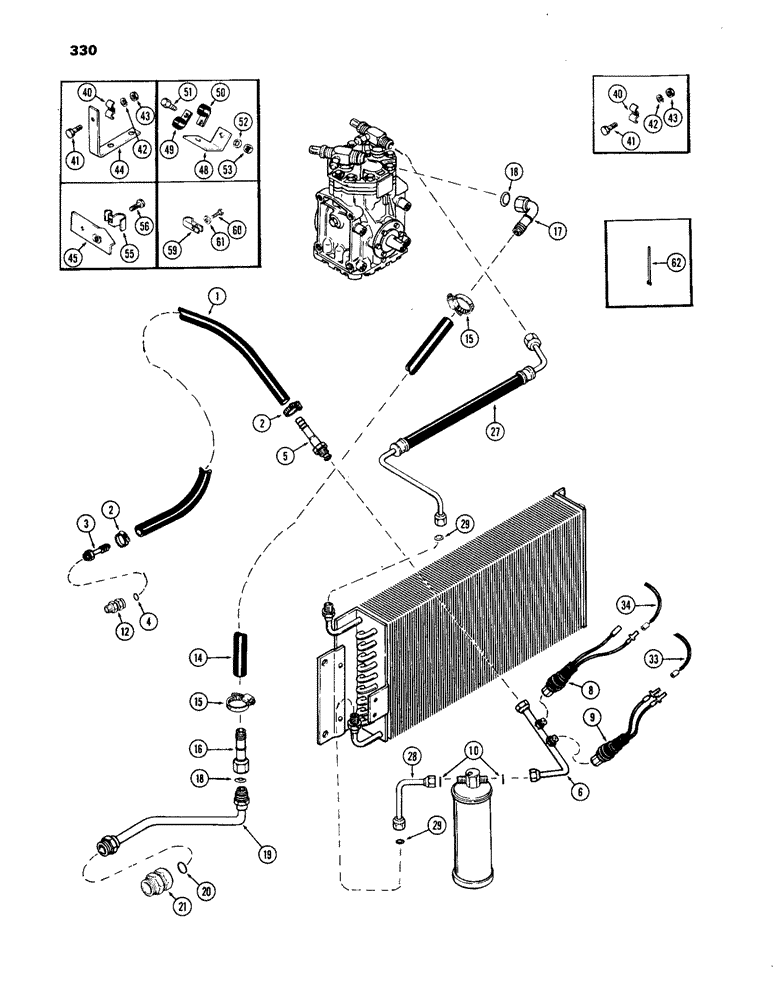

Запчасти Case IH 1270 (330) - AIR CONDITIONER, SAFETY SWITCH ATTACHMENT, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

A65772

SWITCH

KIT - tube, safety switch, Includes: Ref. 1 - 9

1шт.

1

A65802

HOSE

- cab to receiver drier (88-1/2" lg.)

1шт.

2

A65795

COLLAR CLAMP

CLAMP - hose (5/16" O.D. screw type)

2шт.

3

A65796

ADAPTER - quick connect, cab coupling

1шт.

4

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - coupling (23/64 x 1/2 x 1/16")

1шт.

5

A65793

FITTING - hose to receiver drier tube

1шт.

6

A65792

TUBE

- receiver drier & safety switch

1шт.

8

A65779

SWITCH

- high-pressure cut-out

1шт.

9

A65785

SWITCH

- low pressure cut-out

1шт.

10

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - receiver drier (5/16 x 7/16 x 1/16")

4шт.

12

A61196

COUPLING, BREAK AWAY

COUPLING ASSY. - tractor

1шт.

14

A65797

HOSE

- cab to compressor (62-5/8" lg.) (Replaces A65801)

1шт.

15

A65791

COLLAR CLAMP

CLAMP - hose (5/8" O.D. screw type)

2шт.

16

A65800

FITTING - hose, straight

1шт.

17

A65789

ELBOW - compressor hose

2шт.

18

222-995

SEALING WASHER,15.88mm ID

- flare, copper (5/8" O.D. tube)

2шт.

19

A65799

ADAPTER - cab coupling

1шт.

20

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - coupling (1-3/64 x 1-3/16 x 1/16")

1шт.

21

A61194

COUPLING, BREAK AWAY

COUPLING ASSY. - tractor

1шт.

27

A64151

HOSE

-, Serial Range: compressor-condenser

1шт.

28

A64150

TUBE

-, Serial Range: condenser-receiver

1шт.

29

222-993

GASKET,3/8 Tube, Fl, Copper

) 3/8 Tube, Fl, Copper

2шт.

33

A61755

ELECTRICAL WIRE

WIRE - low pressure switch to clutch (36" lg.)

1шт.

34

A42931

ELECTRICAL WIRE

WIRE - high pressure switch to cab (197" lg.)

1шт.

40

A65787

CLIP

- hose support

2шт.

41

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

44

A64154

BRACKET

- tube support

1шт.

45

A64397

BRACKET

- hose support

1шт.

48

A64398

BRACKET

- tube, Serial Range: support-cab

1шт.

49

49885

CLAMP

CLIP - tube (5/8")

1шт.

50

49845

CLAMP

CLIP - tube (3/8")

1шт.

51

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

55

A65786

CLIP

- hose & tube

1шт.

56

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

59

A7922

CLIP

- wire, safety switch

1шт.

60

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 7/8" N.C. hex.

1шт.

61

92-6

LOCK WASHER,3/8"

1шт.

62

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, Serial Range: wire-tube

4шт.
