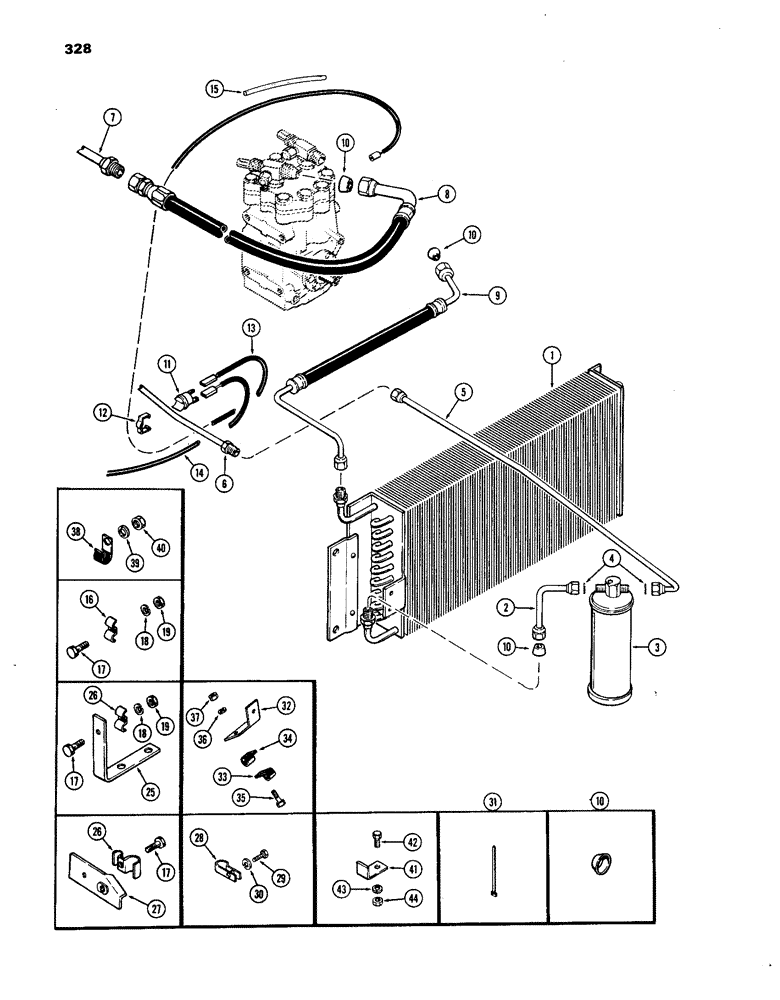

Запчасти Case IH 1270 (328) - AIR CONDITIONER, HOSES AND TUBES, USED PRIOR TO CAB SERIAL NUMBER 7817146 (09) - CHASSIS/ATTACHMENTS

1

A64149

COIL

- condenser

1шт.

2

A64150

TUBE

-, Serial Range: condenser-receiver

1шт.

3

A61688

TANK

RECEIVER - drier

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

2шт.

5

A64156

TUBE -, Serial Range: receiver-tube

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

6

A64152

TUBE - receiver, Serial Range: tube-coupling

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

7

A64399

TUBE - cab to compressor hose

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

8

A61207

HOSE

-, Serial Range: tube-compressor

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

9

A64151

HOSE

-, Serial Range: compressor-condenser

1шт.

10

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube)

1шт.

10

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube)

1шт.

11

A61291

THERMOSTAT

- high temperature

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

12

A61789

CLAMP

- thermostat

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

13

A61755

ELECTRICAL WIRE

WIRE - thermostat to compressor clutch

1шт.

A65772 kit is available to install safety switches and new hoses to replace thermostat control of compressor clutch see Fig. 330

1шт.

14

A42931

ELECTRICAL WIRE

WIRE - thermostat to cab harness

1шт.

15

A62053

HARNESS

LOOM - wire

1шт.

16

A61199

CLIP

- tube

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

25

A64154

BRACKET

- air cond. tube mtg.

1шт.

26

A61704

CLAMP - tubes

2шт.

27

A64397

BRACKET

- air cond. tube mtg.

1шт.

28

A7922

CLIP

- clutch lead wire

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wires to tubes & water trap, R.H.

4шт.

32

A64398

BRACKET

- air cond. tube mtg.

1шт.

33

NLS

NO LONGER SERVICED

CLIP - tube, 5/8"

1шт.

34

49845

CLAMP

CLIP - tube, 3/8"

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

38

A59718

CLAMP

CLIP - water trap tube, L.H.

1шт.

39

92-6

LOCK WASHER,3/8"

(attach to step bolt) 3/8"

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

- 3/8" N.C. hex. (attach to step bolt)

1шт.

41

F63376

BOX

CLIP - hose

1шт.

42

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.
