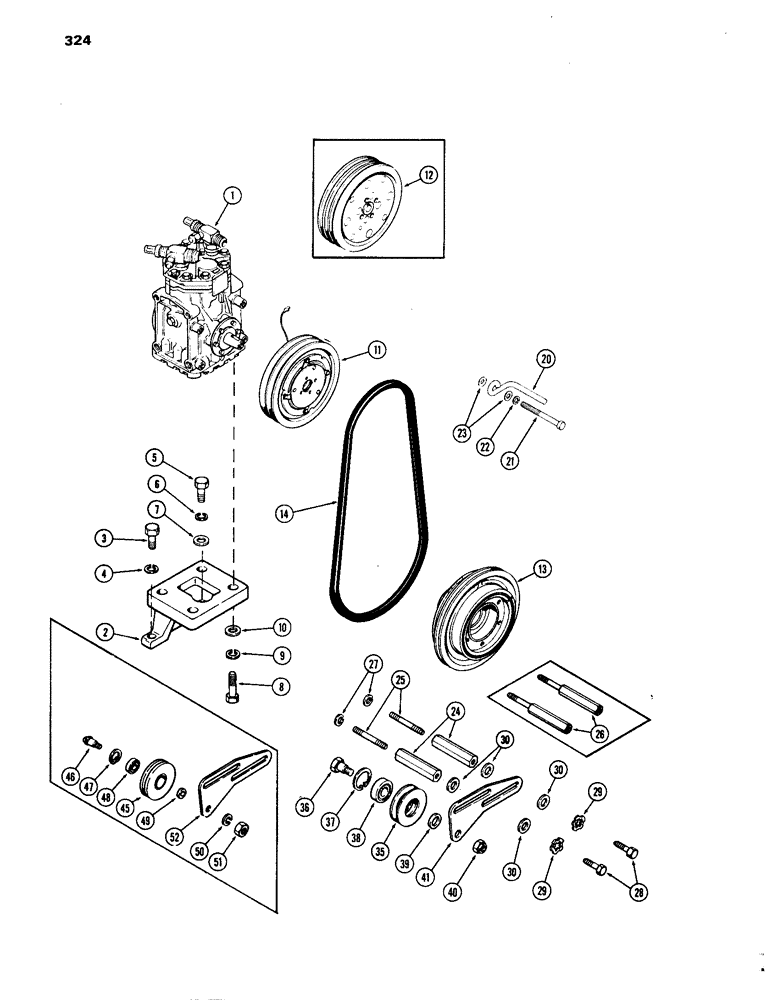

Запчасти Case IH 1270 (324) - AIR CONDITIONER, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

A64810

AIRCOND. COMPRESSOR

Assy, (York) (See Figure 332)

1шт.

2

A64147

BRACKET

Compressor Mounting

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

6

92-7

LOCK WASHER,7/16"

1шт.

7

195-2005

WASHER - 7/8 x 33/64 x 18 ga.

1шт.

7

A57090

WASHER

21/32" ID x 1-1/8" OD x 1/64" Thk

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

4шт.

11

A66057

CLUTCH

Compressor (Replaces A64955) (See Figure 334)

1шт.

12

A64956

CLUTCH

Compressor (Order A66057) (See Figure 334)

1шт.

13

A64106

CRANKSHAFT

Pulley Compressor Drive

1шт.

14

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive, 1/2"" W x 72.80" L

1шт.

Replaces P/N A62964, A65716

1шт.

A65719

KIT

Rub Bar, Drive Belt, Incl 20 - 23

1шт.

20

A65718

GUARD

Rub Bar Drive Belt Kit

1шт.

21

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Rub Bar Kit, 3/8" - 16 x 4" L, G5

1шт.

22

92-6

LOCK WASHER,3/8"

Rub Bar Kit

1шт.

23

95-6

WASHER,3/8"

Rub Bar Kit

2шт.

24

A65668

MOUNTING PARTS

Post Idler Plate & Pulley, Start Serial: 8711061

2шт.

Replaces A62970

1шт.

25

A65667

STUD

Idler & Pulley, Start Serial: 8711061

2шт.

26

A62970

POST

Idler Plate & Pulley

2шт.

Also Order P/N A65667, A65668

1шт.

27

92-6

LOCK WASHER,3/8"

Idler & Pulley

2шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Idler & Pulley

2шт.

29

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

Idler& Pulley

2шт.

30

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", idler & pulley

1шт.

35

A65780

PULLEY

Idler, Compressor Belt, Start Serial: 8707322

1шт.

36

A65782

PIN

Idler Pulley, Start Serial: 8707322

1шт.

37

T28736

SNAP RING,1.562", Int, #156

, Start Serial: 8707322

1шт.

38

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

Pulley, Start Serial: 8707322

1шт.

39

A65783

SPACER

Pulley, 43/64" ID x 29/32" OD x 3/16" Thk, Start Serial: 8707322

1шт.

40

131-1145

JAM NUT,5/8" - 18

Lock, Start Serial: 8707322

1шт.

41

A65784

PLATE

Idler Adjusting, Start Serial: 8707322

1шт.

45

A62964

PROTECTOR

Idler, Serial Range: -8707322

1шт.

46

A62967

PIN

Idler Pulley, 5/16", Serial Range: -8707322

1шт.

47

A62966

SNAP RING,1.02", Int, #102

Pulley Bearing, Serial Range: -8707322

1шт.

48

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

Idler Pulley, Serial Range: -8707322

1шт.

49

A62968

SPACER

Pulley, 13/32" ID x 5/8" OD x 1/4" Thk, Serial Range: -8707322

1шт.

50

192-110

LOCK WASHER,5/16"

, Serial Range: -8707322

1шт.

51

25-145

JAM NUT,Jam, 5/16"-18, G5

, Serial Range: -8707322

1шт.

52

A62969

LARGE PLATE

Adjusting, Serial Range: -8707322

1шт.
