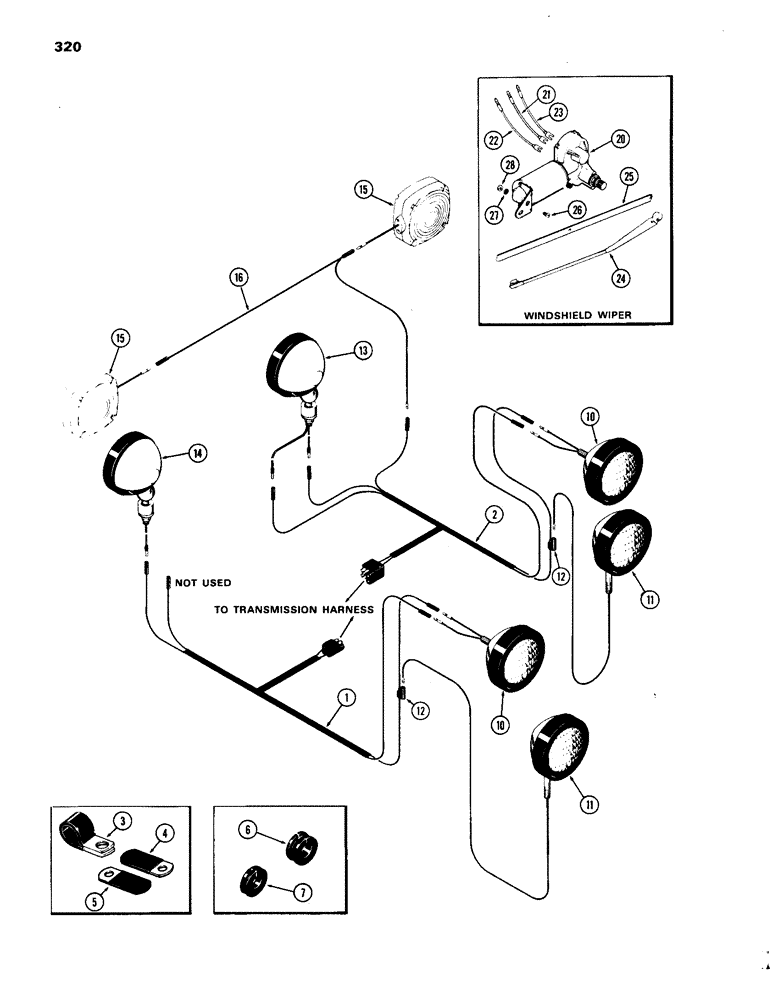

Запчасти Case IH 1270 (320) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS (09) - CHASSIS/ATTACHMENTS

1

A64006

HARNESS

- fender wire, R.H.

1шт.

2

A64007

HARNESS

- fender wire, L.H.

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

A22880

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A31076

GROMMET

- cab fender & frame (3/16" I.D.)

3шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- headlamp wires, cab front frame (1/4" I.D.)

2шт.

10

A64498

LAMP

- front head driving (See Figure 076)

2шт.

11

A59723

LAMP

- front cultivator (See Figure 078)

2шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR - splice, cultivating lamp

2шт.

13

A59703

LAMP

- rear flood & tail (See Figure 080)

1шт.

14

A63822

HEADLIGHT

LAMP - rear flood (See Figure 080)

1шт.

15

REF

INSTRUCTION

LAMP - flasher (See Figure 072)

2шт.

16

F63368

ELECTRICAL WIRE

WIRE -, Serial Range: flasher-harness

1шт.

A42692

MOTOR

ASSY. - windshield wiper, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

21

A42693

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

22

A42694

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

23

A42695

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

24

T41946

ARM

- windshield wiper

1шт.

25

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

26

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rd. hd. mach., windshield wiper

1шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Windshield wiper #10

1шт.

28

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex., windshield wiper

1шт.
