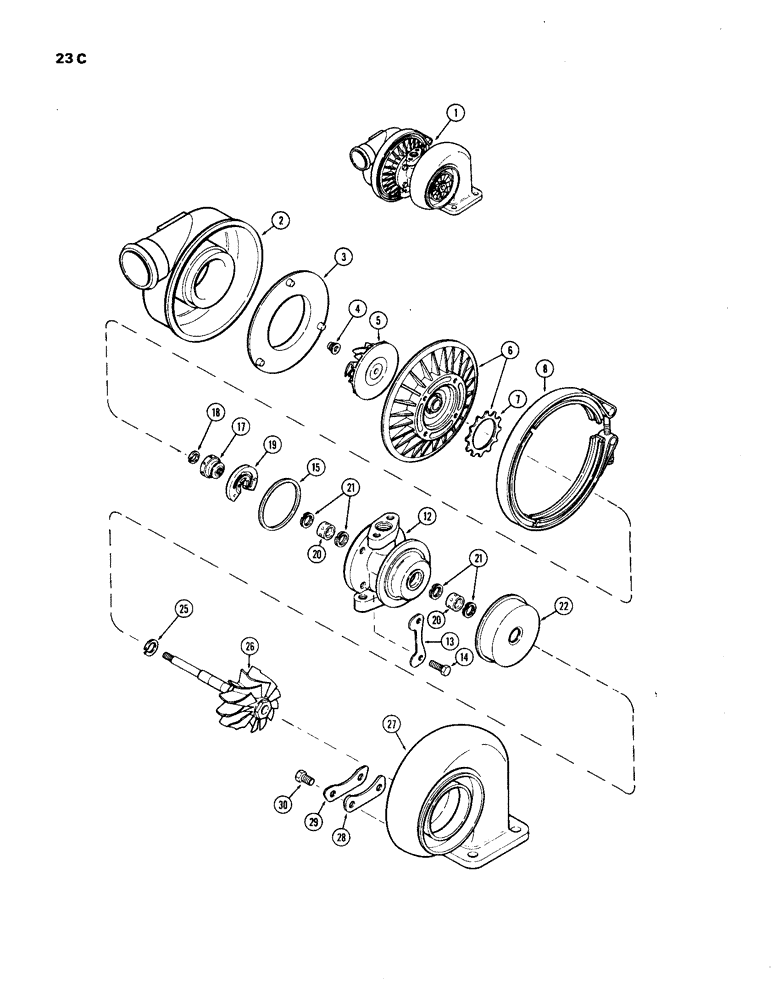

Запчасти Case IH 1270 (023C) - TURBO-CHARGER, 451 BDT, DIESEL ENGINE, MODEL TO4 WITH BACK PLATE BAND (02) - ENGINE

1

A61264

TURBOCHARGER

TURBO-CHARGER - original equipment (Order A44052 from Fig. 023A)

1шт.

A43360

TURBOCHARGER

TURBO-CHARGER - return number

1шт.

Part No. A44498 used only to return original equipment turbo for credit on rebuilt turbo

1шт.

1

A43361

REMAN-TURBOCHARGER

TURBO-CHARGER - rebuilt (Order A44052 Fig. 023A)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor wheel (Order ref. 2 thru 9 Fig. 23B)

1шт.

3

NSS

NOT SOLD SEPARAT

DIFFUSER - (Order ref. 2 thru 9 Fig. 23B)

1шт.

4

A44831

NUT

- lock, compressor wheel

1шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - compressor (Order ref. 2 thru 9 Fig. 23B)

1шт.

6

A44844

PLATE

ASSY. - back, compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

8

A44822

CLAMP

- band, Serial Range: backplate-housing

1шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- lock, center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, center housing

1шт.

17

A44830

COLLAR

- thrust

1шт.

18

A44828

RING

- piston (1/2" O.D.)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- center housing (Std.)

2шт.

20

A44849

BUSHING

BEARING - center housing (.005" undersize)

2шт.

20

A44850

BUSHING

BEARING - center housing (.010" undersize)

2шт.

21

A44827

RING

- snap, bearing retaining

4шт.

22

A44834

GUARD

SHROUD - wheel

1шт.

25

A44829

RING

- piston (23/32" O.D.)

1шт.

26

A44841

WHEEL

ASSY. - turbine

1шт.

27

A44846

HOUSING

- turbine

1шт.

28

A44838

CLAMP

- turbine housing

329шт.

29

A44839

PLATE

- lock, turbine housing bolt

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.
