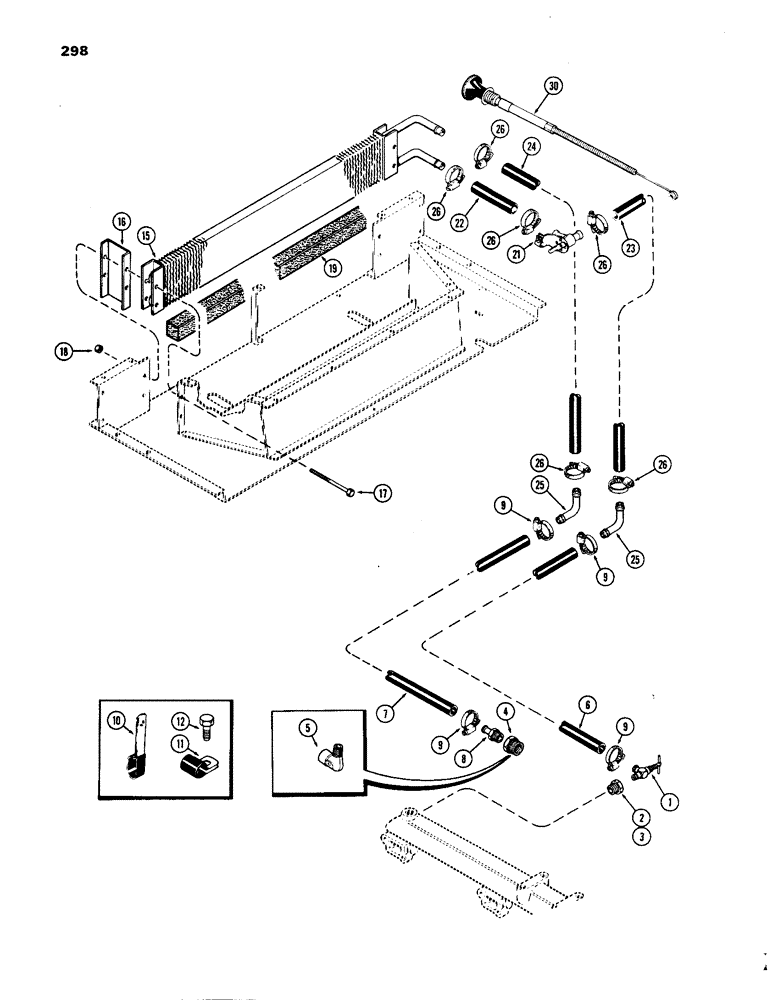

Запчасти Case IH 1270 (298) - CAB, HEATER, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A66077
ATTACHMENT - heater (Mach. Item), Includes: Ref. 1 - 30
1шт.
A60125
HEATER - attaching parts (Mach. Item)
1шт.
1
A16764
VALVE
- water manifold
1шт.
2
221-1059
BUSHING - reducing, 3/4 x 3/8" (at water manifold)
1шт.
3
221-1056
BUSHING
- reducing, (1/2 x 3/8" hex.) (Not Applicable)
1шт.
4
221-1060
REDUCER,Hex, 3/4" x 1/2" NPT
BUSHING - reducing (at water pump)
1шт.
5
221-414
FITTING,90 Degree, 1/2"-14, NPT
ELBOW - 90 deg. street (at water pump) (Not Applicable)
1шт.
6
NSS
NOT SOLD SEPARAT
HOSE - cab to water manifold (41") (Order A42610)
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE - cab to water pump (55") (Order A42610)
1шт.
A42610
LARGE HOSE
HOSE - heater (5/8" I.D. x 1" O.D., 50 ft)
1шт.
8
217-153
FITTING,5/8" Hose Barb x 1/2" Male NPTF
CONNECTOR - hose to water pump (5/8" I.D. x 1/2" P.T.)
1шт.
9
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose, 9/16 to 1-1/16"
4шт.
10
A60824
CLIP
- hose
1шт.
11
R14668
CLAMP
- hose (1 used on diesel)
2шт.
12
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
(w/gas only) (Not Applicable) Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
15
F63647
CORE
- heater
1шт.
16
F63748
BRACKET
FILLER - plenum, R.H. & L.H.
2шт.
17
113-45
BOLT,Hex, 1/4" - 20 x 5", Gr 5
- 1/2 x 5" N.C. hex.
4шт.
18
86625061
NUT,1/4"-20, GB
NUT - lock, 1/4" N.C. Esna
4шт.
19
F63756
FILLING STRIP
FOAM - filler (1-1/2" sq. x 3" lg.)
1шт.
21
F63865
VALVE
- heater
1шт.
22
NSS
NOT SOLD SEPARAT
HOSE - heater (6-3/4" lg.) (Order A42610)
1шт.
23
NSS
NOT SOLD SEPARAT
HOSE - heater inlet (red 69-1/2") (Order A42610)
1шт.
24
NSS
NOT SOLD SEPARAT
HOSE - heater outlet (black 75-1/2") (Order A42610)
1шт.
A42610
LARGE HOSE
HOSE - heater (5/8" I.D. x 1" O.D., 50 ft)
1шт.
25
A60823
ELBOW
- hose
2шт.
26
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose, 9/16 to 1-1/16"
6шт.
30
A42614
CABLE
- valve control (See Figure 312)
1шт.
Выбрано товаров: 28
