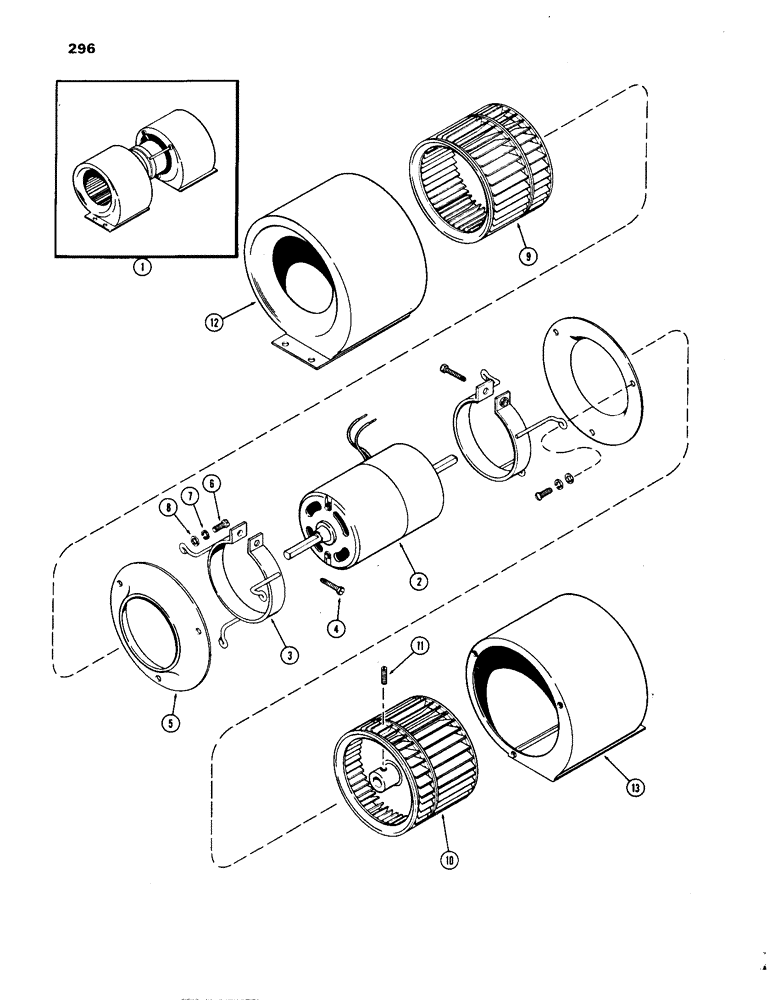

Запчасти Case IH 1270 (296) - CAB, BLOWER, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air, Includes: Ref. 2 - 13

1шт.

2

A42567

MOTOR

- blower (Order F89750)

1шт.

3

A42570

RUBBER MOUNTING

MOUNTS - motor

2шт.

4

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - 1/4" hex. hd., self-tapping

2шт.

5

A42511

BLOCK

PLATE - cover

2шт.

6

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rd. hd. mach.

6шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

8

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

6шт.

9

A42568

WHEEL

- blower, R.H.

1шт.

10

A42569

BLOWER,Fan, RH

- blower, L.H.

1шт.

11

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW - 1/4" N.F. hex. sckt. cup pt. headless set

2шт.

12

A42584

HOUSING

- blower, R.H.

1шт.

13

A42585

HOUSING

- blower, L.H.

1шт.
