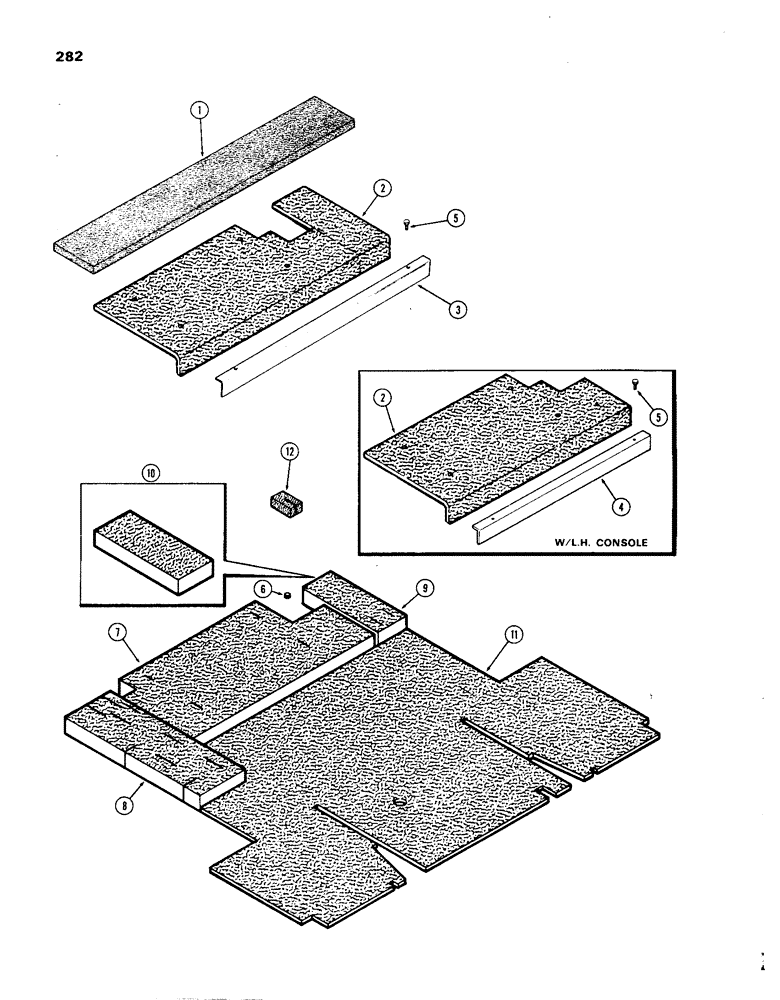

Запчасти Case IH 1270 (282) - CAB, PLATFORM INSULATION (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

- fuel tank sealing

1шт.

To be attached with adhesive 345-22

1шт.

2

A64992

MAT

- floor, rear (used w/ & w/o L.H. console)

1шт.

To be attached with adhesive 345-22

1шт.

3

A62461

FLOOR

ANGLE - floormat retaining (w/o L.H. console) (30-55/64" lg.)

1шт.

4

A64146

BRACKET

ANGLE - floormat retaining (w/L.H. console) (26" long)

1шт.

5

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill & tap

2шт.

6

A60818

GROMMET

- hand brake wire

1шт.

7

A64140

FOAM

- seat support, standard

1шт.

To be attached with adhesive 345-22

1шт.

8

A64138

FOAM

- sealing, console bottom R.H.

1шт.

To be attached with adhesive 345-22

1шт.

9

A64139

FOAM

- sealing, console bottom L.H.

1шт.

To be attached with adhesive 345-22

1шт.

10

A64141

FOAM

- seat support (w/o L.H. console)

1шт.

To be attached with adhesive 345-22

1шт.

11

A64142

MAT

- floor, front

1шт.

12

A60819

FOAM

- sealing, hand brake

1шт.

To be attached with adhesive 345-22

1шт.
