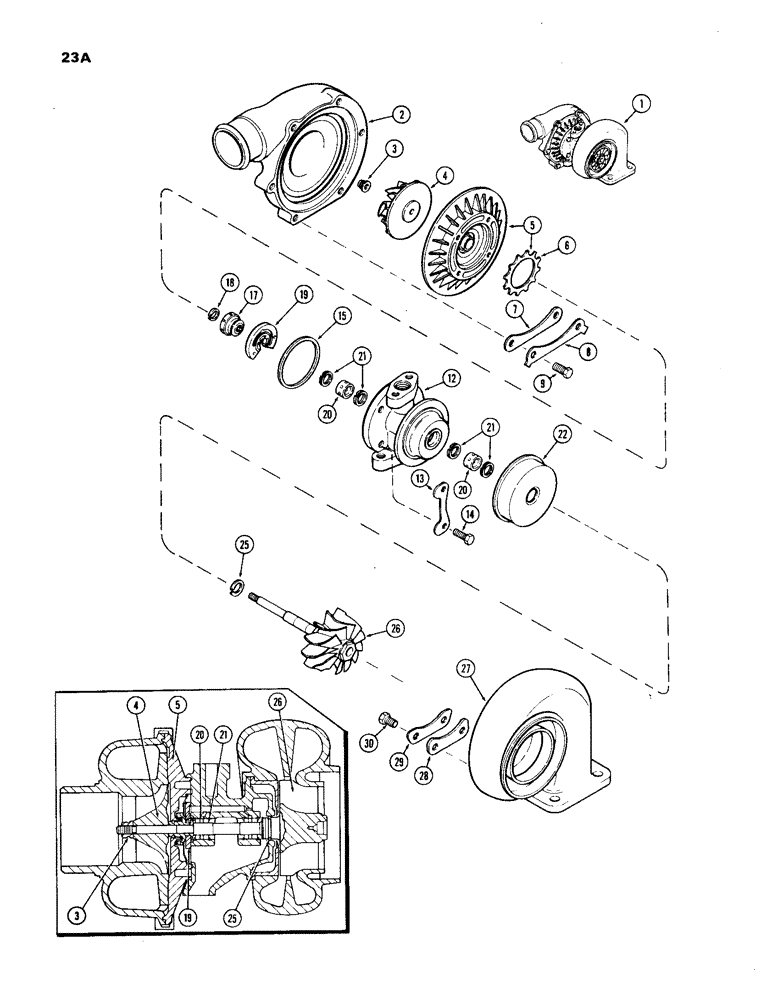

Запчасти Case IH 1270 (023A) - TURBO-CHARGER, 451 BDT, DIESEL ENGINE, MODEL TO4B WITH BACK PLATE CLAMPS (02) - ENGINE

1

A66770

NO LONGER SERVICED

TURBO-CHARGER - original equipment (Order A44052), Includes: Ref. 2 - 30

1шт.

A44051

CORE-TURBOCHARGER

TURBO-CHARGER - return number, Includes: Ref. 2 - 30

1шт.

Part No. A44498 used only to return original equipment turbo for credit on rebuilt turbo

1шт.

1

A44052

TURBOCHARGER

TURBO-CHARGER - rebuilt, Includes: Ref. 2 - 30

1шт.

1

A48190

REMAN-TURBOCHARGER

1270 Prior To SN 8736001, Reman For New P/N A44052

1шт.

1

A48189

CORE-TURBOCHARGER

Return Number

1шт.

2

A44848

HOUSING

HOUSING - compressor wheel

1шт.

3

A44831

NUT

NUT - lock, compressor wheel

1шт.

4

A44847

IMPELLER

WHEEL - compressor

1шт.

5

A44836

LARGE PLATE

PLATE, LARGE PLATE ASSY. - back, compressor, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44823

CLAMP

CLAMP -, Serial Range: backplate-housing

3шт.

8

A44824

PLATE

PLATE - lock, clamp bolt

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

12

A44825

HOUSING

HOUSING - center

1шт.

13

A44820

PLATE

PLATE - lock, center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

RING - seal, center housing

1шт.

17

A44830

COLLAR

COLLAR - thrust

1шт.

18

A44828

RING

RING - piston (1/2" O.D.)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

BEARING - center housing (Std.)

2шт.

20

A44849

BUSHING

BEARING - center housing (.005" undersize)

2шт.

20

A44850

BUSHING

BEARING - center housing (.010" undersize)

2шт.

21

A44827

RING

RING - snap, bearing retaining

4шт.

22

A44834

GUARD

SHROUD - wheel

1шт.

25

A44829

RING

RING - piston (23/32" O.D.)

1шт.

26

A44841

WHEEL

WHEEL ASSY. - turbine

1шт.

27

A44846

HOUSING

HOUSING - turbine

1шт.

28

A44838

CLAMP

CLAMP - turbine housing

3шт.

29

A44839

PLATE

PLATE - lock, turbine housing bolt

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.
